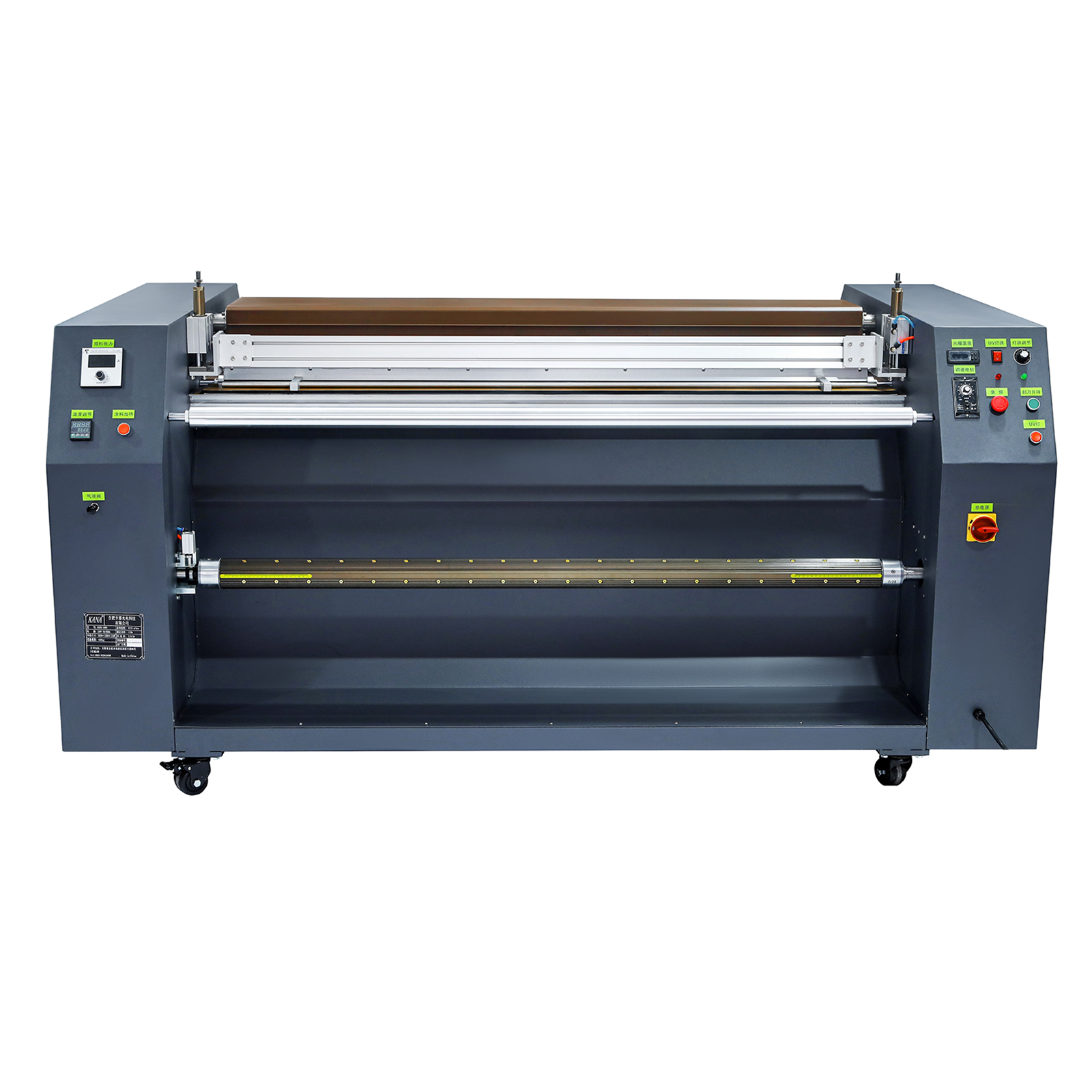

1.65m Liquid Laminating Machine Suitable for Tarpaulin/Advertising Materials(Economy Type)

Advantages of UV Curable Liquid Coating:
Low cost
- Varnish comsumption: 5-8g/m²
- Low electric comsuption 5kw
- UV lamp 15000 hours life span

Good ductility
soft & tough, easy application to advertising vehicle wraps and other roll material

Eco-friendly
- no VOCs (Valatile Organic Chemicals)
- no white pollution caused by PVC film

No Odor
Only a little smell of epoxy resin.
Coating layer covers the odor of glue and solvent  ink thouroughly

Physical advantages
- adjustable glossiness: max 90°-92°
- scratch resistant : 2000 times rubbing test
- chemical resistant :20 times alcohol wipe
- excellent adhesion: never pulled off
- waterproof :resistant to pouring rain

High yield rates
1-12 m/min coating speed
UV instant curing reduce production downtime

Low scrap rates
- no format limitation on liquid coating film
- no leading and ending substrate waste

High temperature resistant
no qualkity change under 48 hours heat tolerance test at +68℃

Low temperature resistant
no qualkity change under 48 hours cold tolerance test at -20℃

No Hazards
Passing SGS test of EU Restriction of Hazardous Substances

Durabiliy
500 hours SGS ageing test

Long storage time
1 year at room temperature if not exposed under UV curing light

Specification:

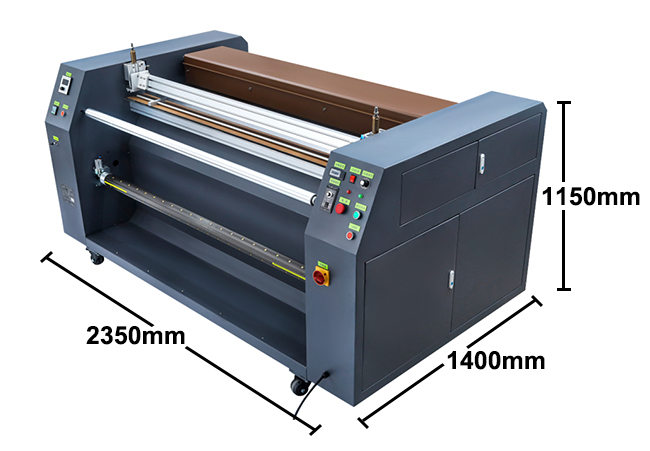

Product size:
Test of liquid coating
Detected by photometer: liquid coating brightness is as high as 91.2°

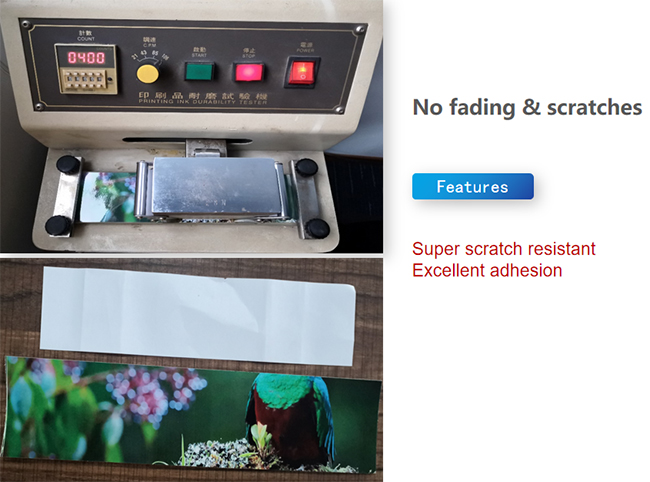

Abrasion test:
The test method is rubbing back and forth 2000 times with a weight of 4 pounds/1.8kg to observe the scratch resistance strength of the liquid coating
Common problems of cold laminating film

- Large loss and high scrap rate
During production, due to the various size of the substrate, and the inconvenience of sticking,  the large amount of waste are generated during film coating, and the scrap rate is high as 15%.

  - Inconvenient sticking, strong smell

The poor ductility of the cold laminating film leads to inconvenience and difficulty in application. Inkjet printing inks and adhesive materials have a heavy odor, and the odor is difficult to volatilize in a confined space.

- Crimped edges, black edges, wrinkles, bubbles
The film may easily peel off above +40°C and will easily break below -5°C. Curling, shrinkage, breakage, bubbles and wrinkles happen easily after a short period of time.

Material that cannot be coated by cold laminating film
UV picture, leather, tablecloth, knife scraping cloth, wallpaper, wood grain paper, etc. the surface cannot be protected by cold laminating film from color ink fixation and anti-scratch tratment, After a period of time, the picture will be decolorized and the texture is poor.

Liquid coating replace cold laminating film

What is liquid coating ?

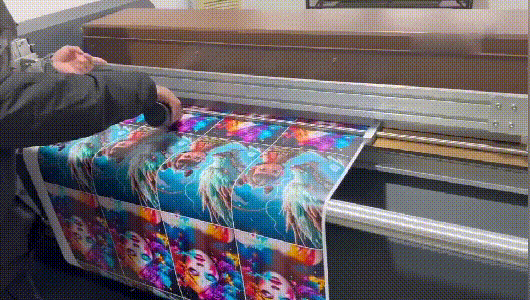

- Liquid coating cured instantly by Kana LED UV instant curing coating machine forms a glossy or matte protective film on the surface of soft roll inkjet printing product.

- Coating is high temperature and low temperature resistant (-20°C to 68 °C), anti-yellowing, anti-fracture, scratch-resistant, friction-resistant, environmental friendly, pollution free, safe and energy saving(5kw).

- Under real outdoor test, Kana coating can enduring at least 2 years of sun burning, UV light, water pouring.

Physical characteristics of liquid coating
Due to the limitation of the cold laminating film, micro-bubbles (marked in red) are prone to appear on the surface of the product, and the surface of the liquid coating is flat without defects.
