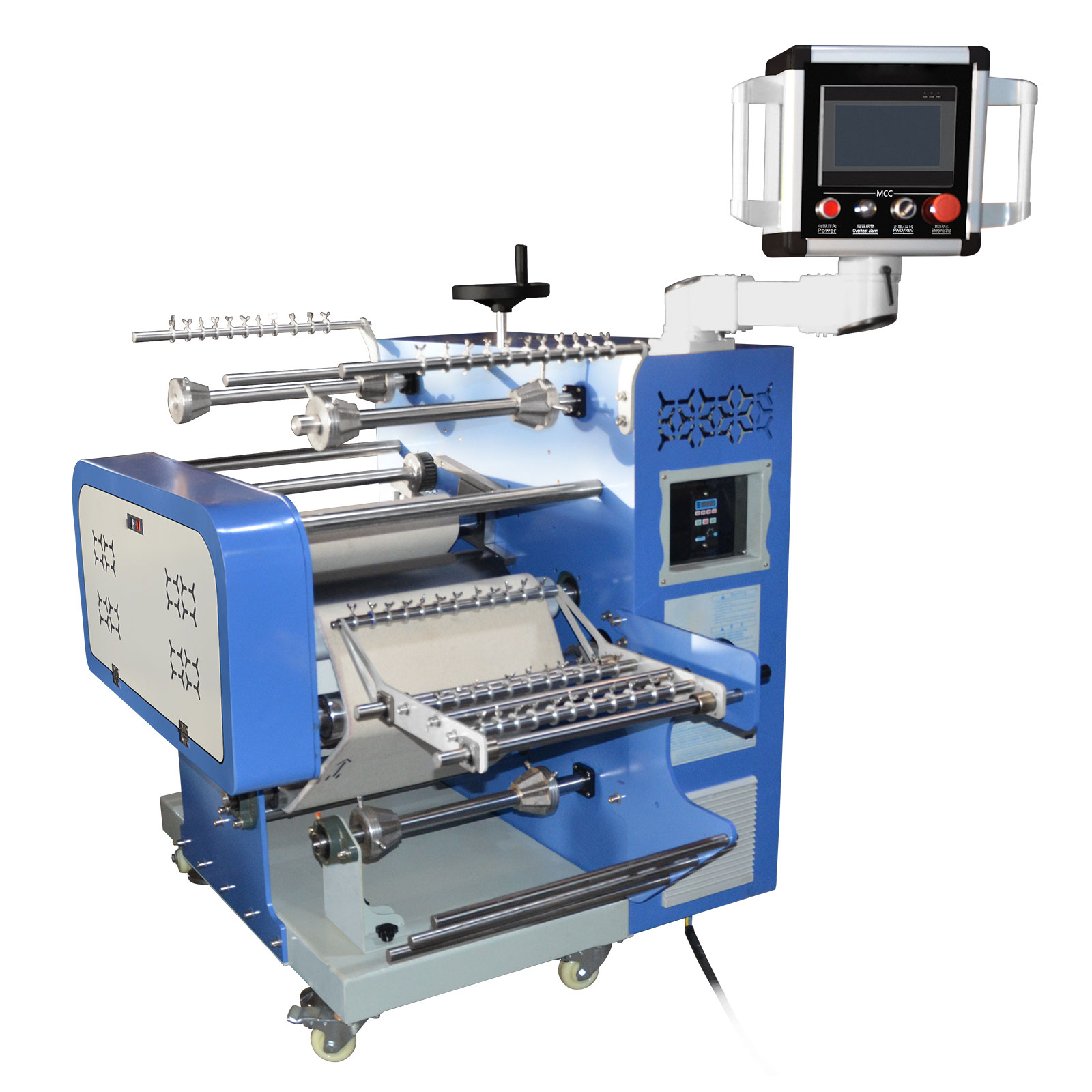

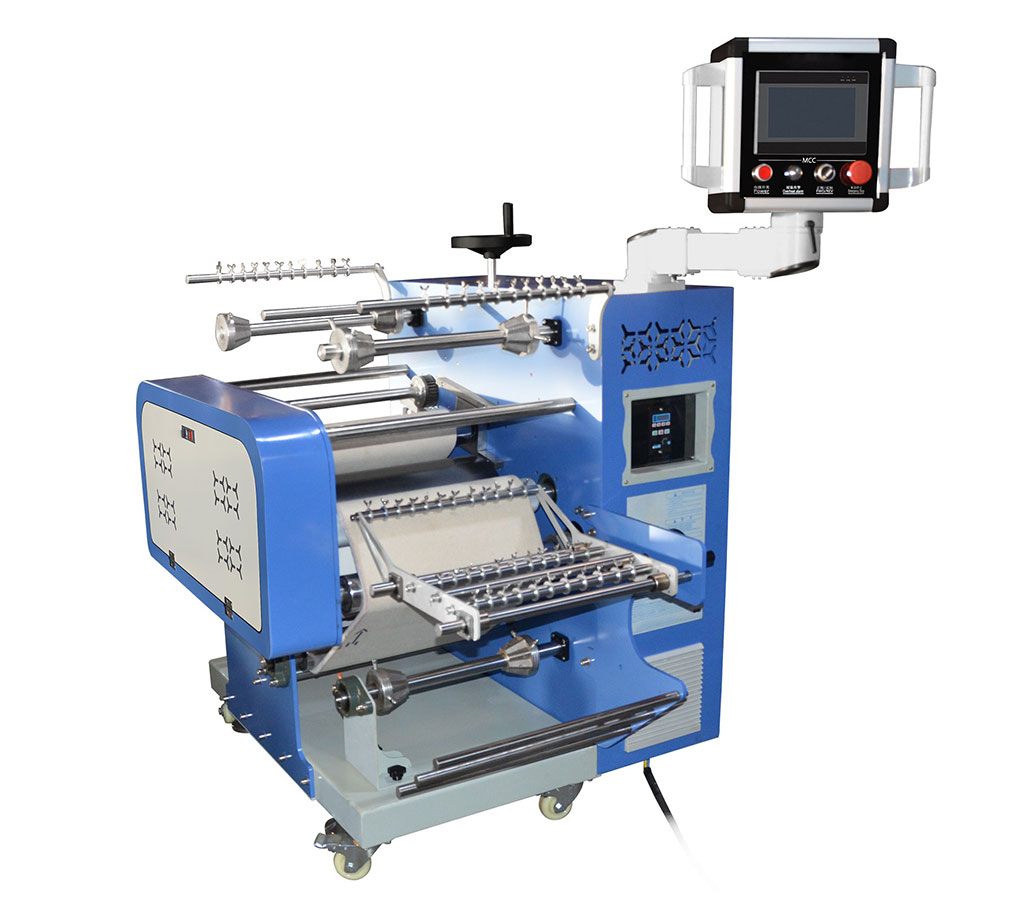

Mini Roller Type Webbing Double-Sided Heat Transfer Printing Machine

Specifications:
Power: 5kw
Voltage: 220V
Working pressure: 0 ~ 8 kg/cm2
Temperature range: 0 ~ 250 ℃
Temperature compensation: -30 ~ 30 ℃
Shutdown temperature:90 ~ 40℃
Electric machinery motor: 2.2KW-4-B5
Dimension: 36.2in x 41.0in x 43.7in (92cm x 104cm x 111cm)
Net weight:959.0lbs(435kg)
Packing Size: 53.1in x 43.0in x 54.0in(135cm x 109cm x 137cm)
Gross Weight: 1135.4lbs(515kg)

Features:
1.This machine is suitable for printing on all kinds of headbands, horse racing belts, special belts, clothing belts and shoelaces. It is not affected by the thickness and width of the webbing during production, and can also be pressed and leveled for various webbings.
2.Equipped with synchronous mixing shaft, the unique positioning system product does not shift, does not show white, and can transfer multiple products at the same time.
3.The double-sided positioning table can easily realize the double-sided transfer of the webbing, and the pattern alignment on both sides is accurate and error-free.
4.Using advanced oil temperature heating technology, no cooling machine is required, and the blanket and the drum can be separated unattended independently.
5.320-degree rotatable PLC programming touch control LCD screen, Chinese and English keys. Easy to operate and powerful.

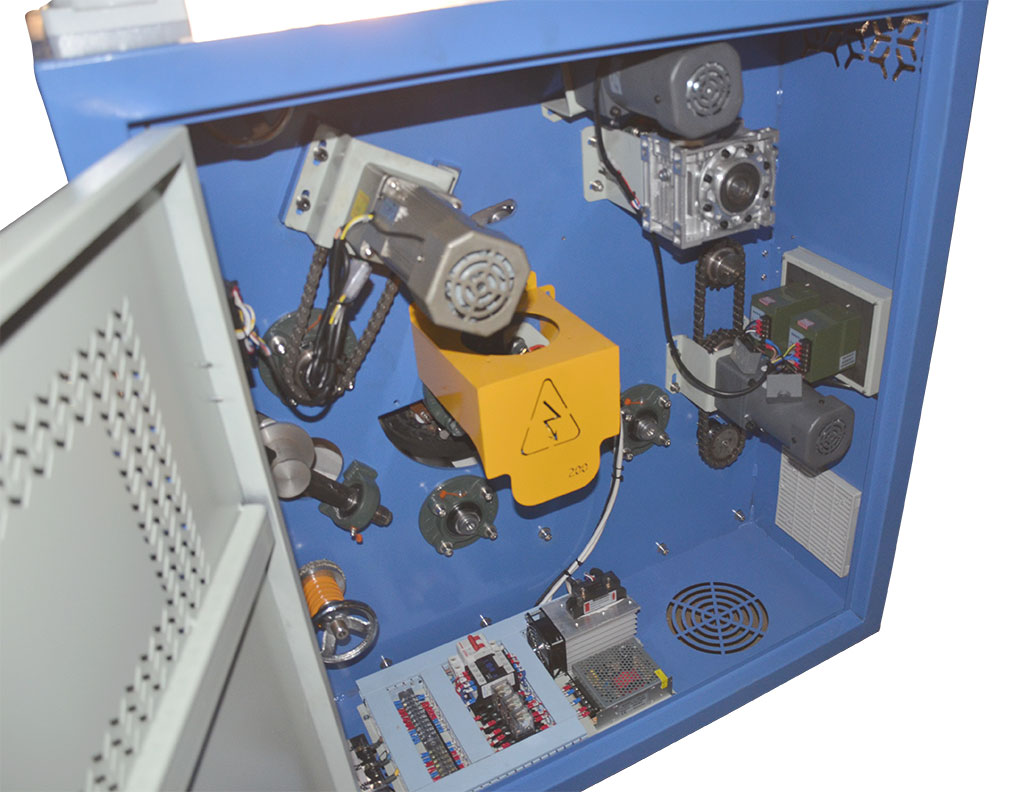

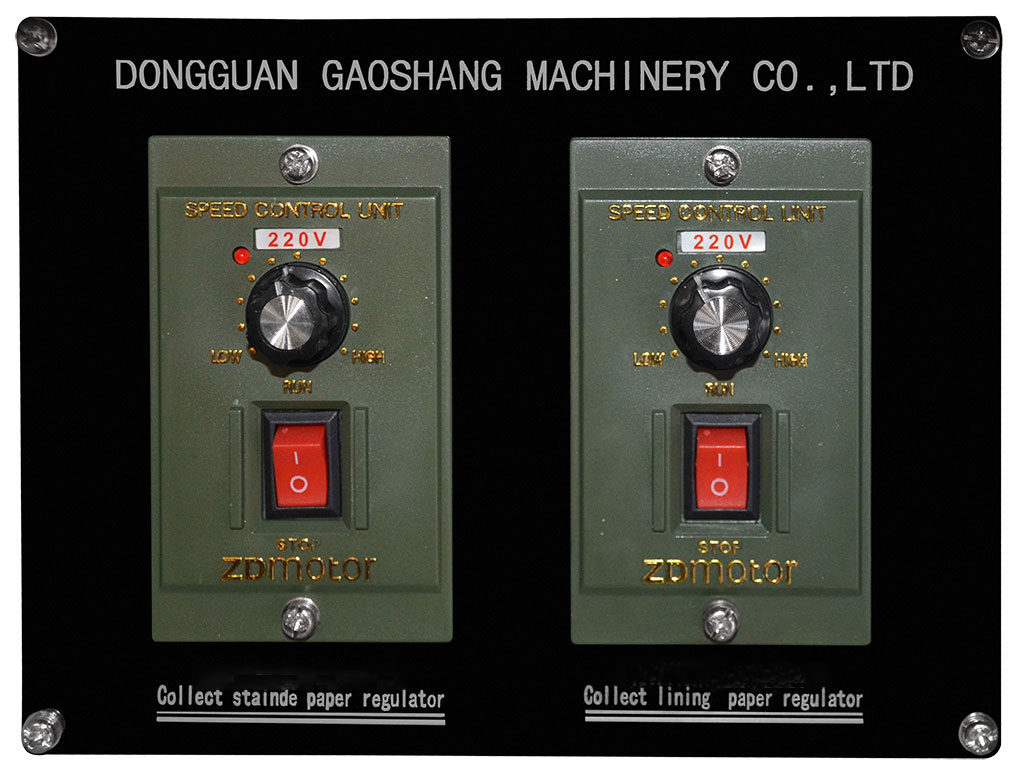

Details:
