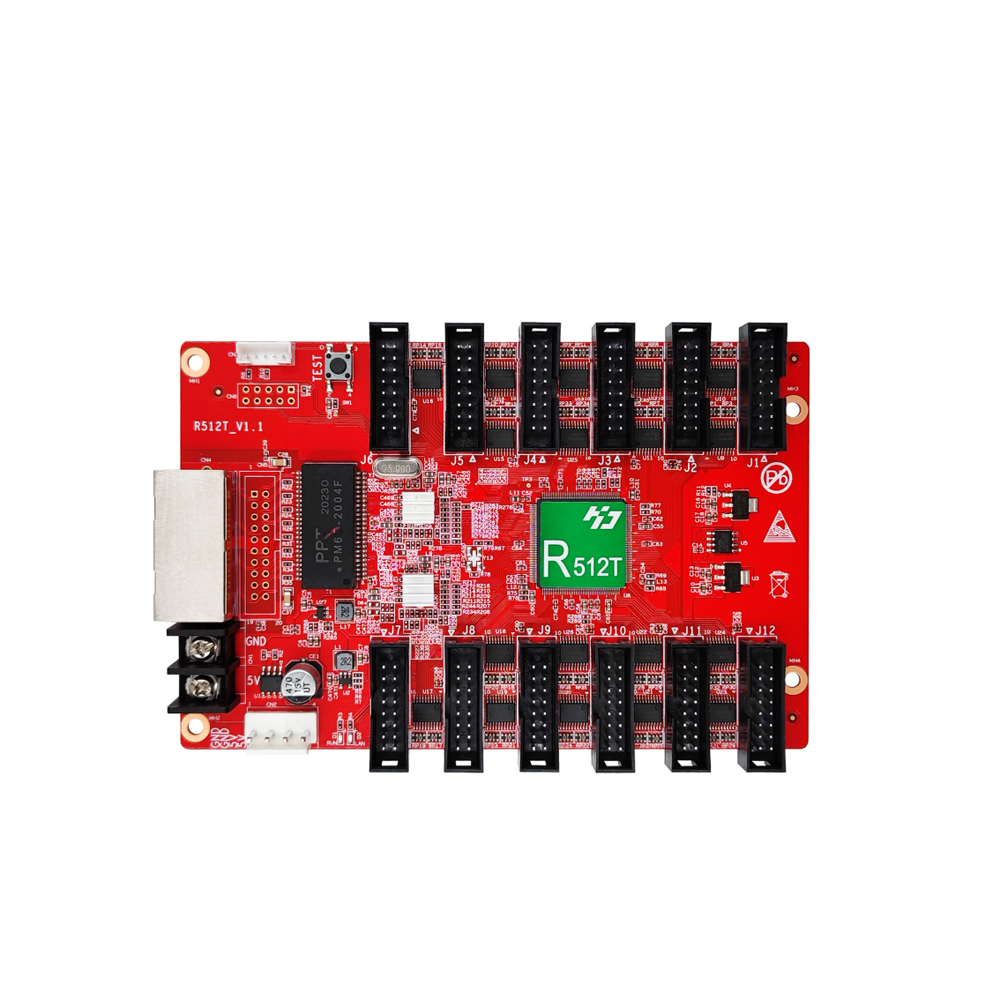

HD-R512T is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, come with 12 lines HUB75E port.
Features
1.Integrated with 12 lines HUB75E port
2.Support regular chips and PWM chips
3.Support static module, any scan mode within 2~64 scan
4.Support data group exchange and data group offset setting
5.Smart settings, draw points, trace points, etc.
6.Support multi-card cascade, arbitrary order
7.Recommended loading range: 256*512/ 128*768
R512T, upgraded version of R512, on-board 12*HUB75E ports, compatible with R500/R501/R5018/R508/R516/R612.

Connection method:
Connection diagram of connecting R512 with player A6:

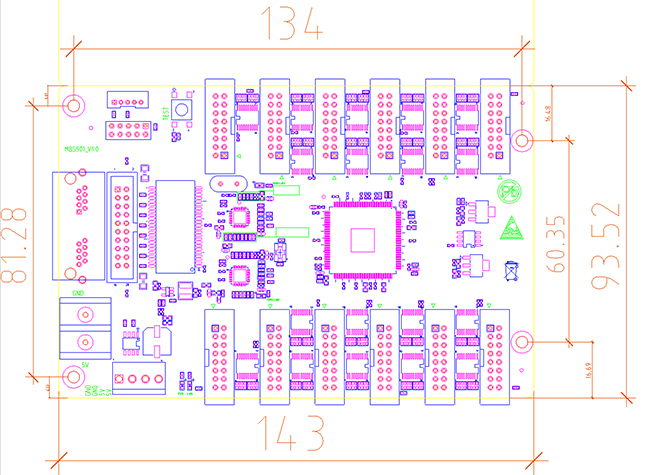

Dimensions

Interface definition

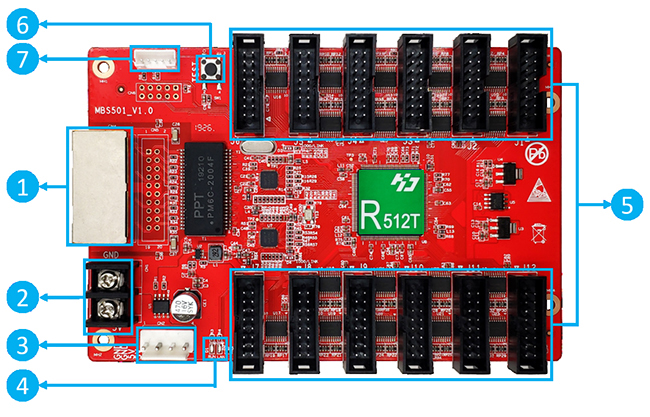

Appearance Description

1. Gigabit Ethernet port, used to connect the sending card or receiving card, the same two network ports are interchangeable.
2. Power interface, can be accessed with 4.5V ~ 5.5V DC voltage；
3. Power interface, can be accessed with 4.5V ~ 5.5V DC voltage；
(2, 3 connect one of them is ok.)
4. Work indicator, D1 flashes to indicate that the control card is running normally; D2 flashes quickly to indicate that Gigabit has been recognized and data is being received.
5.  HUB75Eport, connect to the modules,
6. Test button,used to test display brightness uniformity and display module flatness.
7. External indicator light, run light and data light.

Precautions
1）ensure the system long-term stable running, please keep to use the standard.
