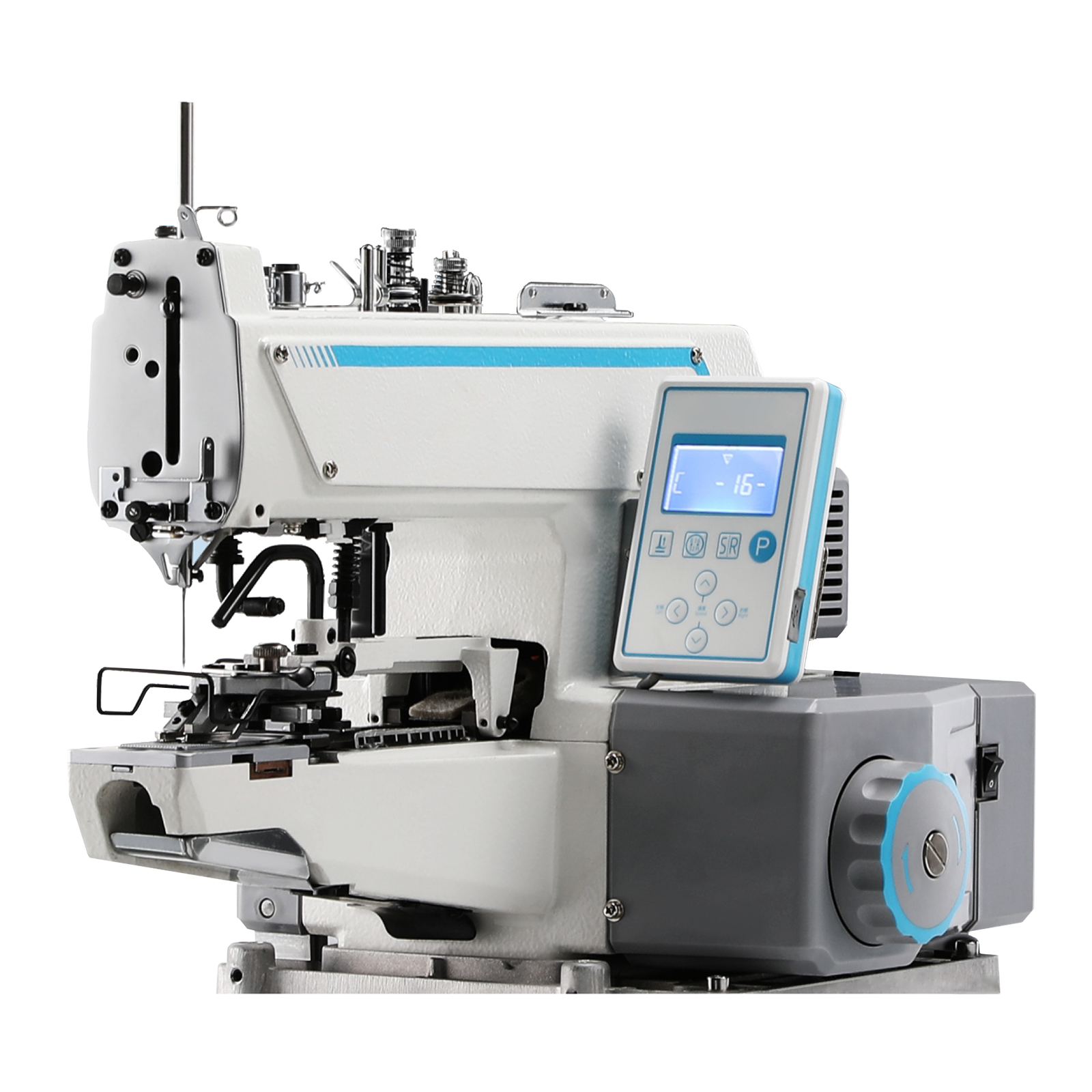

JACK JK1377G Electromechanical Integrated Button Attaching Machine

Features:
- Stepping motor, easy to operate.
- Easy to learn and use, better performance.
- A variety of automatic button device optional.

Description:
Electromechanical integrated button attaching machine, german industrial desian, inheritsthe genes of jack family DNA, with blue strip outlook, beautiful and unique. The stepping motorcontrolled presser foot lifting and thread trimmer, low voice and high efficiency. The number of stitchescan be switched by one key, simple and easy to learn. Suitable for sewing thin and medium-thickmaterials such as shirts,coats, and work clothes.

Details:

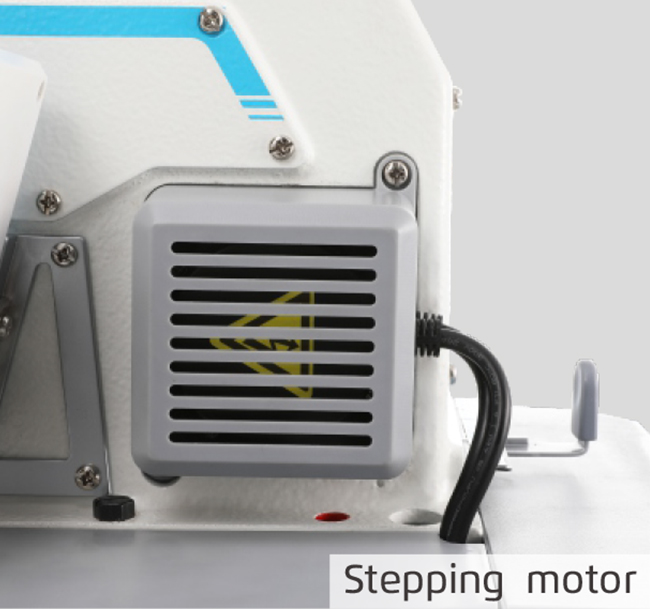

Stepping motor, easy to operate
Jack's patent technology of stepping motor driving presser foot lifting and thread trimmer, adopts closed-loop control
system, make it precise control and convenient adiustment, with needle protection function to prevent needle breakage

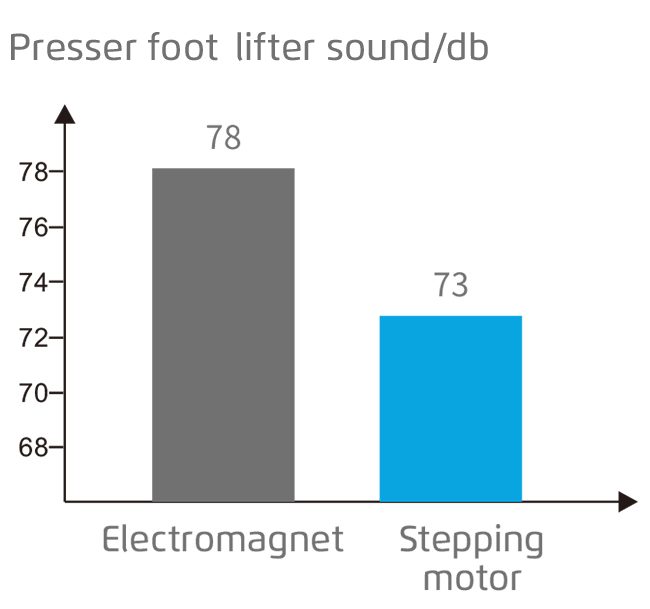

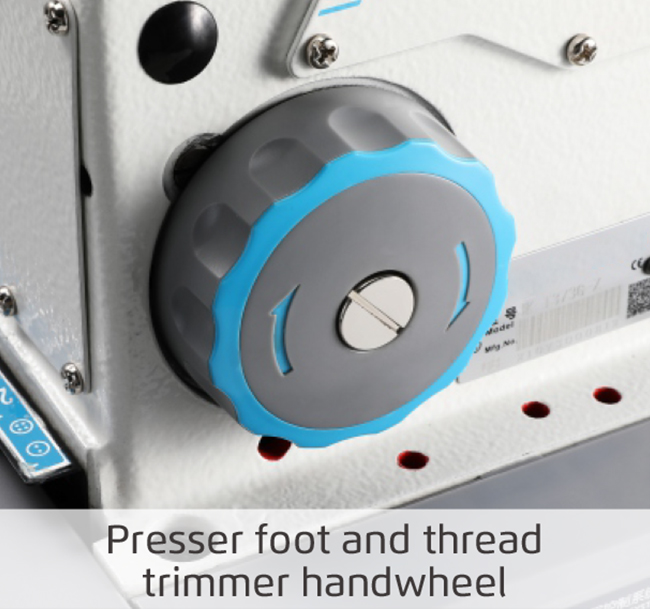

the presser foot lifting sound is 3.5 decibels lighter than ordinary electromagnets, which solves the problem of electromagnet's weakness and durability, faster response and higher efficiency; the presser foot can also be lifted by hand-wheel in the power-off state, which is easy to adjust.

Easy to learn and use, better performance

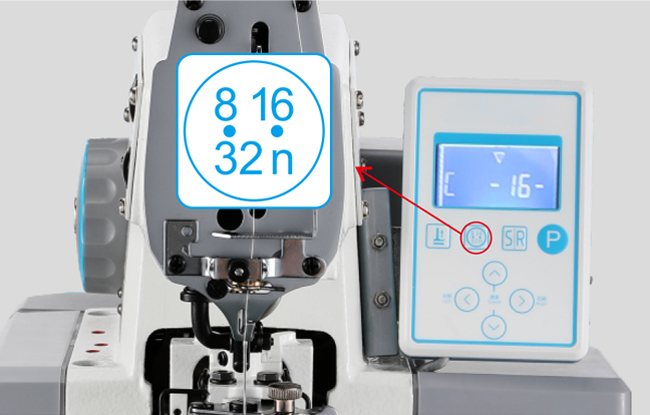

The pattern and the number of stitches can be switched by one key, and the number of sewing stitches can be set freely by long pressing the stitch number key; through the parameter setting, the counting functioncan be added, convenient to calculate the output and salary.

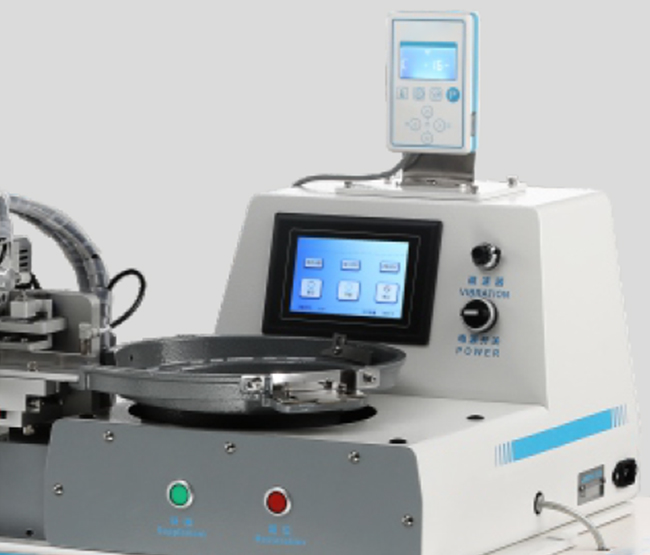

A variety of automatic button device optional
It can be adapted to various types of automatic button feeding devices (standard 16-bend large plate) to meet the special reguirements of more customers for automatic buttoning.

Technical parameters:
Needle No.: TQx1 16#
Needle qty: 1
Thread: 1
Button diameter: 10-28
Button size: X(2.5~4.5mm) Y(0,2.5-4.5mm)
Automati thread trimming: YES
Automatic presser foot lift: YES
Pressel foot height: 10
Max.rpm: 1500
Volume: 630x470x440mm
Weight: 40kg
