Код товара:SIT-DX-EGP-01
450mm/460mm/490mm Automatic Electric Guillotine Paper Cutter
Advantage:

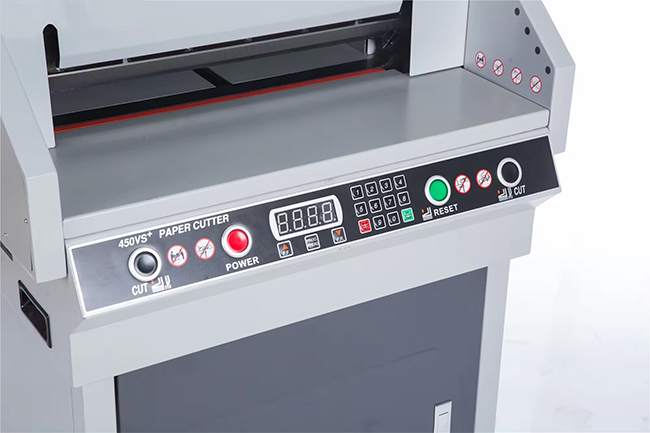

1.Intelligent LCD Display
G450 uses an LCD display with smart control and digital operation.

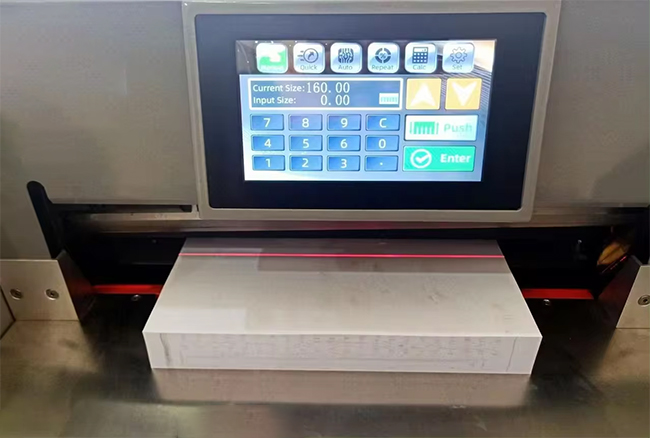

E460/E490 wiht a 7-inch touchscreen.Offering three different operating modes: manual, equal division, and programmable, meeting daily work requirements with easy switching and simple operation.

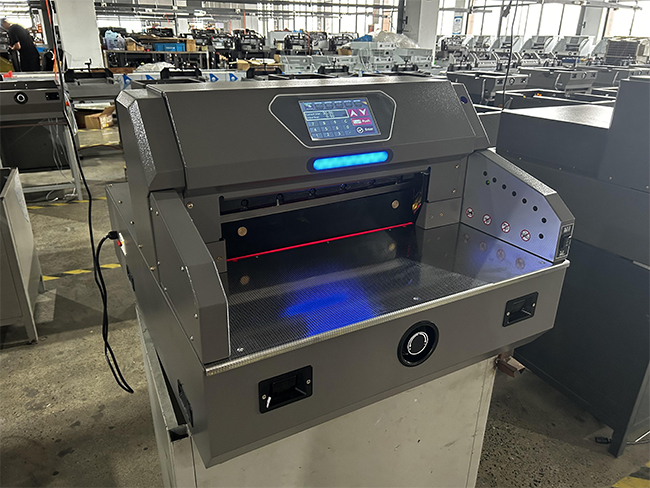

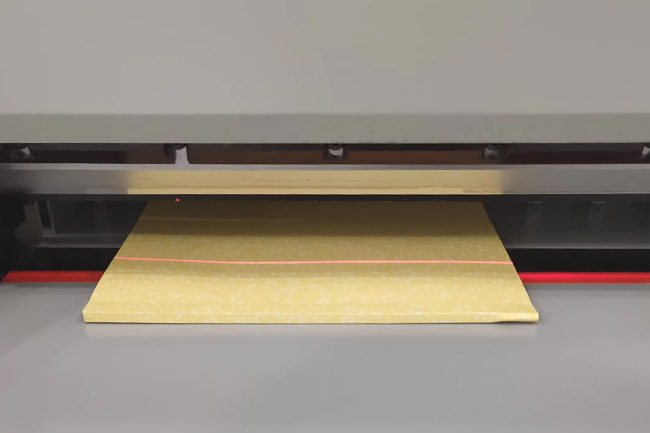

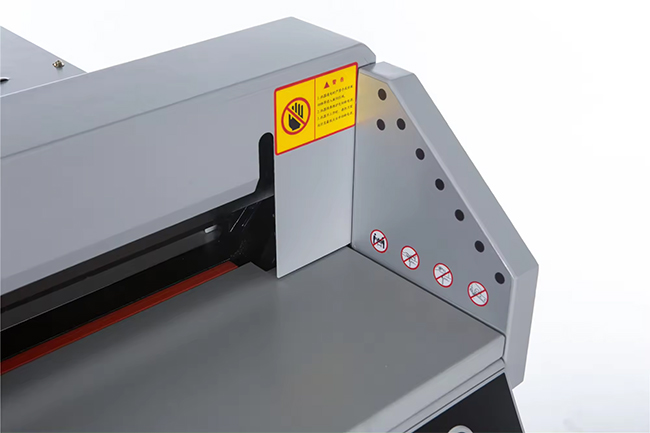

2.Infrared Light Positioning(G450/E460/E490 )
Infrared light positioning makes the paper cutting more intuitive and accurate.
The enclosed infrared light fence ensures safe and reliable operation.

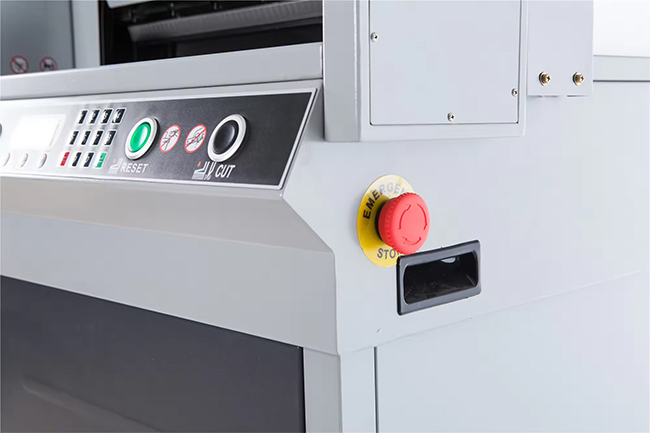

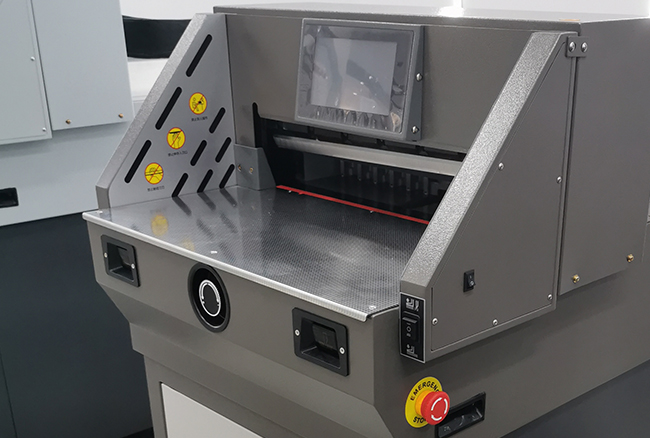

3.Emergency Switch Button(G450/E460/E490 )
In case of danger and emergency, the paper slicer can be stopped immediately, making the operation safer and more reliable.
4.Sharp Beveled Steel Knife(G450/E460/E490 )
The design of the beveled steel knife is more suitable for cutting thick layers of paper. The high-quality steel knife is sharp and durable, providing a better paper cutting effect.
5.Large Locker(G450/E460/E490 )
The enlarged locker can store materials and sundries for daily use and is very convenient.
6.Blade depth adjustment function(E460/E490)
This machine features a unique blade depth adjustment function, eliminating the need for disassembly—blade depth can be easily adjusted externally, making the operation more convenient.
7.Top-suspened ball screw paper pushing structur(E460/E490)
The paper pushing platform is designed without grooves, combined with the top-suspended screw paper pushing technology, achieving a more stable and smooth paper pushing operation.
This innovative design not only enhances the stability of the machine but also significantly improves the precision of the cutting process, ensuring accurate cutting results.
8.Precison gear-driven paper cutting motor(E460/E490)
This system not only ensures stability and reliability during operation but also greatly reduces the noise generated while the machine is running.
This type of motor operates at a very fast speed, robustly supporting the efficient execution of the cutting process.
9.Thickend cast machine frame structure(E460/E490)
Thickened frame design and precision machining ensure cutting accuracy meets professional standards and provides outstanding durability.
Specification:
Model | FN-G450V | FN-E460 | FN-E490 |
Cutting Size | 450*450mm | 460*460mm | 490*490mm |
Cutting Thickness | 40mm | 60mm | 80mm |
Cutting Precision | 0.3mm | 0.3mm | 0.3mm |
Production Capacity | 13-14 times/minute | 13-14 times/minute | 15-16 times/minute |
Display | key panel | 7" touch screen | 7" touch screen |
Power | 220V,50Hz,0.85KW | 220V,50Hz,1.3KW | 20V,50Hz,1.3KW |
Clamping Method | Electric | ||
Pushing Motor | Step motor | ||
Dimension(L*W*H) | 655x775x1015mm | 685x860x1160mm | 870*1200*1380mm |
Net Weight | 100kg | 115kg | 150kg |
Packing Size | 830*720*670mm | 960x740x820mm | 1060*870*900mm |
Gross Weight | 125kg | 160KG | 205kg |

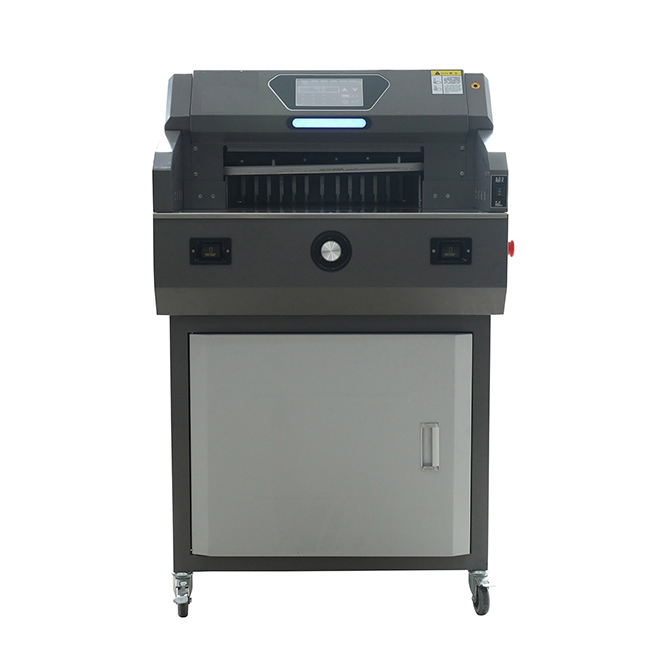

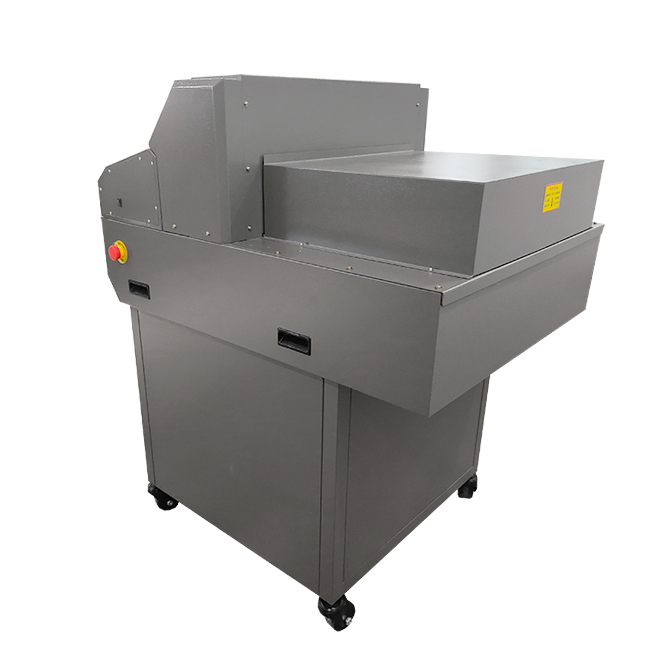

Details:

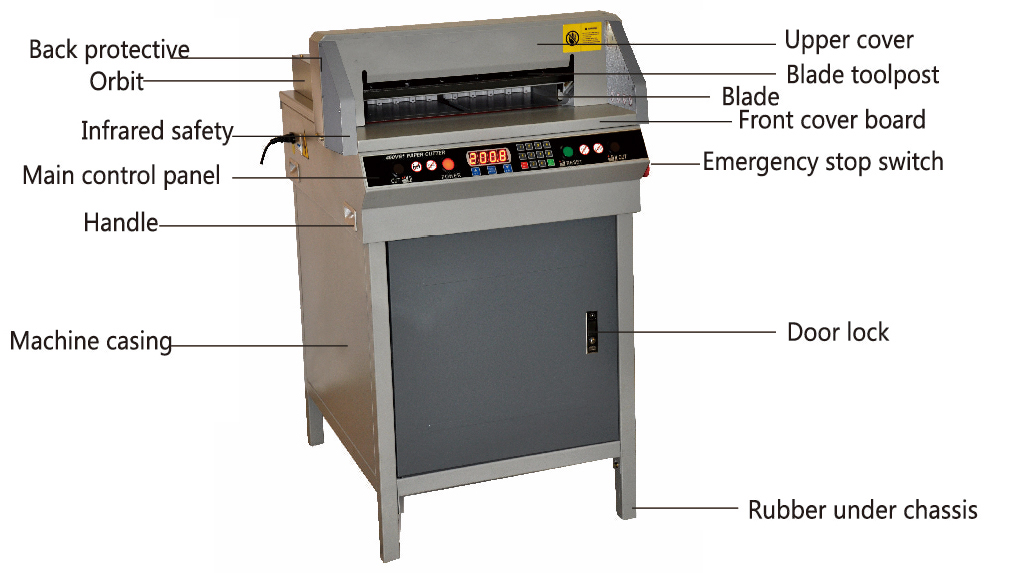

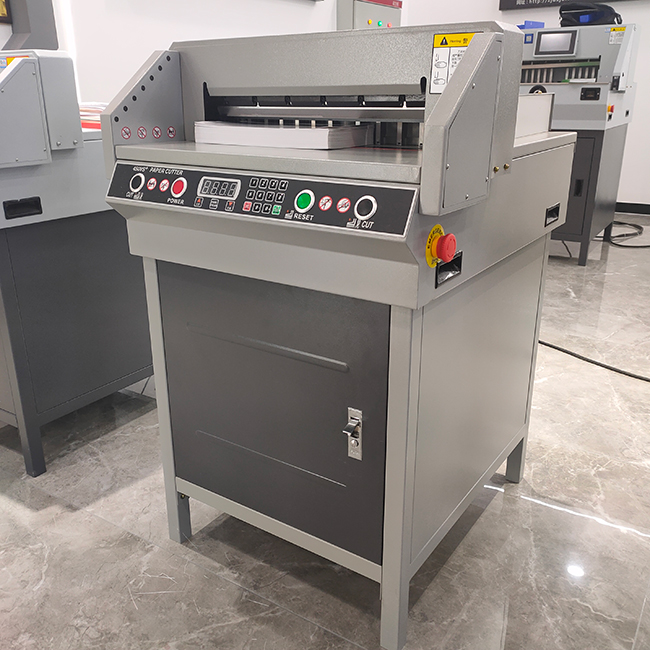

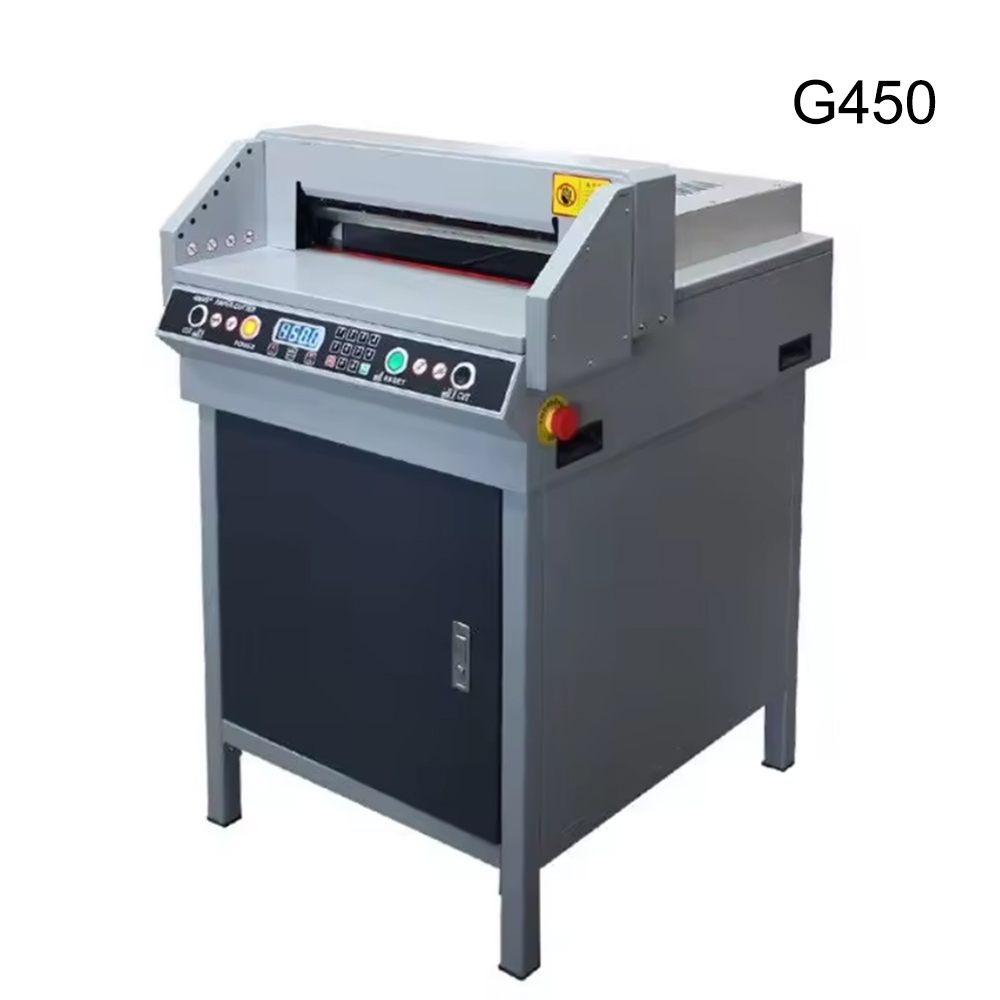

FN-G450

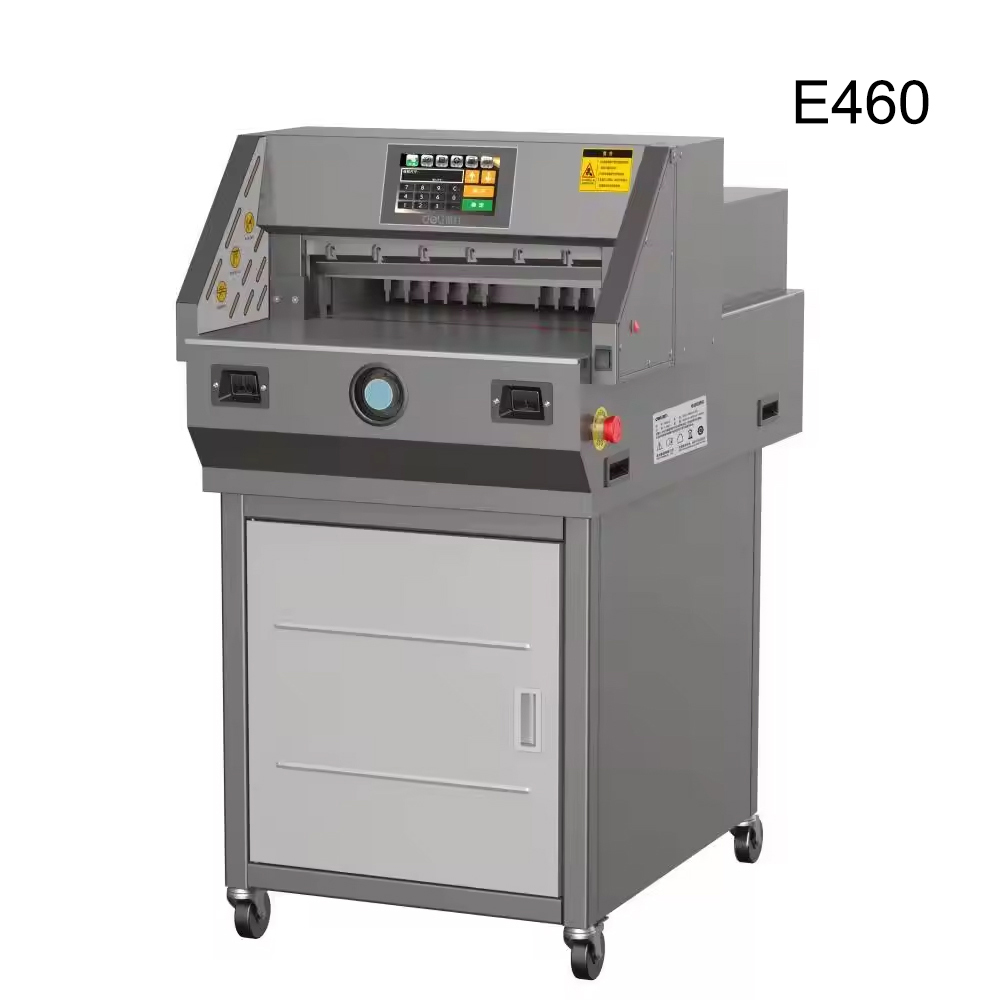

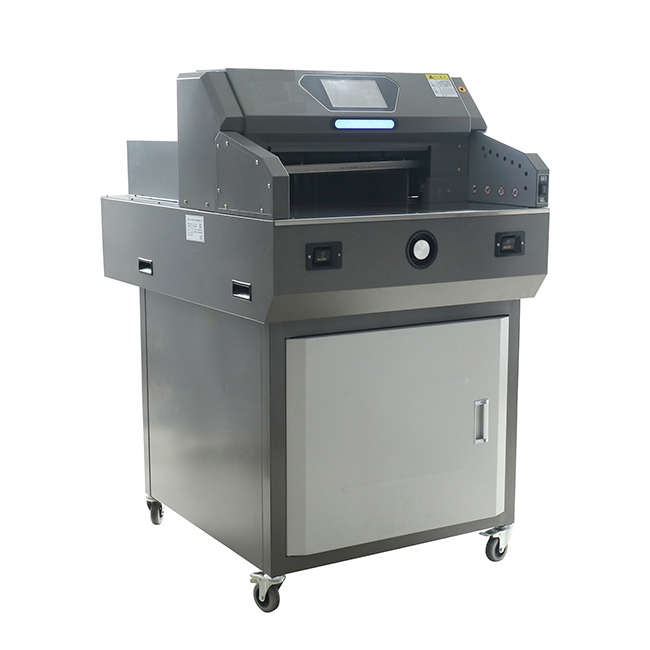

FN-E460

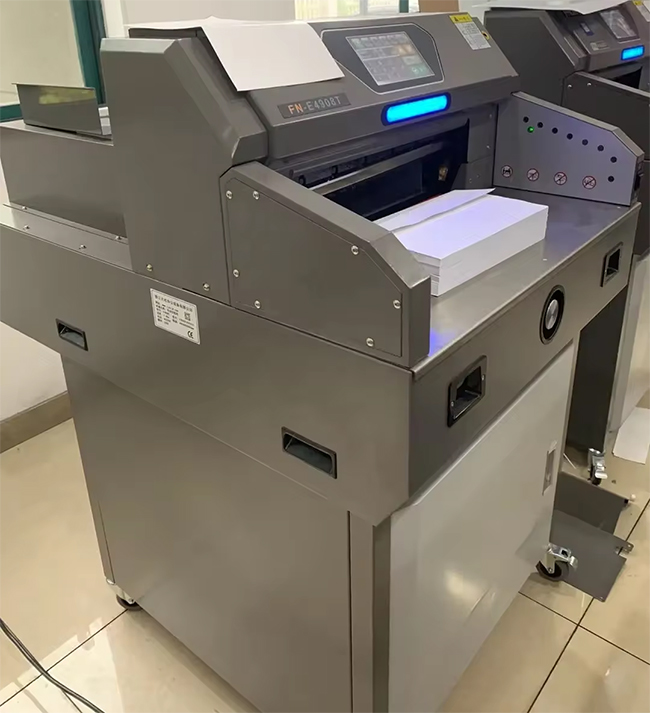

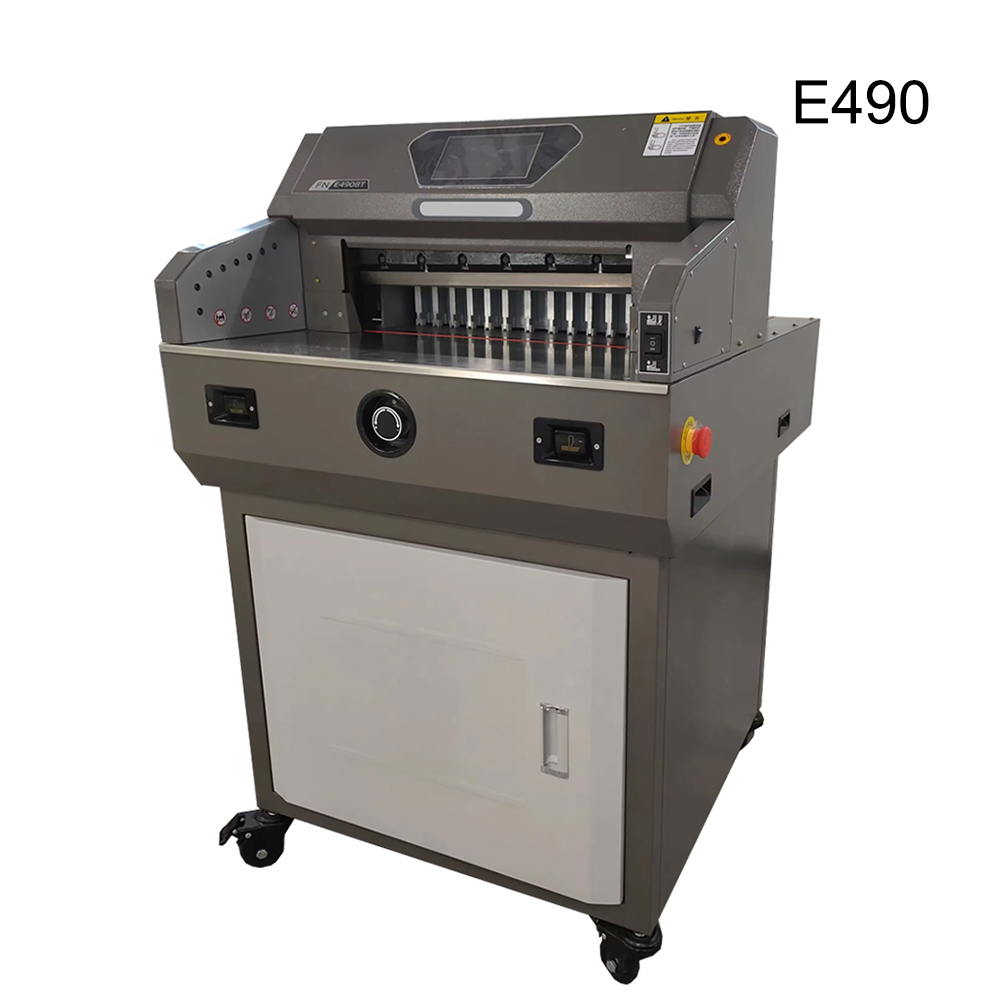

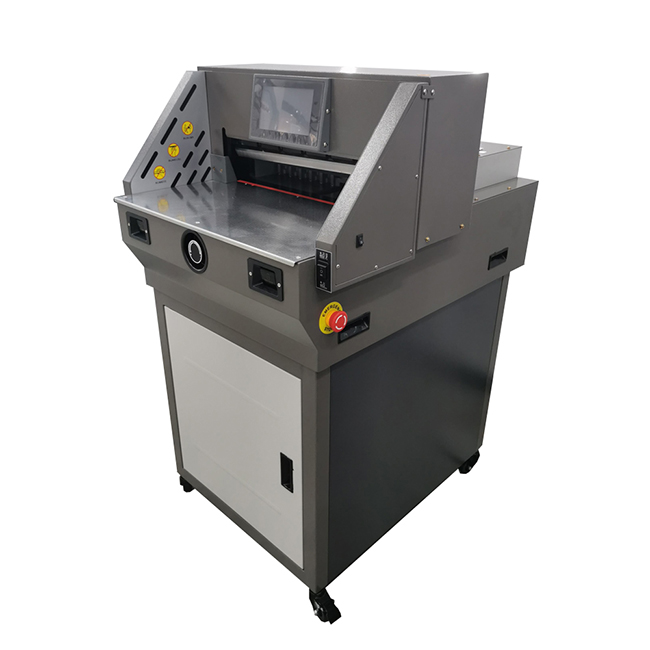

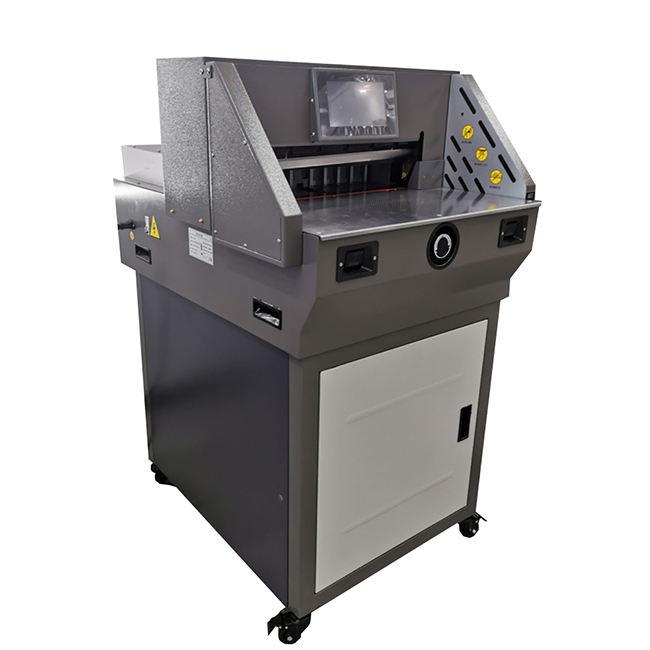

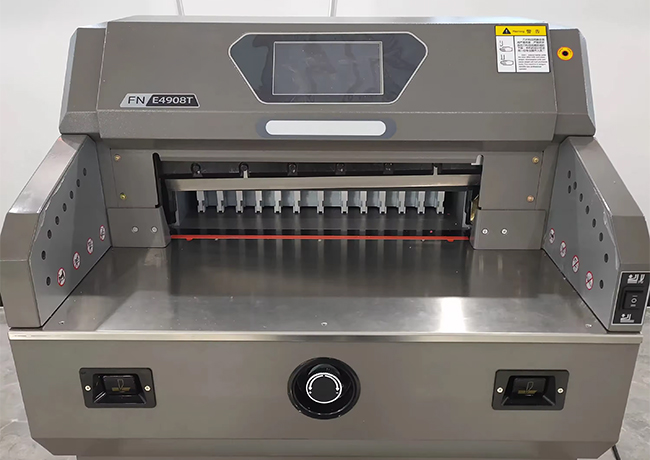

FN-E490
Applicable Industries:
450mm/460mm/490mm Automatic Electric Guillotine Paper Cutter руб.166 383/комплект Мин. заказ : 1 комплект |
|
