Код товара:SIT-TH-FC7090
Features:
1.Streamlined metal body with ubiquitous texture, unique beauty of technology.
2.Self-developed advanced multi-axis high-speed servo motion control system, precise cutting with smooth curve.
3.The automatic feeding device easily realizes the perfect docking of long-format cutting processing, and under the support of the CCD camera, it can achieve precise, accurate and stable contour cutting.
4.Using a hybrid servo motor to drive rail transmission, combined with an intelligent AI algorithm, brings you a better operating experience for special-shaped cutting.
5.Various transmission interfaces, USB/U disk/Ethernet port, which create an efficient cutting experience in different scenarios.
6.Patented platform structure design, multi-zone vacuum adsorption design, low noise, strong suction, help you absorb small size material easily.
7.One-key contour extraction for contour cutting, no longer require professional computer operators, which greatly reduces the entry threshold for equipment operators.

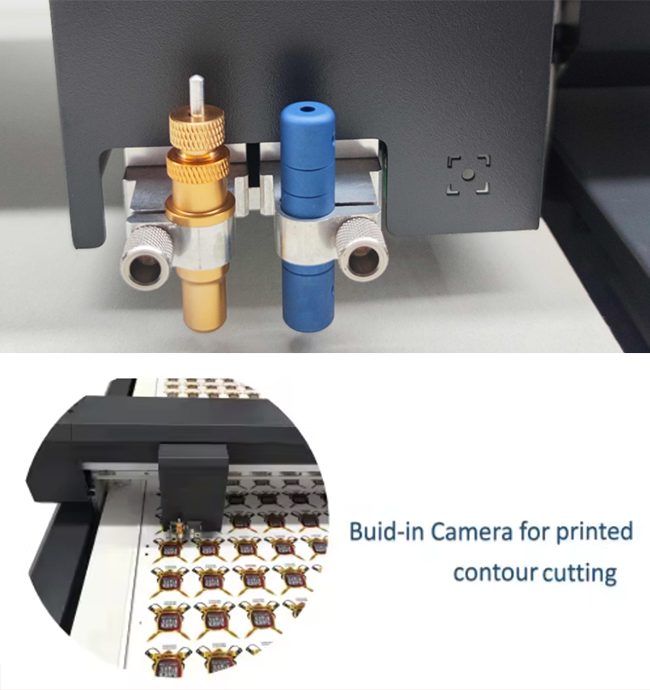

8.CCD camera imaging patrol module, accurate and sensitive, quickly recognize and cut various complex and special-shaped graphics.

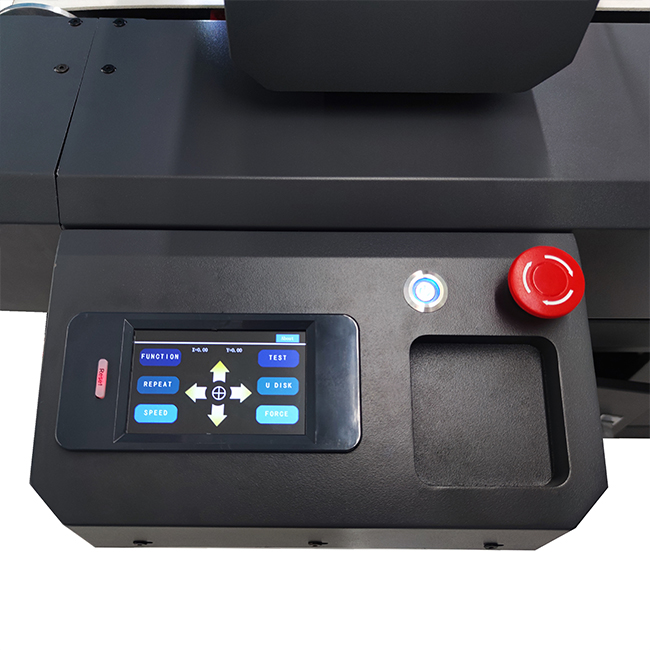

9.LCD high-definition touch screen makes the vision more beautiful and the operation more convenient.
Model | FC7090 |
Media way | Vacumm adsorption and belt conveyor automatically |
Cutting area | 60*90cm |
Roll cutting width | 65cm |
Roll cutting length | Not limited |
Control panel | 4.5 inches touch screen |
Driver | High-speed servo motor |
Mainboard | 32-bit CPU, 4Mb cache memory |
Max. cutting speed | 1-1000mm/s |
Max. cutting force | 1000g |
Max. cutting thickness | ≤1.2mm |
Resolution | 0.05mm |
Air pump power | 2.2KW |
Interface | USB ,U disk |
Compatible software formats | SignMaster / Ai/ AutoCAD/ Coraldraw |
Positionin | Camera detecting |
Cutting head | Two Tools for cutting and creasing |
Fixing method | Double- frame adhesive / vacuum adsorption |
Plotting instruction | DMPL / HPGL automatic identification |
Power supply | AC220V 50HZ |
Operating enviroment | Temperature:+5℃ to +35℃, relative temperature 30%-70% |
Operating language | English |
Operating system | Windows XP/Windows7/Windows8/Windows10 |
Details:
Application:
Cuts cardboard, Kraft paper, plastic board, fibrous cardboard, rubber sheet and marking film etc.
Application Field:
Prototype and light production, on - demand packaging and sheet card cutting system - also suitable for sheet labels.
Process Material:
cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm (0.0157in)
reflective film: All types
Sandblast, Hard paper: Less than 300gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm (0.0118in), vinyl, etc.
Process:
Certificate:
翻译
搜索
复制
FC7090 Digital Automatic Label and Flatbed Cutting Machine руб.750 388/комплект Мин. заказ : 1 комплект |
|
