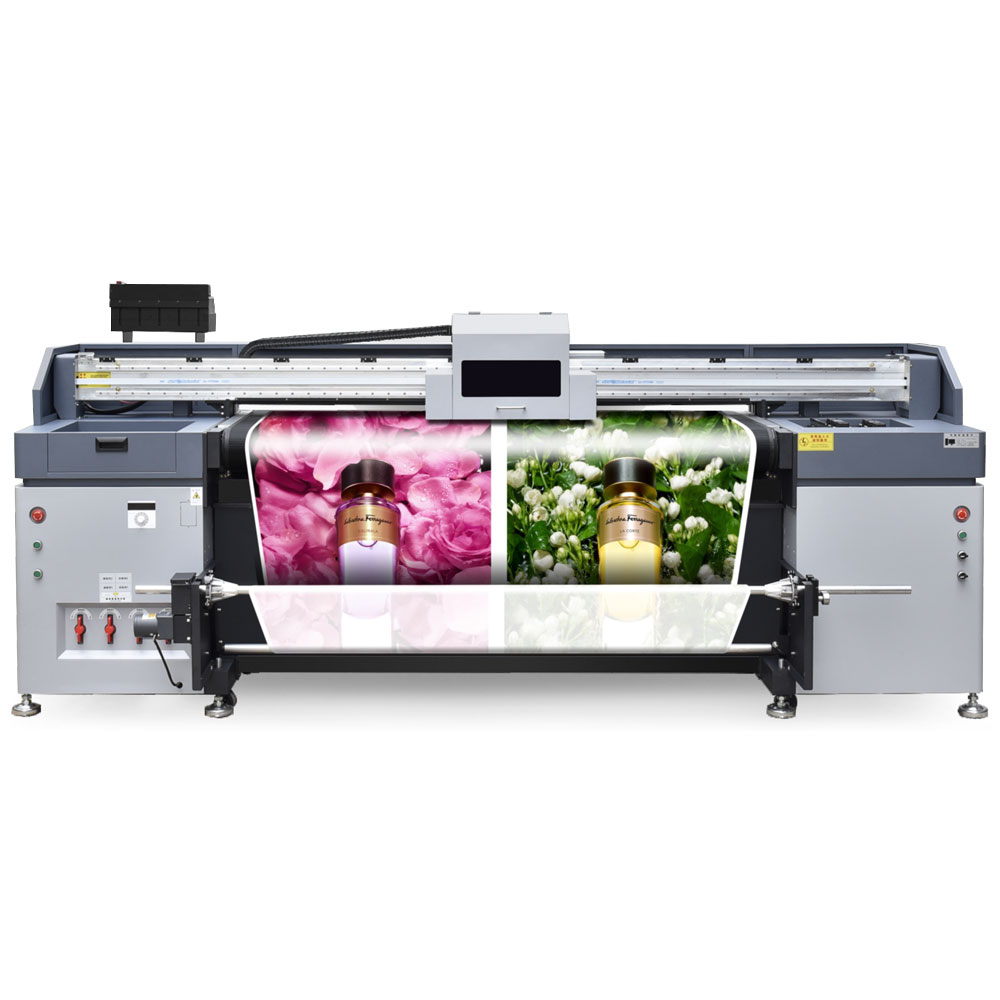

1.8m Hybrid UV Inkjet Printer With 2/4/6 Epson i3200U Printhead

Features:
Adopting mesh belt suction printing platform, through the industrial grade high power fan, the platform goes material printing with smooth transmission and strong adsorption force.Through the strong suction,function, it avoids the pulling,wrinkling and sticking of the material whenprinting, and the whole material is very flat.

With variable ink droplet function, it can print 3 different sizes of ink droplets at one time,and the ink droplet size can be as small as an amazing 1.5pl. Gray level printing technology can print more perfect tones, beautifully smooth gradient effects, hard text lines and complex details without reducing the printing speed.

R8000 multiple imaging options:

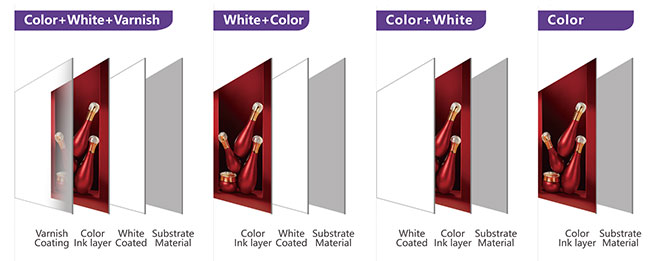

Multi-layer imaging function(white+color+varnish, white+color, color+white, full color) to meet the different needs of customers.

The multi-layer imaging function can quickly reproduce relief and 3D effects on substrate materials, making the sense of concavity and convexity within reach.

Specification:

Model		MT-R8000
Printhead		Epson i3200U
Printhead number		2pcs	4pcs	6pcs
Print speed	Draft mode	24 m²/h	48 m²/h	72 m²/h
	Production mode	16 m²/h	32 m²/h	48 m²/h
	Quality mode	12 m²/h	24 m²/h	38 m²/h
Ink Color		Four-color CMYK / six-color CMYK + LC + LM +W(white ink)+ V(varnish)
Cartridge Capacity		3500ml/color
Ink supply method		Negative pressure continuous ink supply
Ink curing		LED Curing
Print width		1820 mm
Media type		Leather, soft film, aluminum composite board, woodboard,buckle board,ceiling, organic boardPVC, fabric, wallpaper, brick, stone, etc.
Media thickness		0-80 mm
Paper take-updevice		High power automatic take-up and pay-off system
Operating System		Win7/ Win10 64 bit
Operating Language		English
Print Interface		USB3.0
RlP software		MainTop6.0
Power parameters		200-240 V，50/60 Hz,32A
Power (W)		3000W
Environmental requirements		Independent clean,low-dust, low-light, well-ventilatedwork space, Working temperature:20°C-28°C; Humidity:40%-70%(non-condensing)
lmage format		JPG/TIFF/PDF/PSD
Machine size		3350 mm x1370 mm x1386 mm(LxWxH)
Computer configuration requirements		Win7/10 64-bit system (pure version)Win10 system must "disable digital signature”CPU: 15 6500 or above Memory: 16G or aboveC disk: 250G or more (solid state drive recommended)Monitor:17-inch flat screen monitor, true color displaycard,support for resolutions above 1024X768

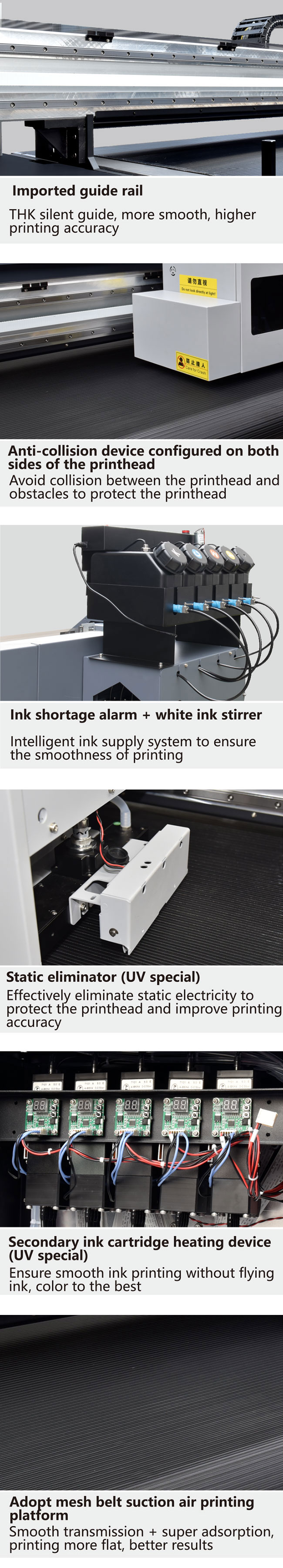

Details:




Application:
Rigid materials:glass,metal,wood,acrylic sheet,KT board,pvc sheet.
Soft meatrials:paper,plastic film,leather,pvc film.
