Код товара:SIT-HTM-BSL-650E

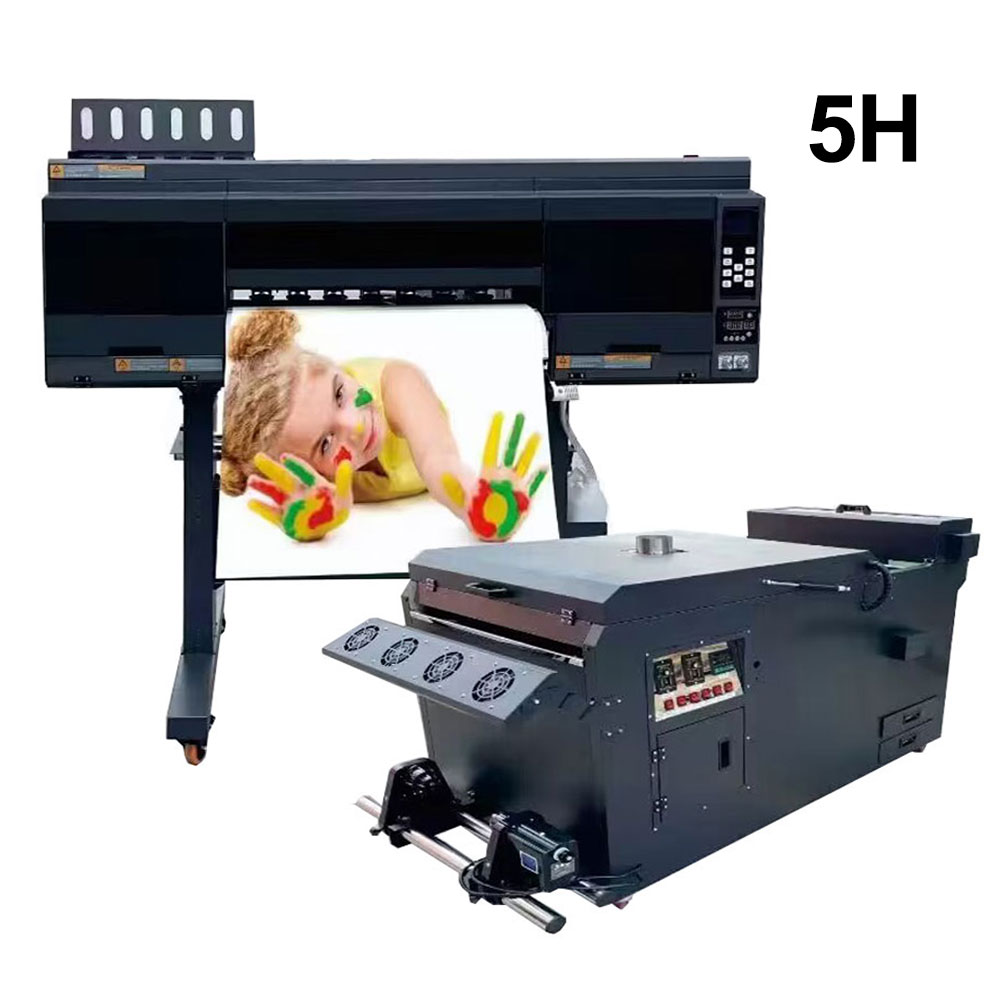

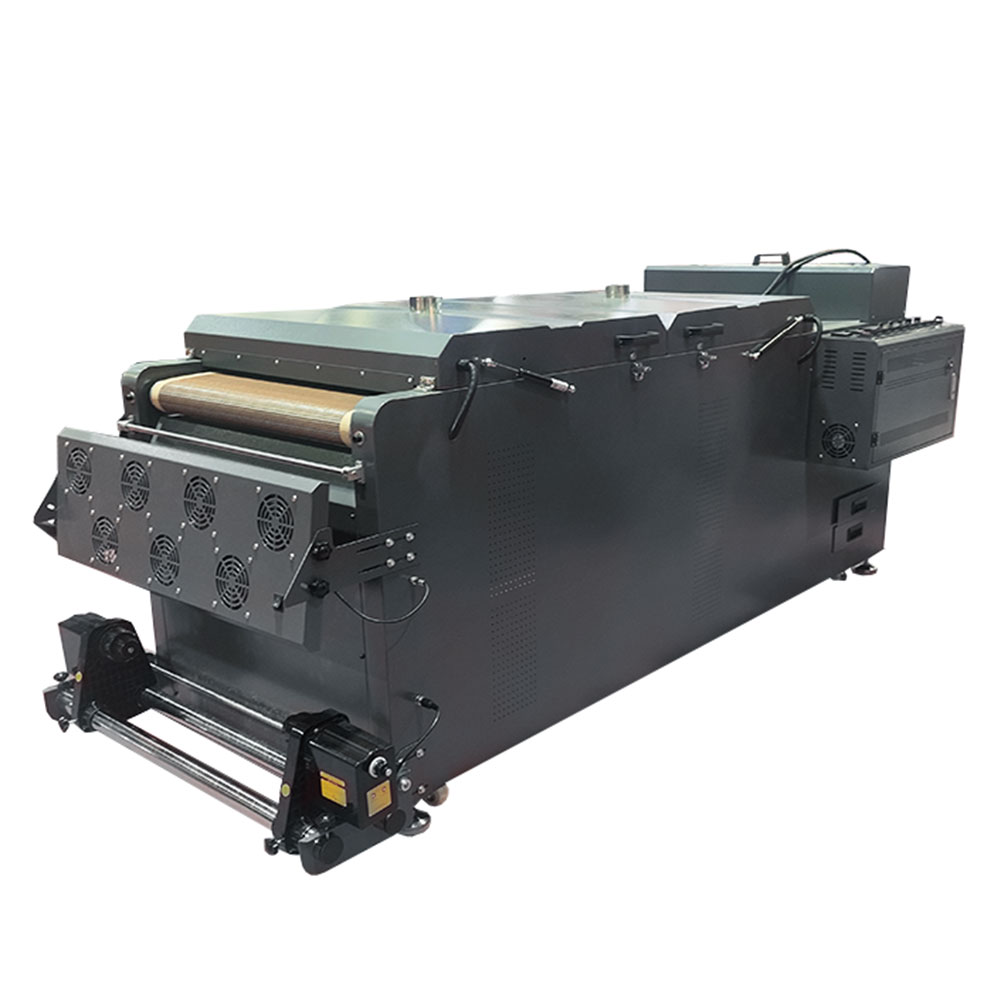

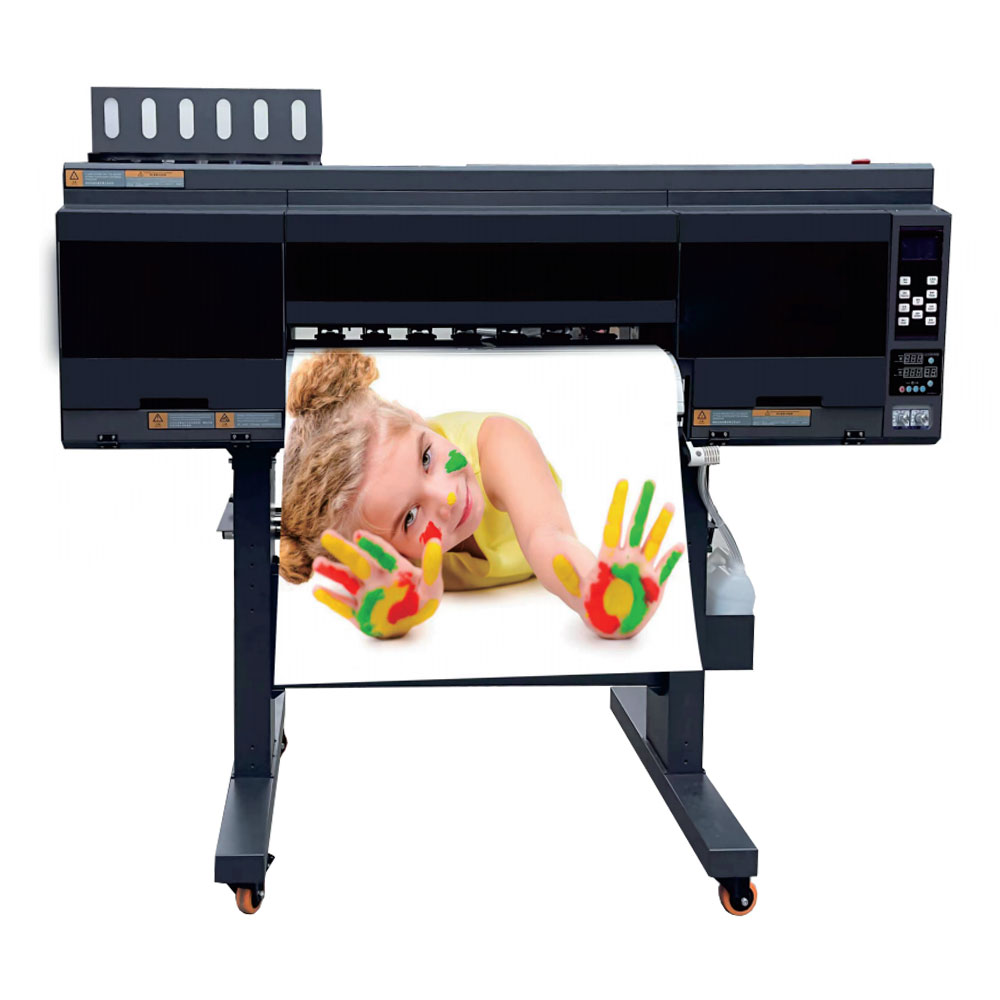

650E DTF Printer Powder Shaker and Dryer with 5 Epson i3200A1 Printheads
Features:
- Universal matching, easy to use, labor saving.
- Digital offset heat transfer, one-time forming.
- Suitable for industries such as digital printing.
- No engraving, no waste discharge, no engraving, no white edges, environmental protection.
Specifications:
Printing width | ≤620mm | ||||
Print Head | 650B/Epson i3200A1 | 650C/Epson XP600 | 650D/Epson i3200A1 | 650E/Epson i3200A1 | |
Print head qty. (pc) | 2 | 2 | 4 | 5 | |
Printing speed | 4pass | 12 m²/h | 6.5 m²/h | 28 m²/h | 39m²/h |
6pass | 8.5 m²/h | 4 m²/h | 21 m²/h | 31m²/h | |
8pass | 6 m²/h | 2.5 m²/h | 14 m²/h | 20m²/h | |

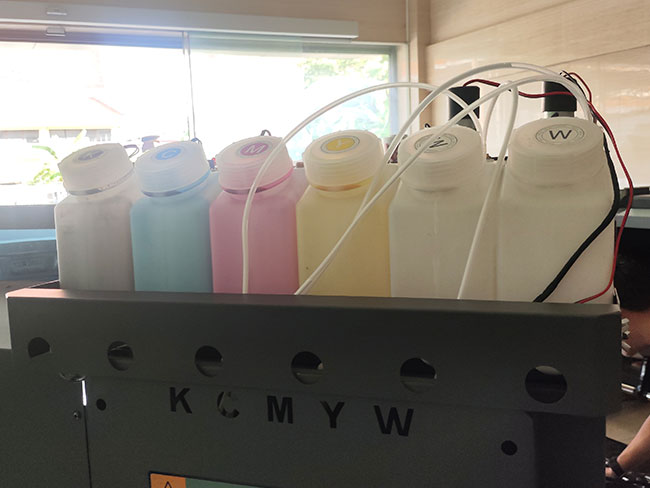

Print color | CMYKW(Optional 8 colors) | ||||
Suitable media | PET film | ||||
Heating and drying function | Front guide plate heating, solidified upper drying, and cold air cooling function | ||||

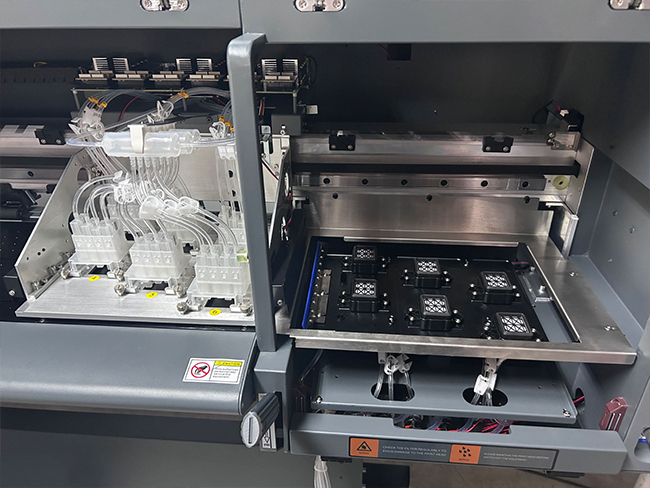

Print head cleaning | Automatic | ||||
Heating method | Front guide plate heating (30~65°C) | ||||

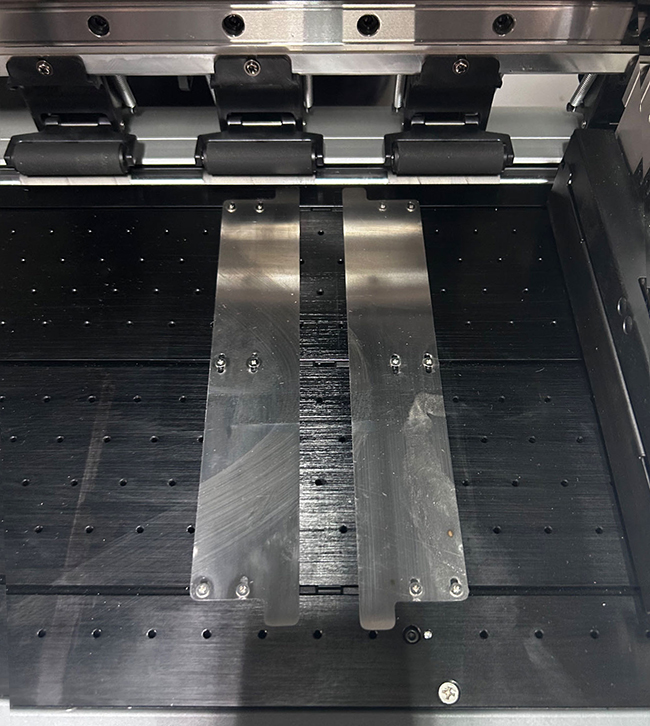

Platform suction adjustment | Yes | ||||
Working environment | Temperature 20~28°C | ||||
Relative humidity | 40-60% | ||||
Software | Maintop | ||||
Operating system | XP/ Win7/ Win10 | ||||
Rewinding function | Automatic induction rewinding | ||||
Rated power | 350W | ||||
Product size | 1800x760x1420mm 115kg | ||||
Packaging size | 1840x800x780mm 135kg | ||||

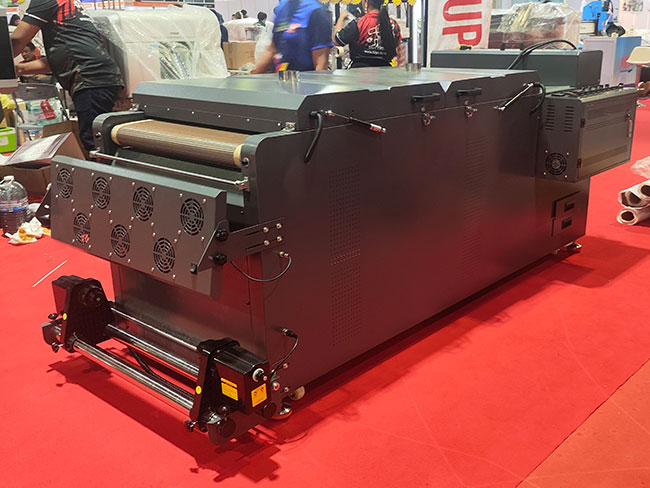

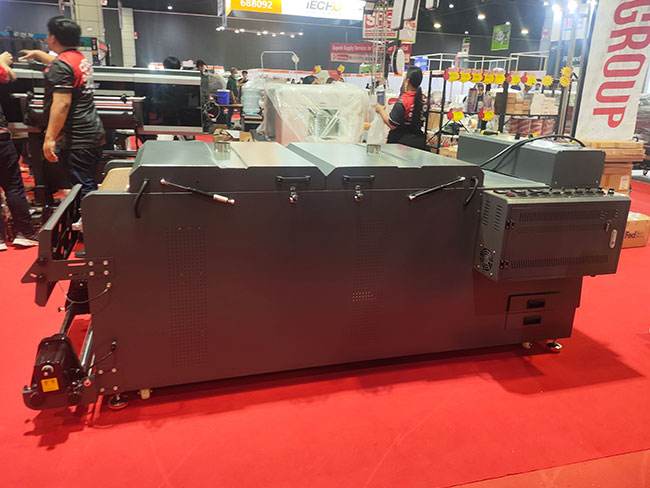

Powder Shaker and Dryer | |||||
Shake powder width | ≤650mm | ||||
Applicable medium | Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc. | ||||
Fan control | Shake powder control, dusting control, direction and quantity control | ||||
Heating and drying function | Front guide plate heating, upper drying and curing, cold air cooling function | ||||
Rewinding function | Automatic induction winding | ||||
Number of heating pipes | 14pcs | ||||
Rated voltage | 220V | ||||
Rated current | 45A | ||||
Rated power | 9800W | ||||
Packaging size | 2680x900x800mm 280kg |

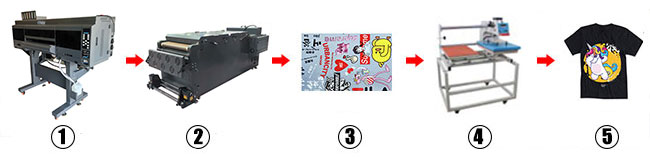

Digital printing solution:
1. Pictures typesetting and printing out
2. Powder feeding, shaking, drying, rewinding
3. Pictures waiting for heat transferring
4. Heat transferring
5. Finished printing effect
Details:

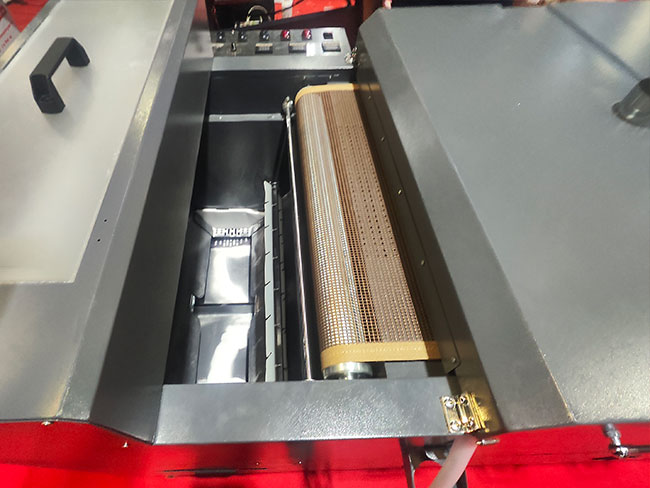

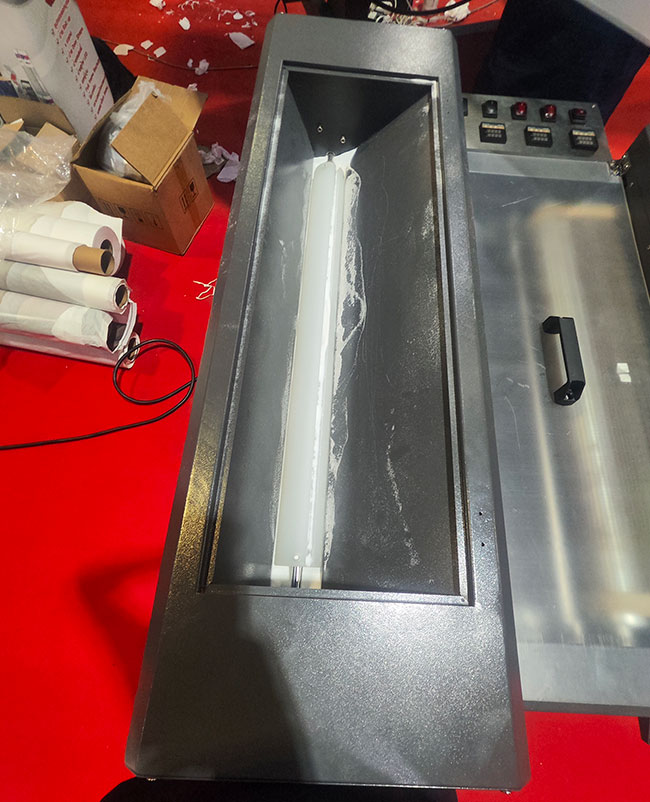

1. Powder feeding shaft: automatic powder feeding, evenly spreading powder.
2. Smoke outlet: It can be equipped with a smoke extractor, which is environmentally friendly and pollution-free.

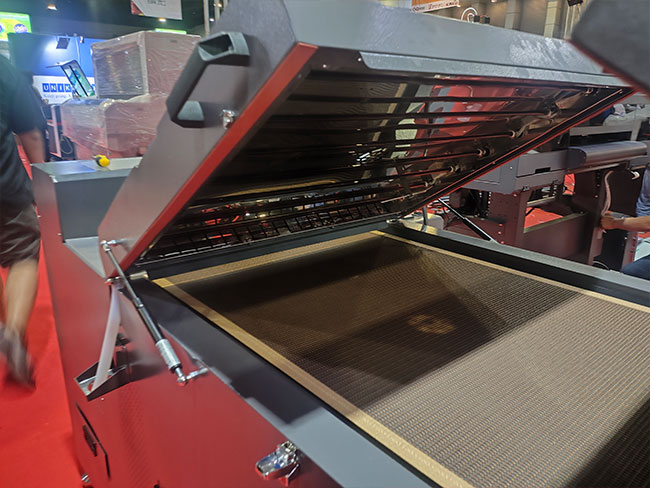

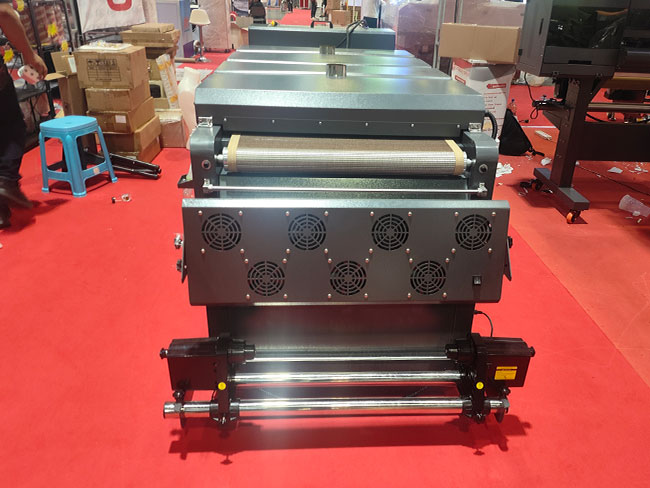

3. Drying zone: Lengthen and widen the drying heating zone to evenly heat the screen.

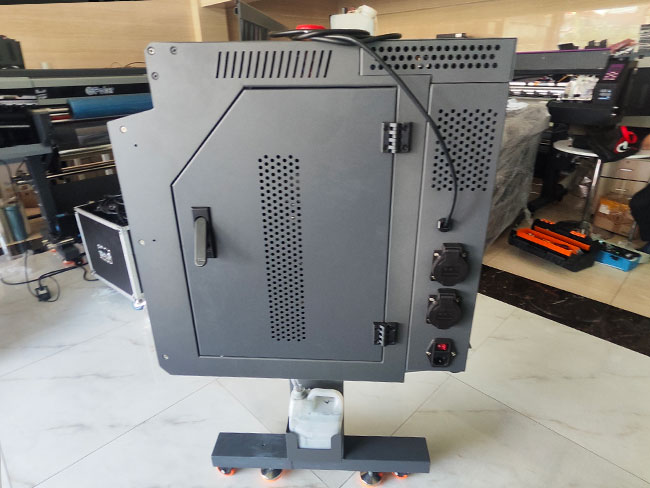

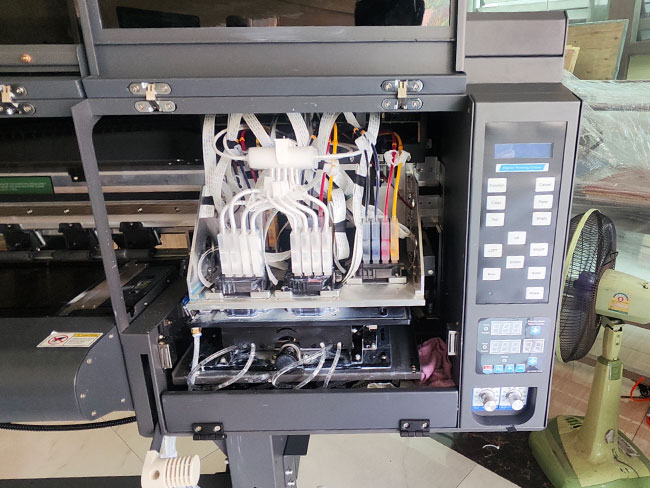

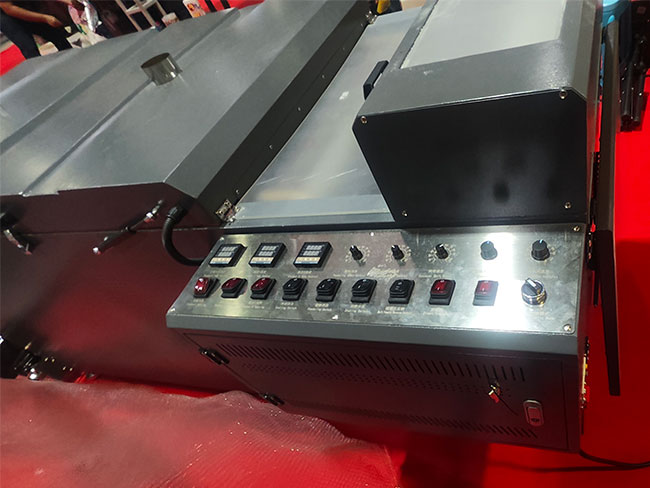

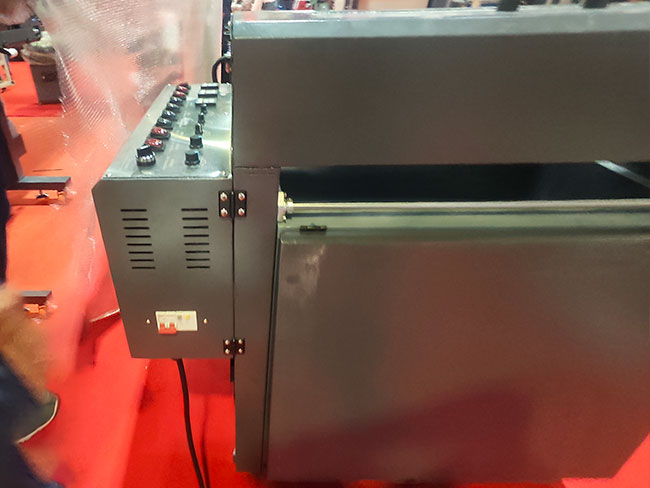

4. Control panel: Chinese and English button panel, simplified operation, easy to understand.

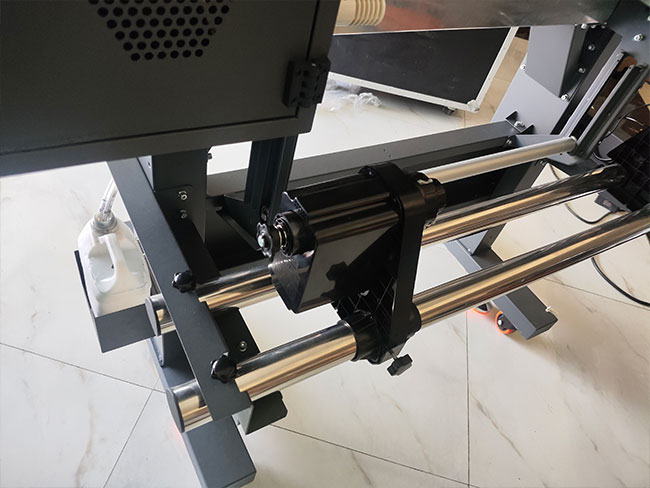

5. Intelligent take-up device: The resistance of the take-up device can be adjusted, and the maximum load-bearing capacity of the thickened 5cm steel pipe is 70kg.

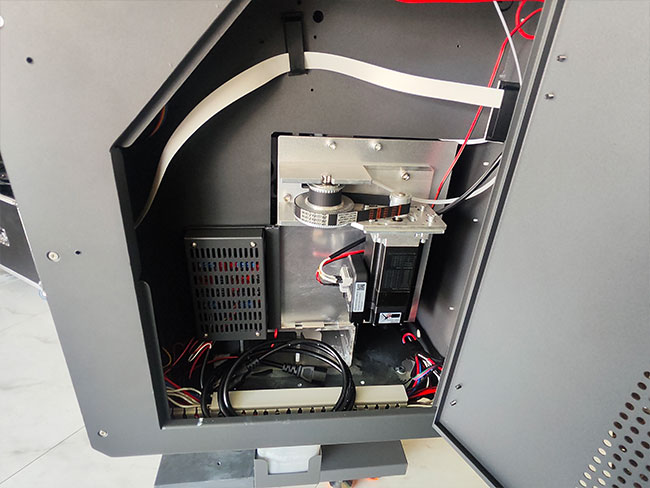

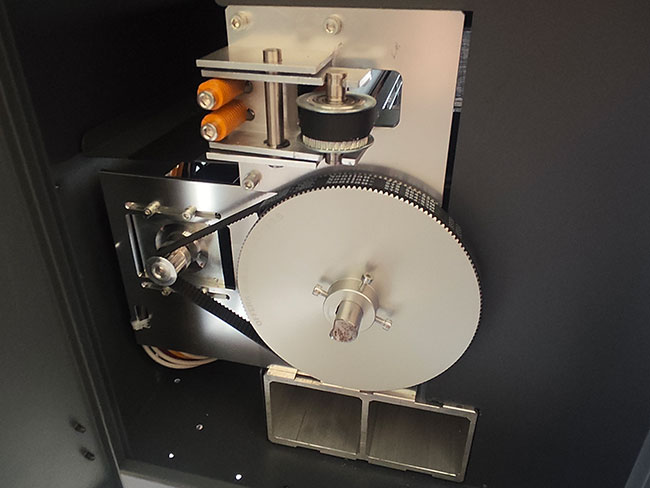

6. Powder shaking motor: Stepless speed regulation, shaking powder cleanly.

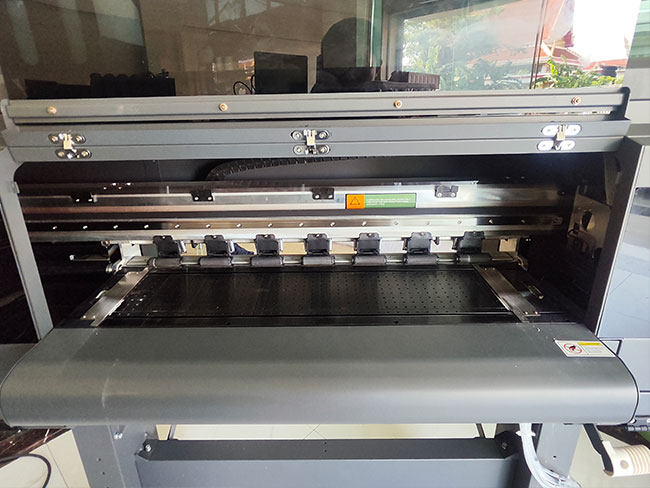

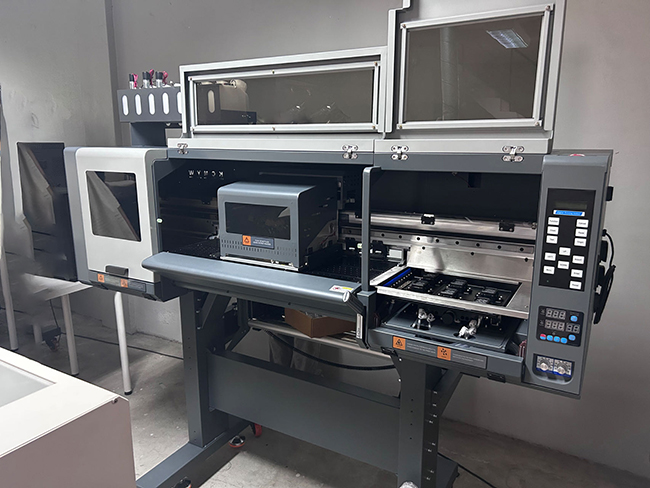

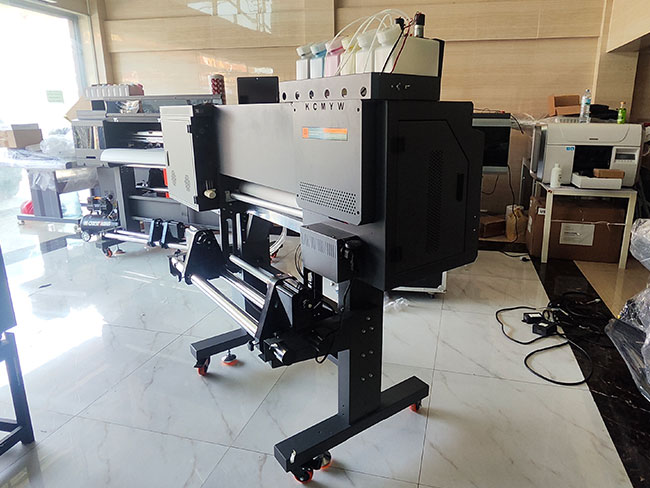

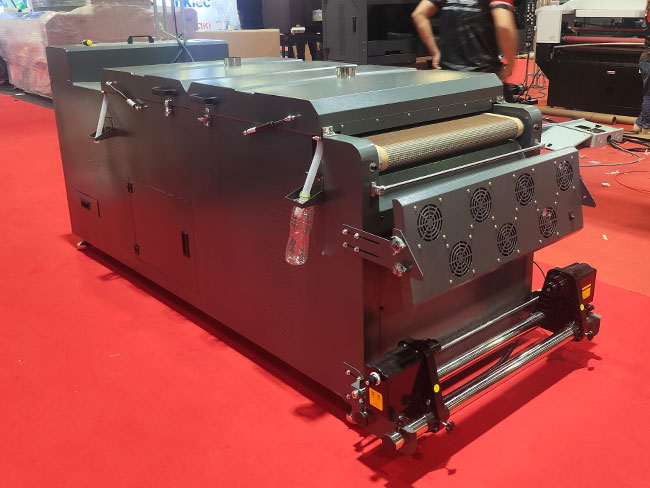

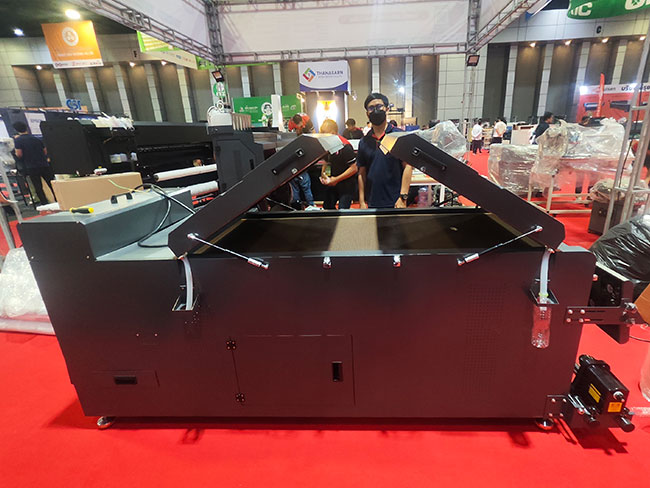

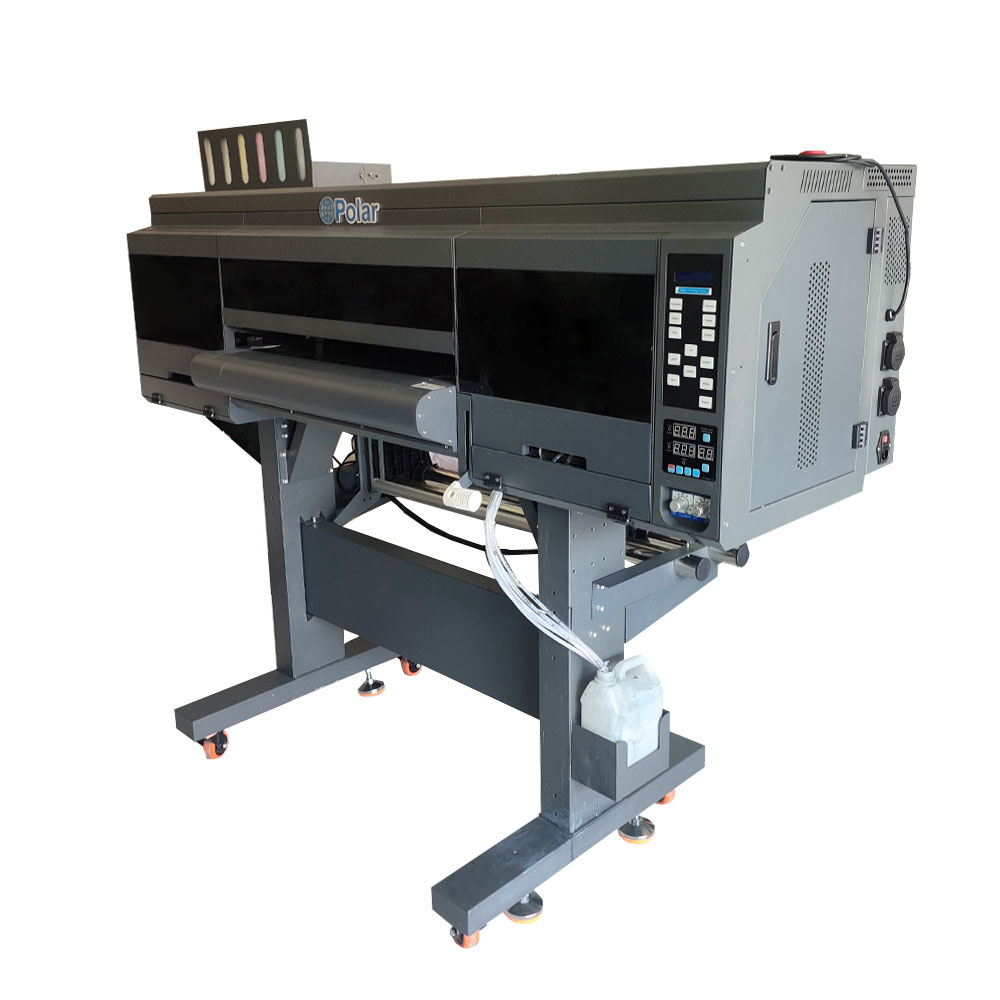

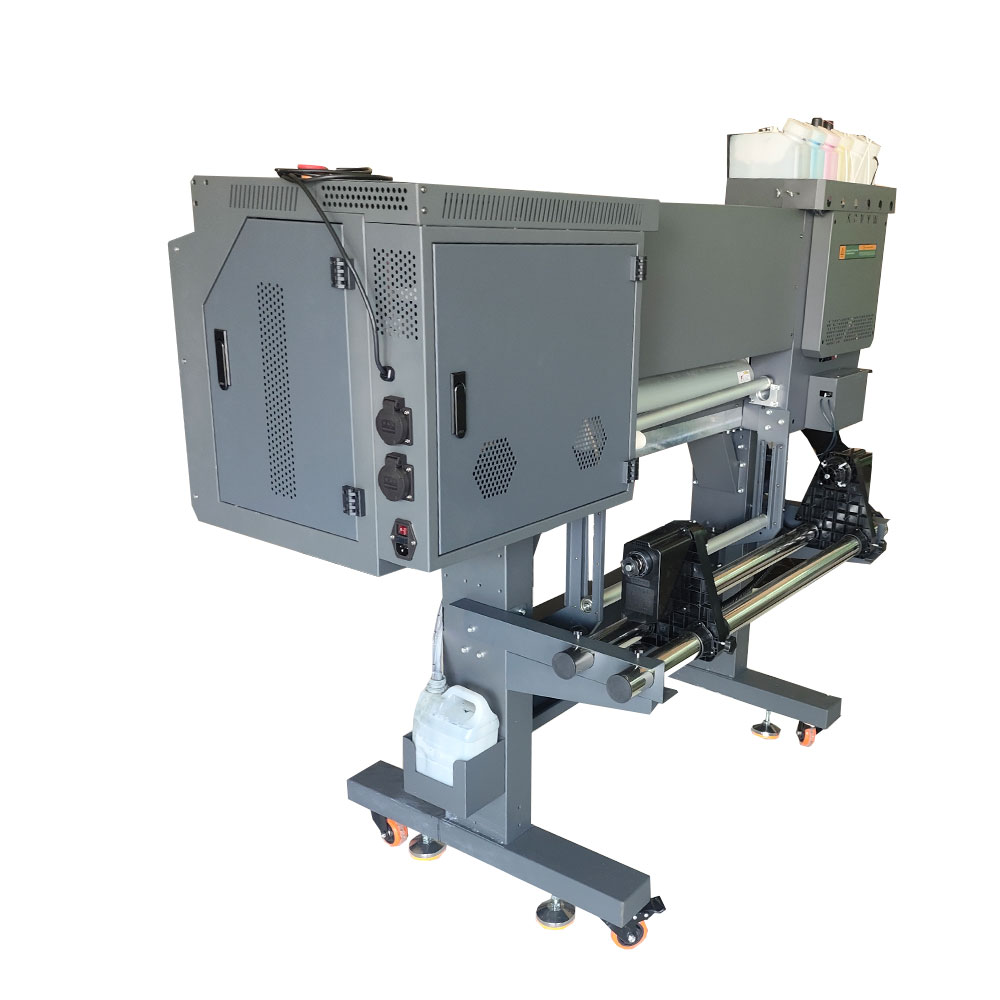

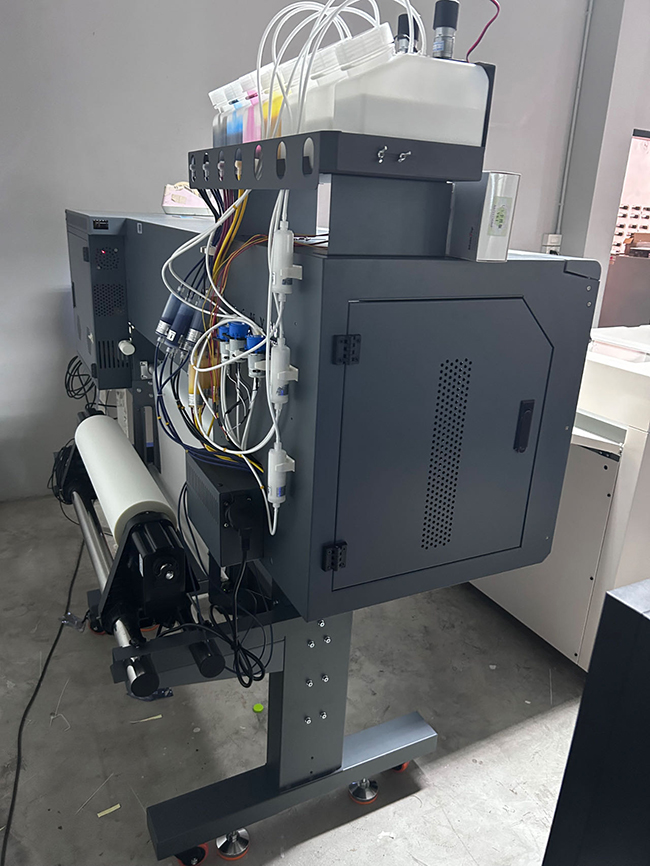

Product photos:
Applications:
