Код товара:CW-6500FNTY
Description:

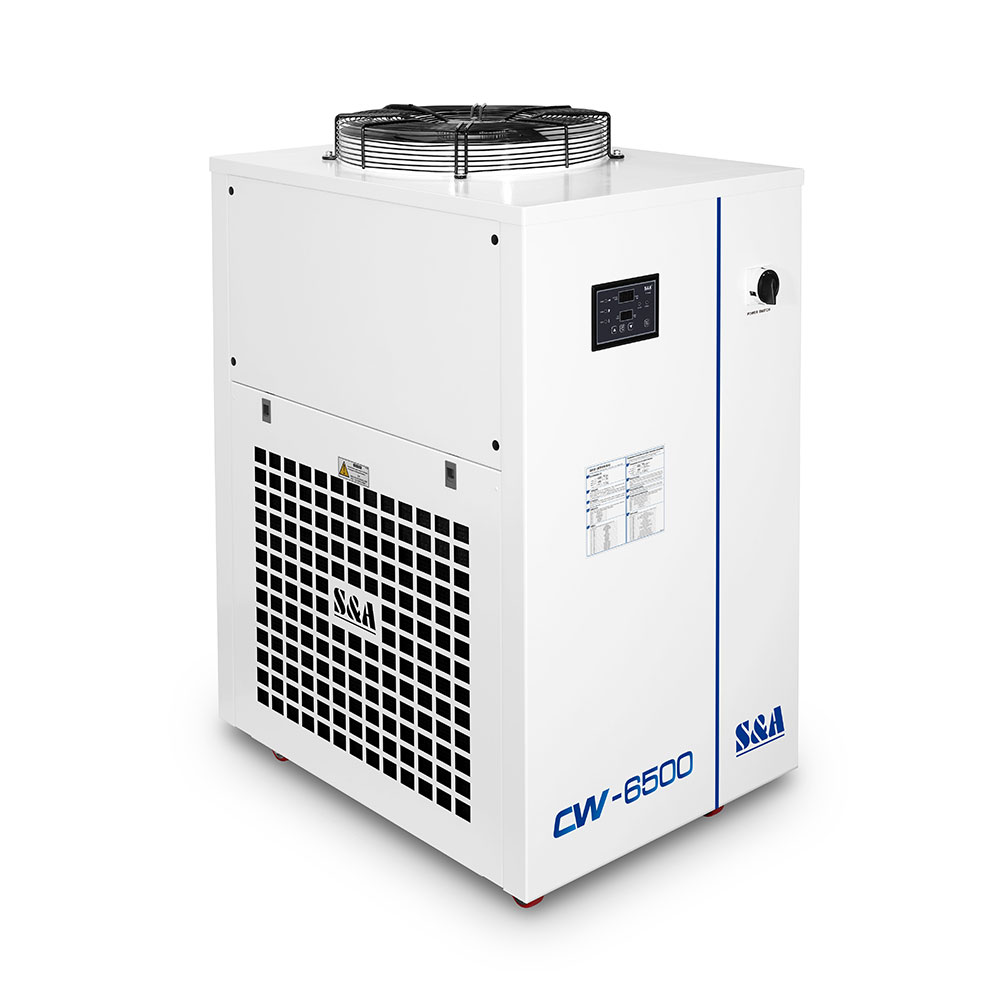

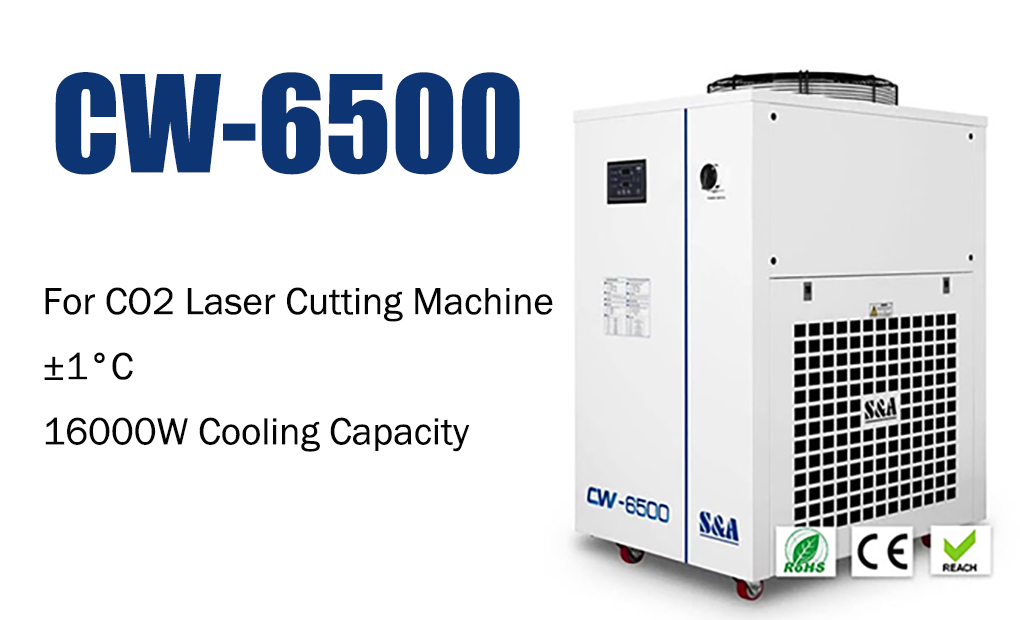

CW-6500 industrial water chiller unit is highly recommended for cooling 500W RF Co2 laser.
It can provide consistent cooling while at the same time offering a high degree of energy efficiency. With this chiller, optimum cutting quality and speed of your CO2 laser cutting machine can be achieved. The core components like evaporator, condenser and outer casings are manufactured independently by ourselves to ensure high quality standard. The thoughtful details like visual water level check and the intelligent temperature controller integrated with alarm functions are the result of our close cooperation with users.
Features:
1. Cooling Capacity: 16000W
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410a
6. Intelligent temperature controller
7. Multiple alarm functions
8. Ready for immediate use
9. Easy maintenance and mobility
10. RS-485 Modbus communication function
11. Available in 380V
Product Details:

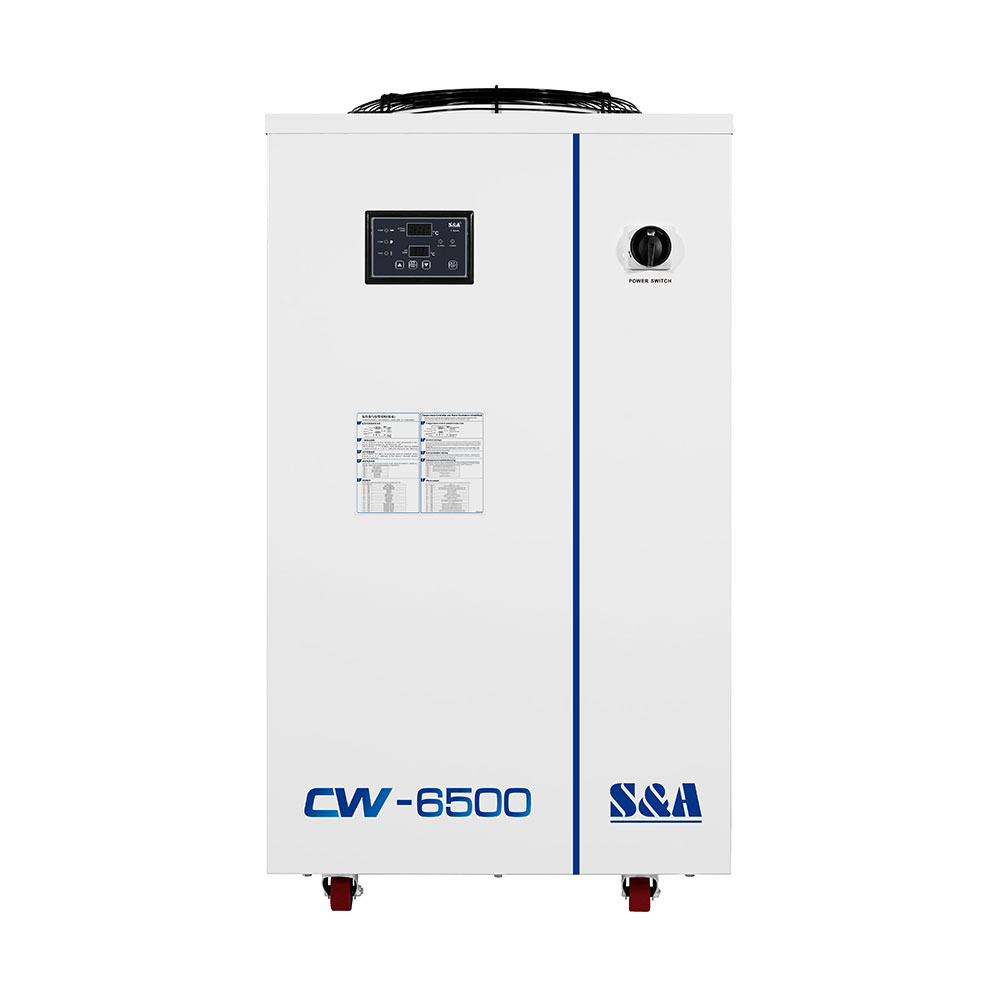

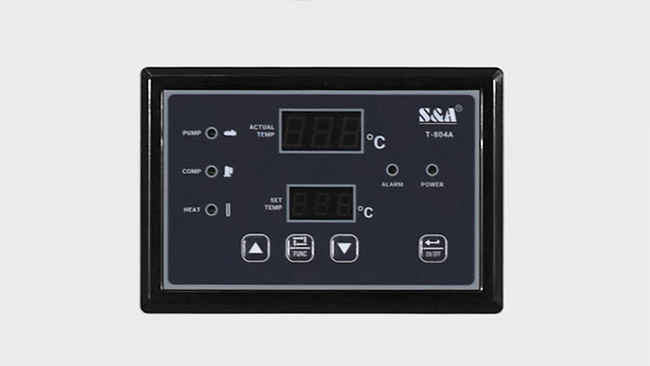

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

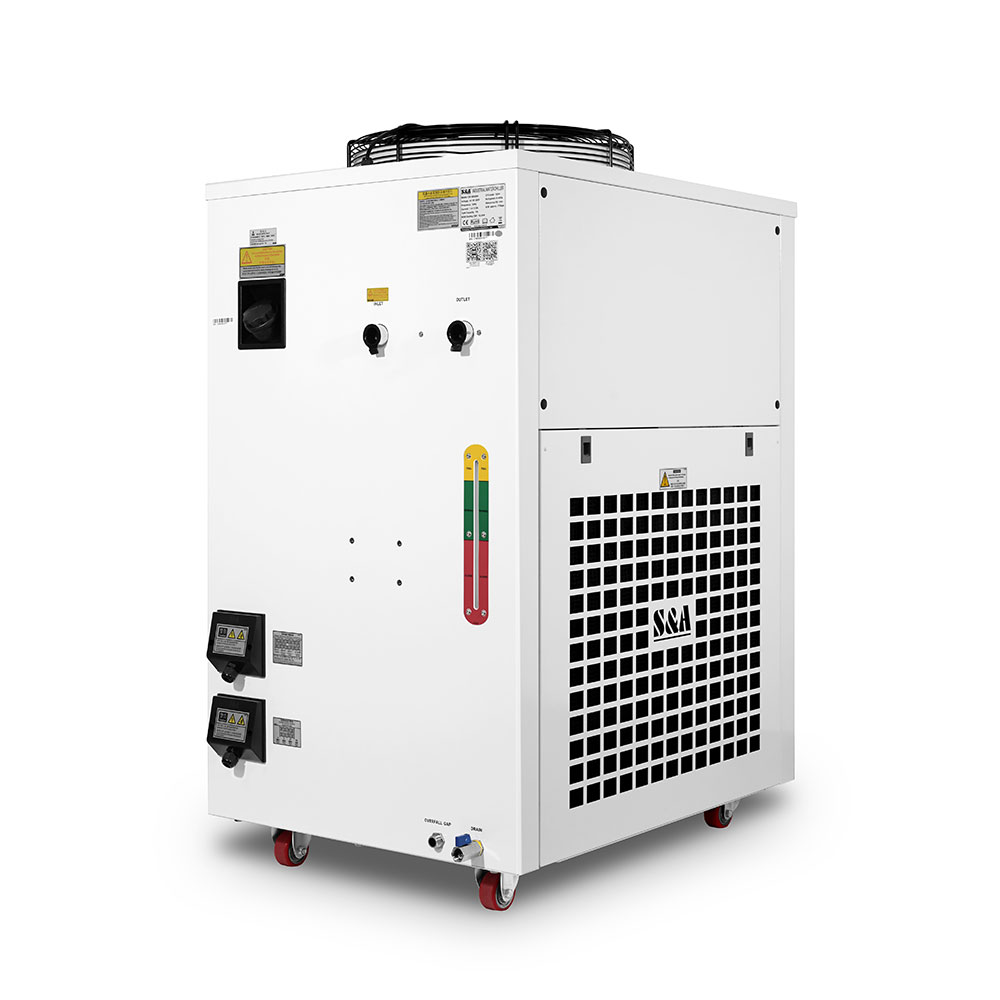

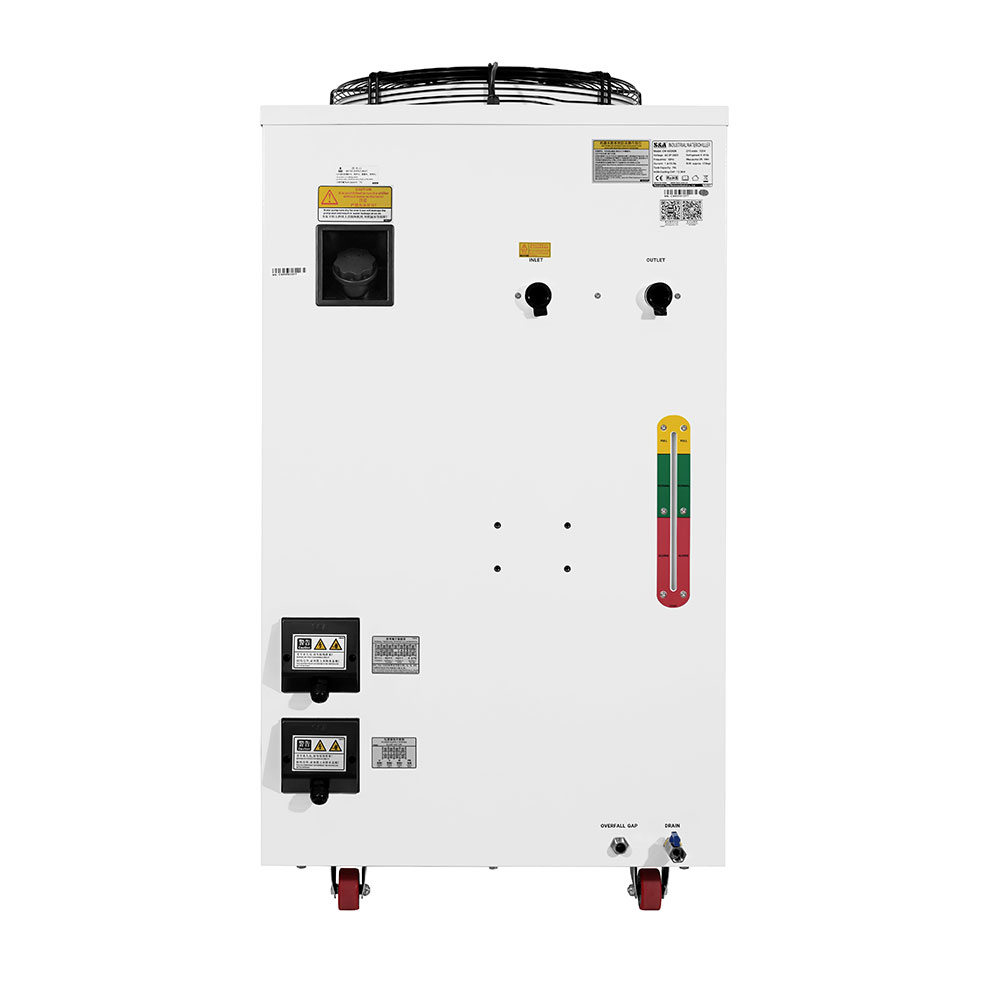

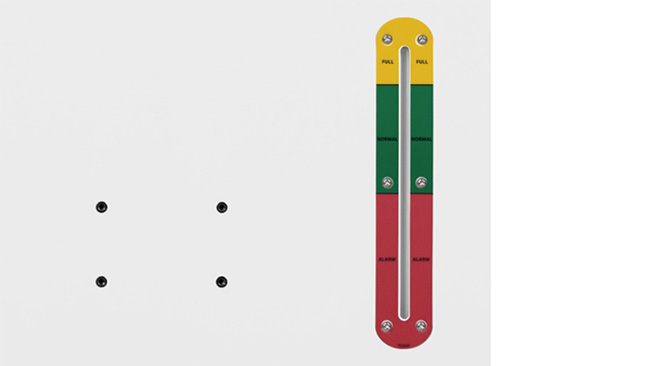

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

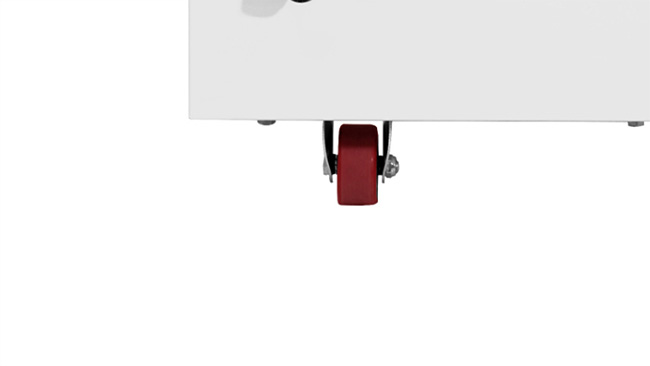

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
Certificate

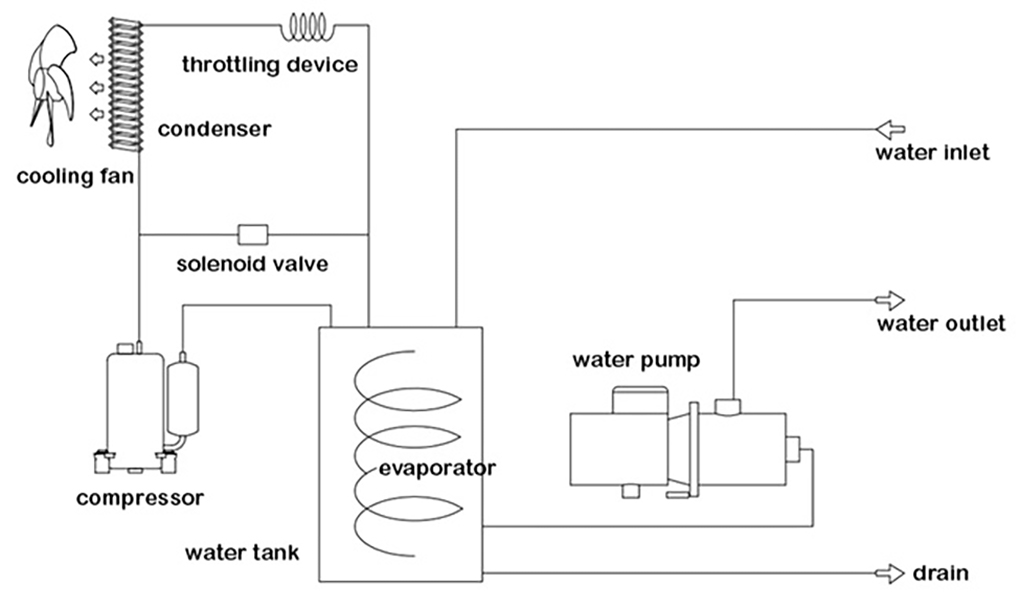

Product Working Principle
Model |
CW-6500FN |
Voltage |
AC 3P 380V |
Frequency |
60Hz |
Current |
1.5~13.5A |
Machine power |
7.1kW |
Compressor Power |
5.45kW |
7.31HP |
|
Nominal cooling capacity |
53910Btu/h |
15.8kW |
|
13585Kcal/h |
|
Refrigerant Charge |
1610g |
Pump Power |
1kW |
Max. lift |
59M |
Max. flow |
70L/min |
Refrigerant |
R-410a |
Precision |
±1℃ |
Reducer |
Capillary |
Tank capacity |
70L |
Inlet and outlet |
Rp1" |
N.W |
178Kgs(392.4lb) |
G.W |
238Kgs(524.7lb) |
Dimension |
41.3" x 27.9" x 52.3" (105 x 71 x 133cm) |
Package dimension |
45.7" x 36.6" x 59" (116 x 93 x 150cm) |
