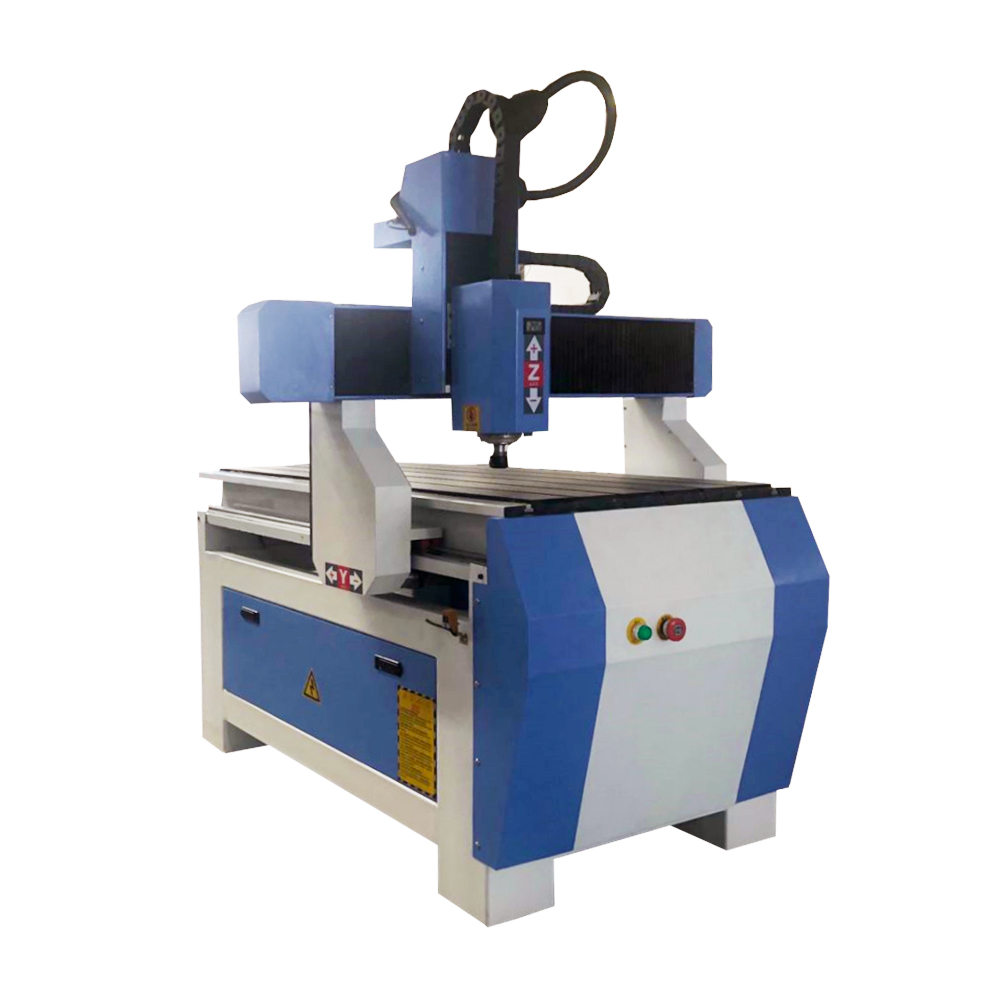

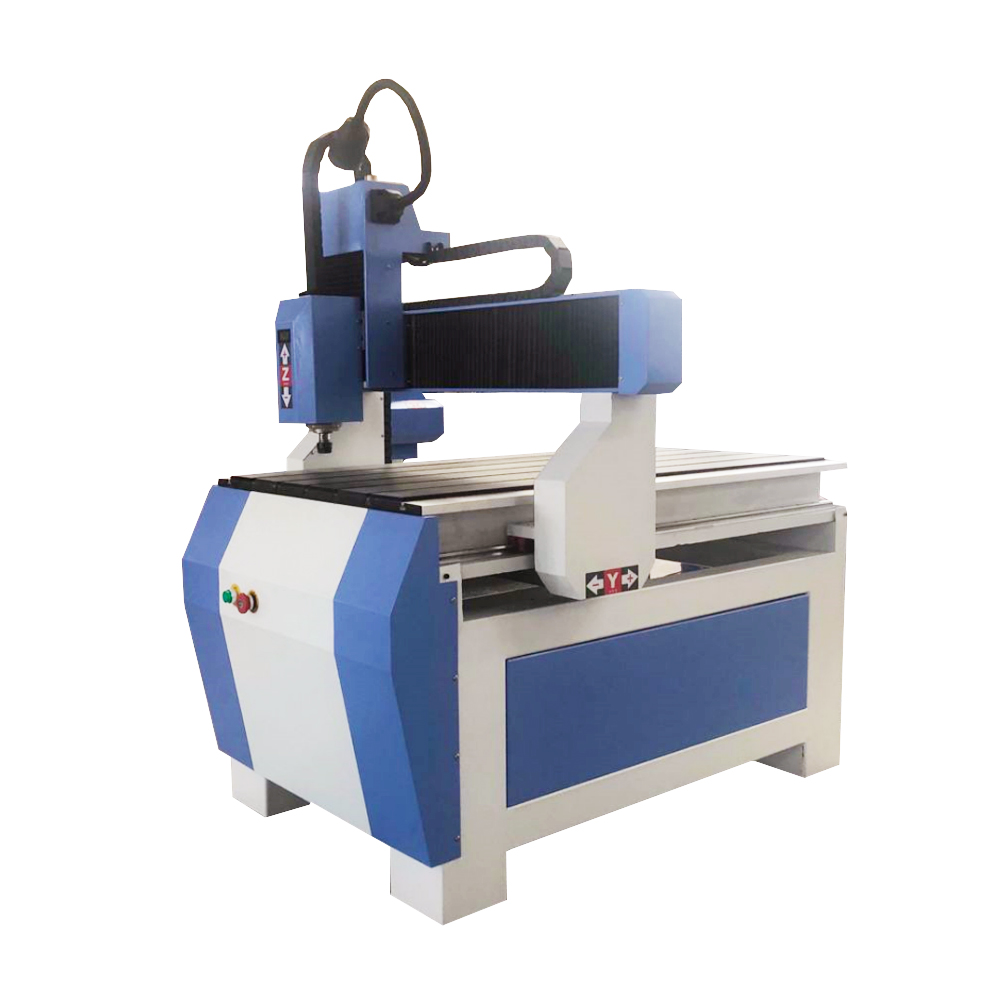

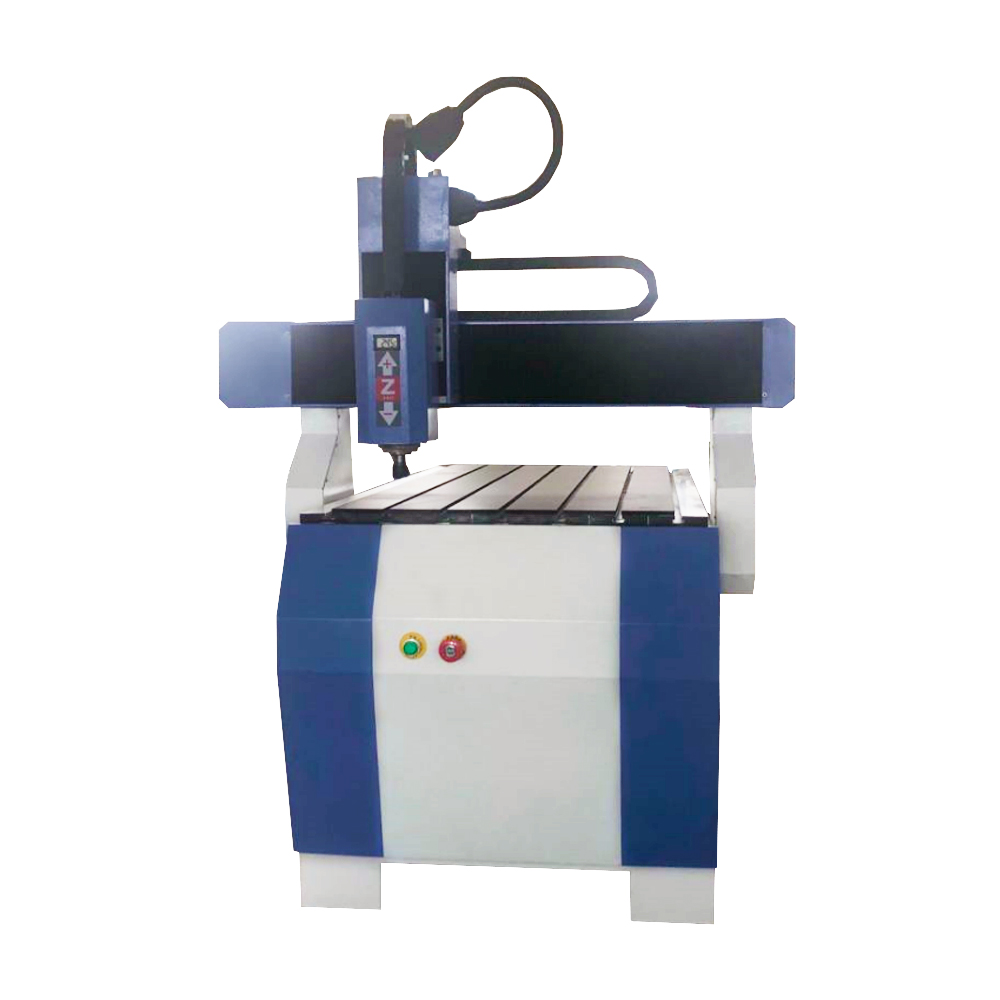

Код товара:SIT-QL-6090
Features:
• Using imported linear square rails, double row and four column ball slider, loading capacity, smooth operation, high precision, long service life. Imported high precision ball screw, high precision. USB interface type DSP
• Operating system, completely out of the computer can be remotely operated, handle type operation, the operation is more simple, more user-friendly design, a unique intelligence budget law, give full play to the potential of the motor, high-speed processing, linear synchronous music, the curve is more perfect, do not account for computer memory and can realize the automatic start and stop the cutting spindle.
• Good software compatibility, compatible type3/Artcam/Castmate/ artcut and other CAD/CAM design software.
• Six vacuum adsorption partition table, can be effective for the adsorption of different size materials. In order to solve the water circulation pump cold weather problems for water free oil vacuum pump vacuum pump can be selected imported brands.
• Using high-speed drive stepper motor and driver, Y axis adopts double motor drive, to make high-speed operation up to 35 m / min line speed of the air above, with vigorously cutting engraving spindle speed can be more improved.
Specifications:
Model |
SIT-QL-6090 |
Maximum Engraving Area |
35.4" x 23.6" (900mm x 600mm) |
Maximum Feeding Height |
105mm |
Spindle Power |
1.5KW invertor-driven spindle motor cooled by water. |
Transmission |
All Screw for X, Y, Z axis** Linear Square Guide for Y axis, Round Guide for X, Z axis |
Traveling Speed (X, Y, Z tri-axial move together) |
15m/min |
Instruction Resolution |
0.00039" (0.01mm) |
Rotational Speed of Spindle |
6000-24000rpm |
Height From `Gantry` to Worktable |
2.8" (70mm) |
CNC Controller |
DSP |
Engraving Software |
Ucancam V10, Type3, Router 8, and Type3, etc.(Optional) |
Type of Driving Motor |
Step motor |
Interface |
USB |
Instruction Formats |
G code or HPGL |
Cooling Method |
Water-cooling (you can choose air-cooling) |
Power Supply |
AC 220V, 50Hz / 60Hz. (Confirm your country before placing an order) |
Packaging Size |
65" x 58" x 47"(1650mm x 1490mm x 1200mm) |
Gross Weight |
704lb (320kg) |
Application:
Wide range of applications make it possible to process any wooden products like: advertising sign plates and acrylic cutting. Any metal or non-metal material can be processed, for example, iron, copper, aluminum, plastic plate, wood, etc. (different working tables are available depending on the materials you want to process). It’s easy to operate, multi-functional, and sturdy at an accessible price.
Specifications:
Model |
SIT-QL-6090 |
Maximum Engraving Area |
35.4" x 23.6" (900mm x 600mm) |
Maximum Feeding Height |
105mm |
Spindle Power |
1.5KW invertor-driven spindle motor cooled by water. |
Transmission |
All Screw for X, Y, Z axis** Linear Square Guide for Y axis, Round Guide for X, Z axis |
Traveling Speed (X, Y, Z tri-axial move together) |
15m/min |
Instruction Resolution |
0.00039" (0.01mm) |
Rotational Speed of Spindle |
6000-24000rpm |
Height From `Gantry` to Worktable |
2.8" (70mm) |
CNC Controller |
DSP |
Engraving Software |
Ucancam V10, Type3, Router 8, and Type3, etc.(Optional) |
Type of Driving Motor |
Step motor |
Interface |
USB |
Instruction Formats |
G code or HPGL |
Cooling Method |
Water-cooling (you can choose air-cooling) |
Power Supply |
AC 220V, 50Hz / 60Hz. (Confirm your country before placing an order) |
Packaging Size |
65" x 58" x 47"(1650mm x 1490mm x 1200mm) |
Gross Weight |
704lb (320kg) |
