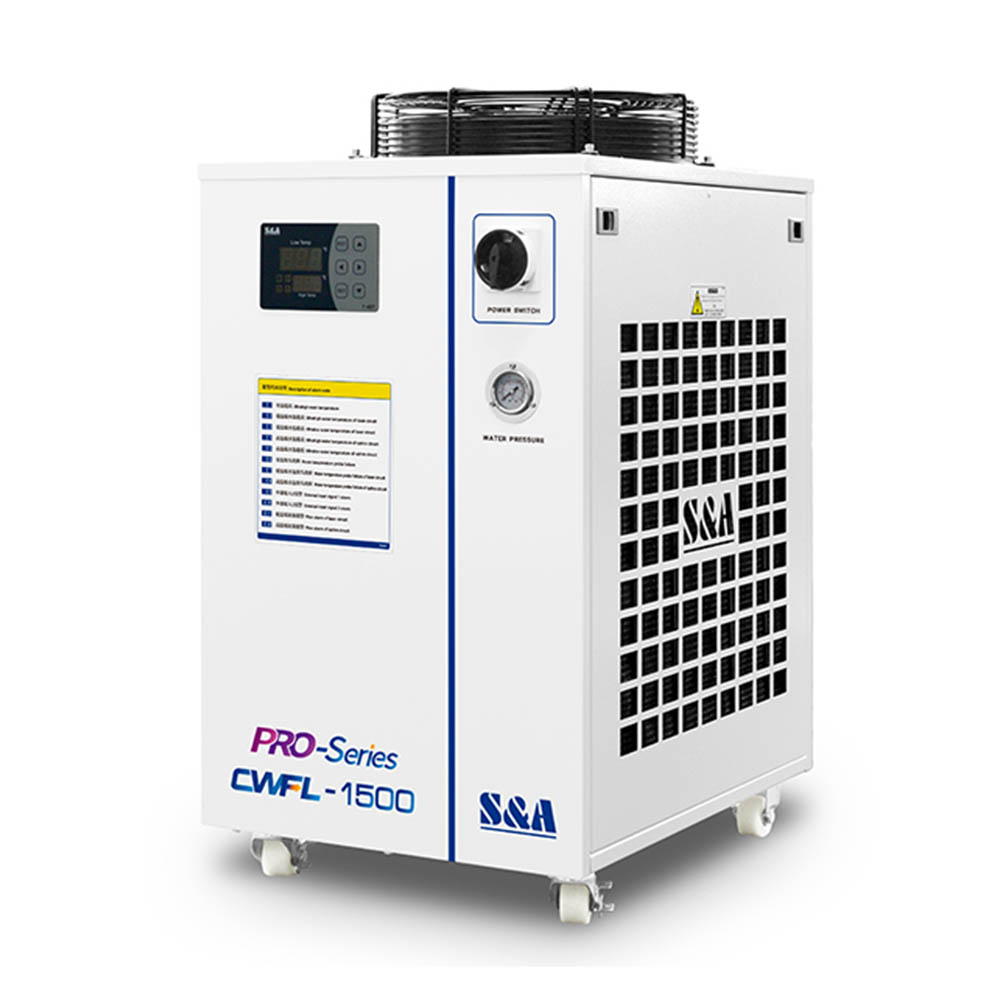

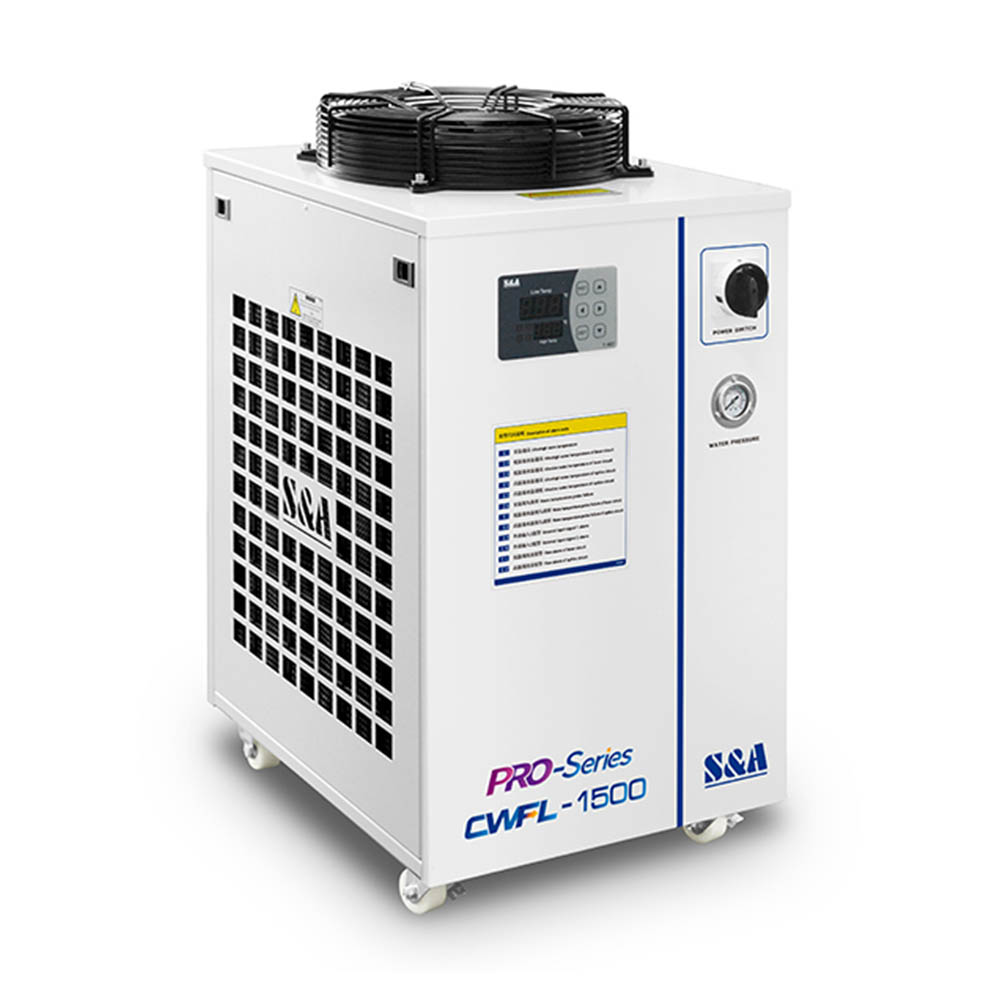

S&A CW-FL-1500AN Industrial Water Chiller for Cooling 1500W Fiber Laser, 2.30HP, AC 1P 220V, 50Hz

CWFL-1500 water chiller developed by S&A is made especially for fiber laser applications up to 1.5KW. This industrial water chiller is a temperature control device featuring two independent refrigeration circuits in one package. Therefore, separate cooling from just ONE chiller can be provided for the fiber laser and the laser head, saving considerable space and cost at the same time.
Two digital temperature controllers of the chiller are designed with built-in alarms so that your fiber laser machine can always be well protected against circulation problems or overheating. This laser water chiller is also designed with easy-to-read level check, caster wheels for easy mobility, high performance cooling fan and intelligent temperature control function which suggests water temperature can adjust itself automatically as the ambient temperature changes.

Features
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±0.5°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410a
6. User-friendly controller interface
7. Integrated alarm functions
8. Back mounted fill port and visual water level
9. Optimized for high performance at low temperatures
10. Ready for immediate use

The max. pump flow is obtained by testing the pump individually on test criteria GB/T 3216-2005.criteria GB/T 3216-2005.

Note:
1. The working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product;
2. Clean, pure, impurity free water should be used. The ideal one could be purified water, clean distilled water, deionised water, etc.;
3. Change out the water periodically (every 3 months is suggested or depending on the actual working environment);
4. Location of the chiller should be well ventilated environment. There must be at least 50cm from the obstacles to the air outlet which is on the top of the chiller and should leave at least 30cm between obstacles and the air inlets which are on the side casing of the chiller.

PRODUCT INTRODUCTION

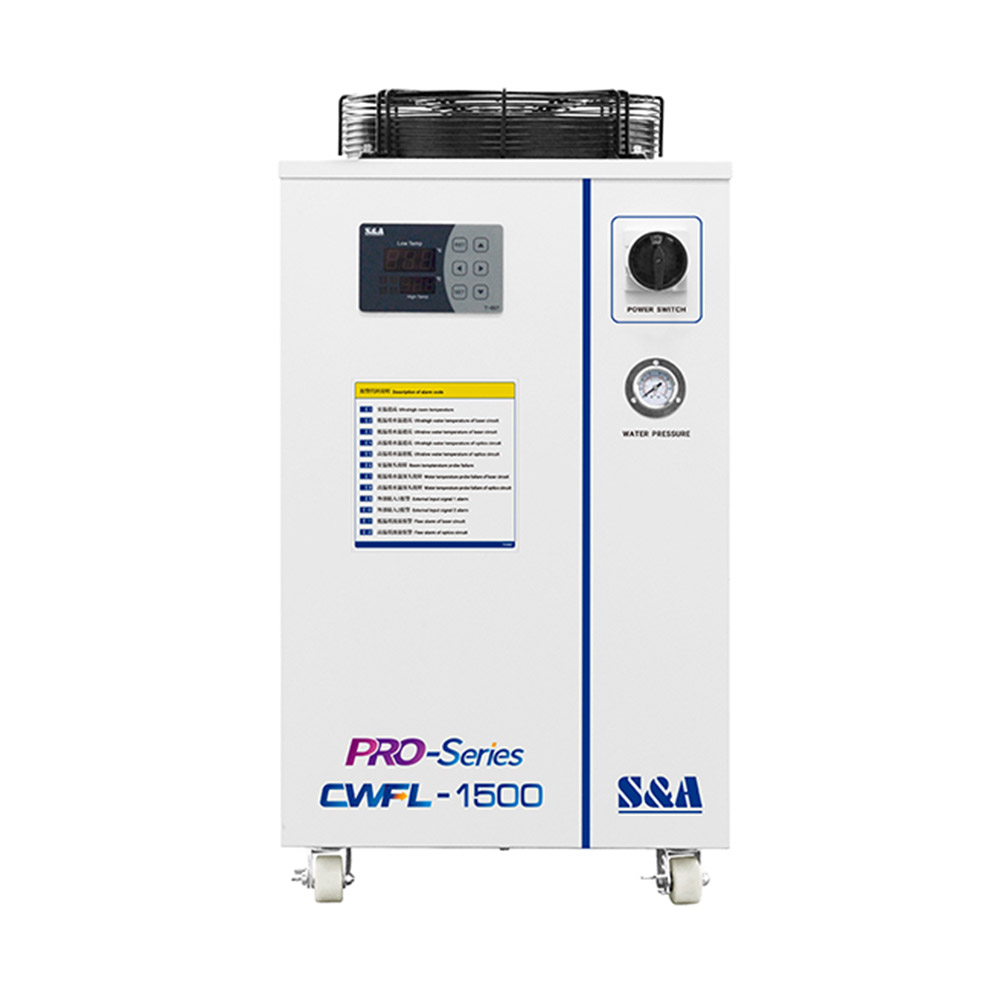

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

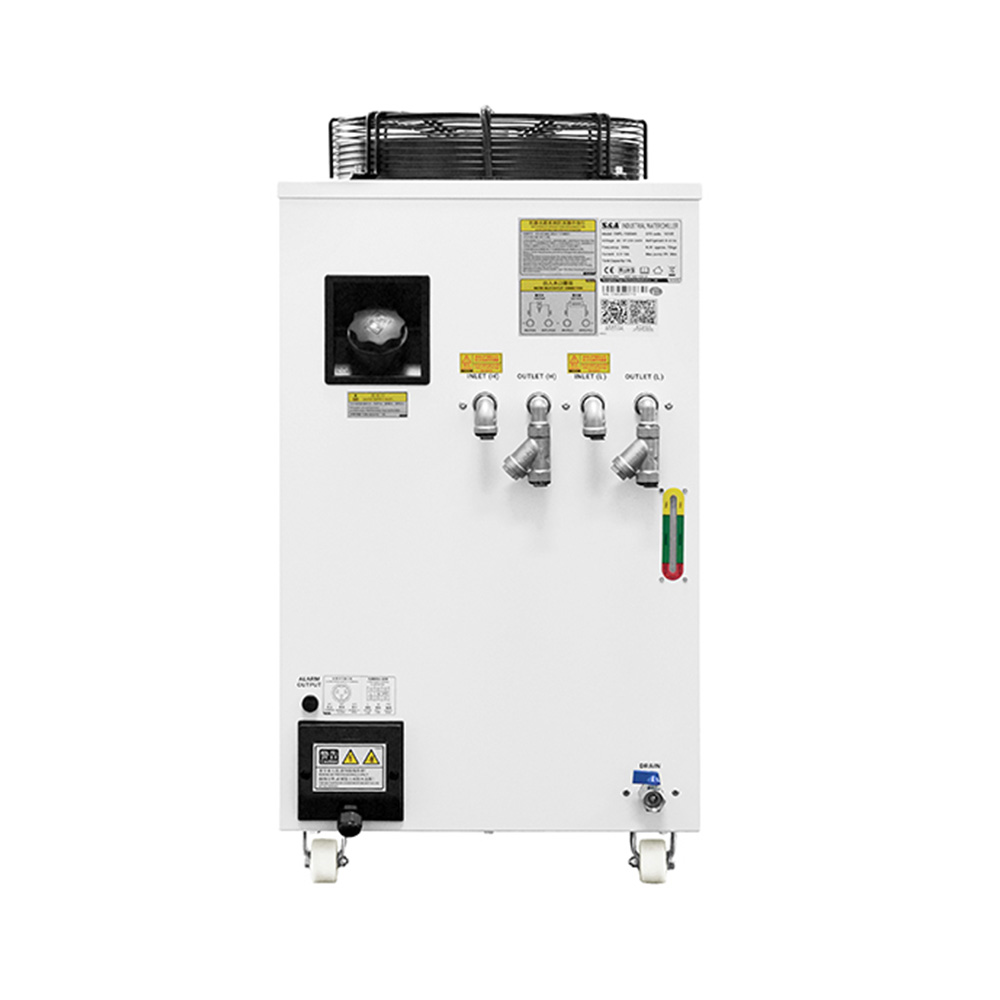

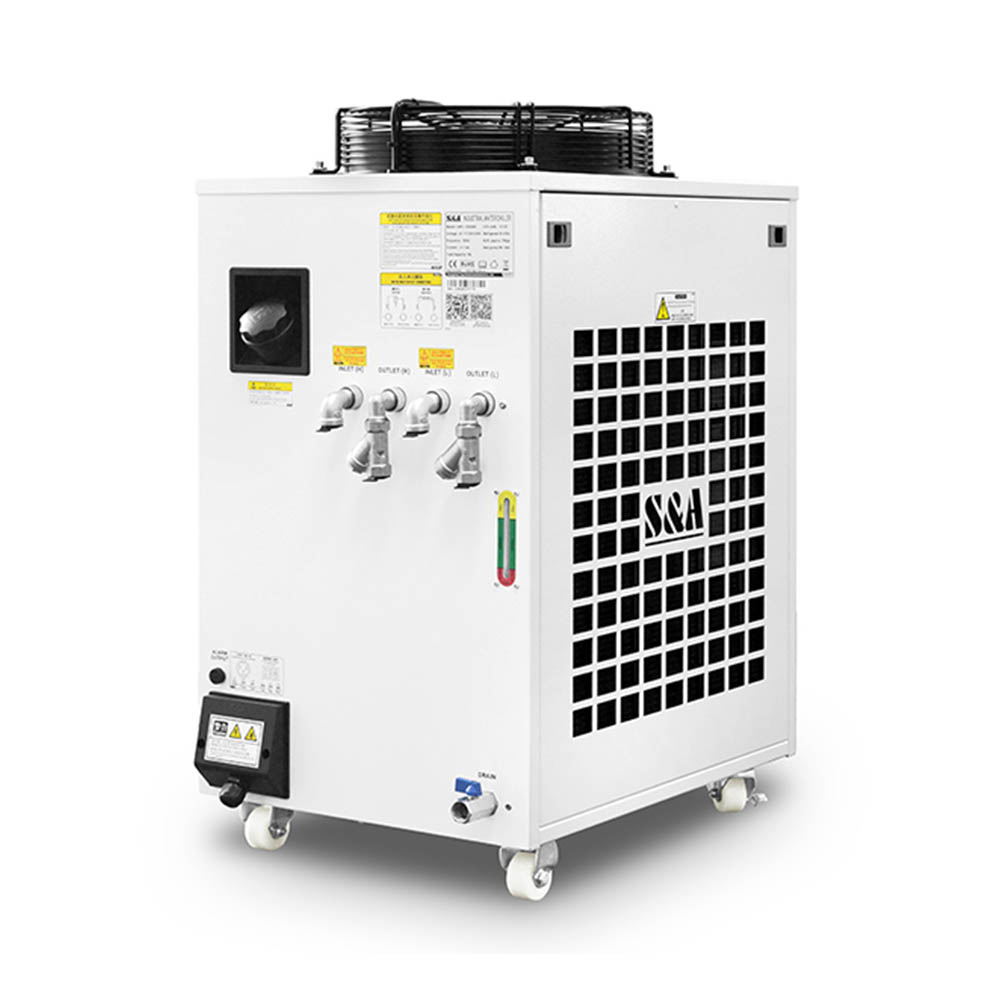

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.

Water level check lets you know when it’s time to refill the tank

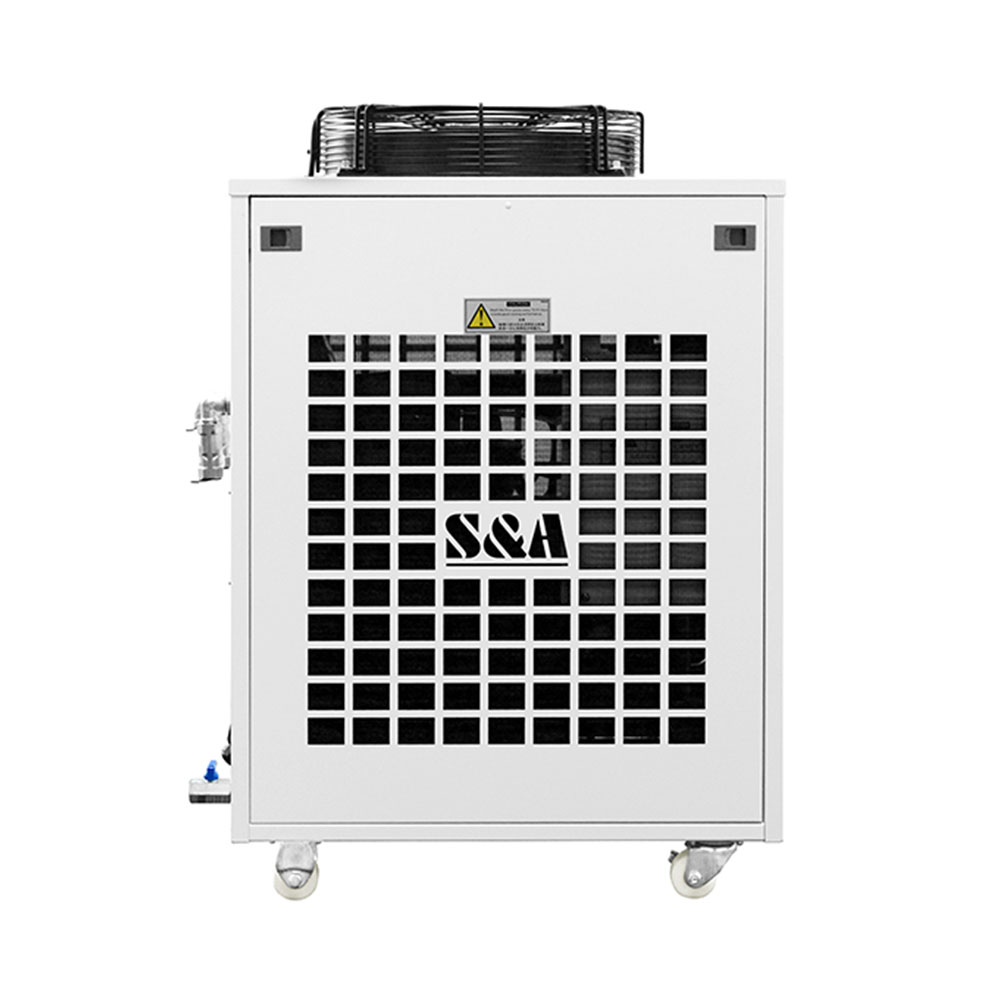

Cooling fan of famous brand installed.
With high quality and low failure rate.

Alarm Description

CWFL-1500 water chiller is designed with built-in alarm functions.
E1 - ultrahigh room temperature
E2 - ultrahigh water temperature
E3 - ultralow water temperature
E4 - room temperature sensor failure
E5 - water temperature sensor failure
E6 - external alarm input
E7 - water flow alarm input

CHILLER APPLICATION

PRODUCT WORKING PRINCIPLE

CERTIFICATE

The max. pump flow is obtained by testing the pump individually on test criteria GB/T 3216-2005.criteria GB/T 3216-2005.
