Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be WIN7 WIN10 32-bit/64-bit with PCI slot, But win7 is better

Advantage:

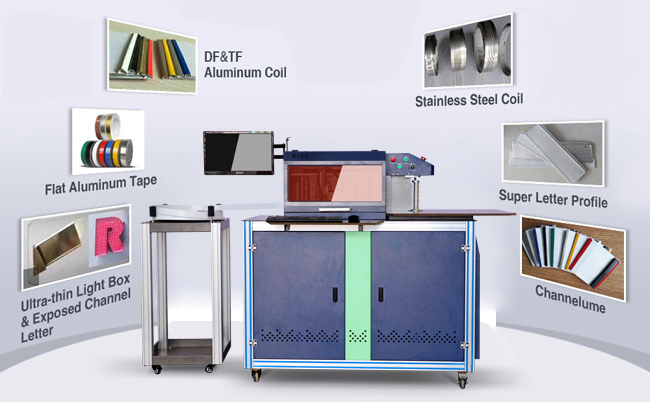

New type of three-in-one CNC bending machine, there are two working systems and different bending axis, one for stainless steel and iron, another for aluminum. When we need to slot and bend different materials, Don’t need exchange the cutter .we just need to convert into another system. and it is convenient for us to change the bending axis, just three to two minutes. Therefore, this new machine can save time and improve efficiency.

Features:

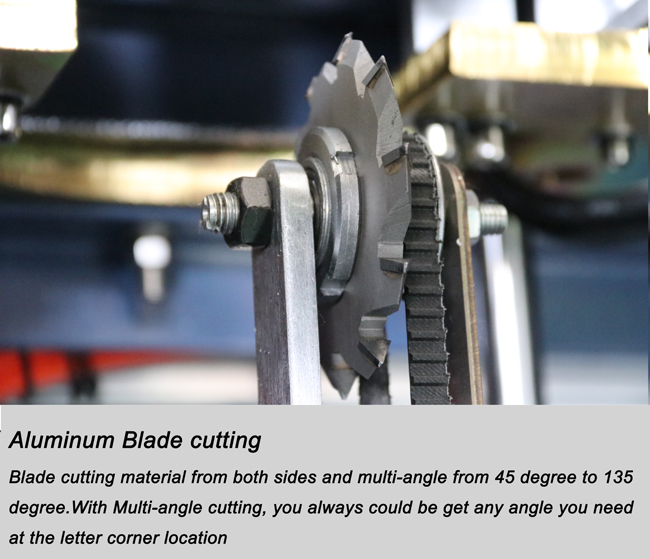

1 Cut angle from 45 to 135 and it can control depth precision, by using the CNC axis. the processing of various types of profile bending angle precision.
2 Intelligent control of the software, intelligent inspection to avoid collision in character bending process.
3 Telescopic bilaterally symmetrical bending mode of the unique, the greatest degree of bending process to avoid interference, and greatly improve the bending strength
4 Stainless steel gouging unique, single slotted mode profile milling groove ,according to different characteristics of arbitrary switching material, the operation is simple and convenient.
5 Can read muti-vector file like the format such as AI,DXF matching with the engraving file perfectly.
6 Use rotary type handwheel to adjust the feed depth ,the operation is simple and convenient
7 Intelligent imported square guide rail and a high precision ball screw can adjust the depth of grooves.
8 Special specification and equipment is available

Product Details:

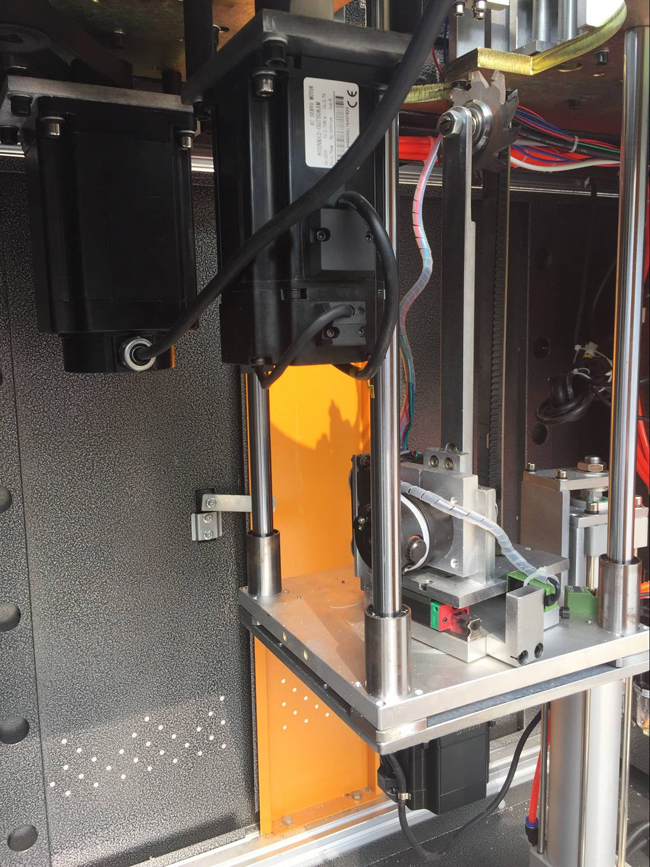

Main Parts:

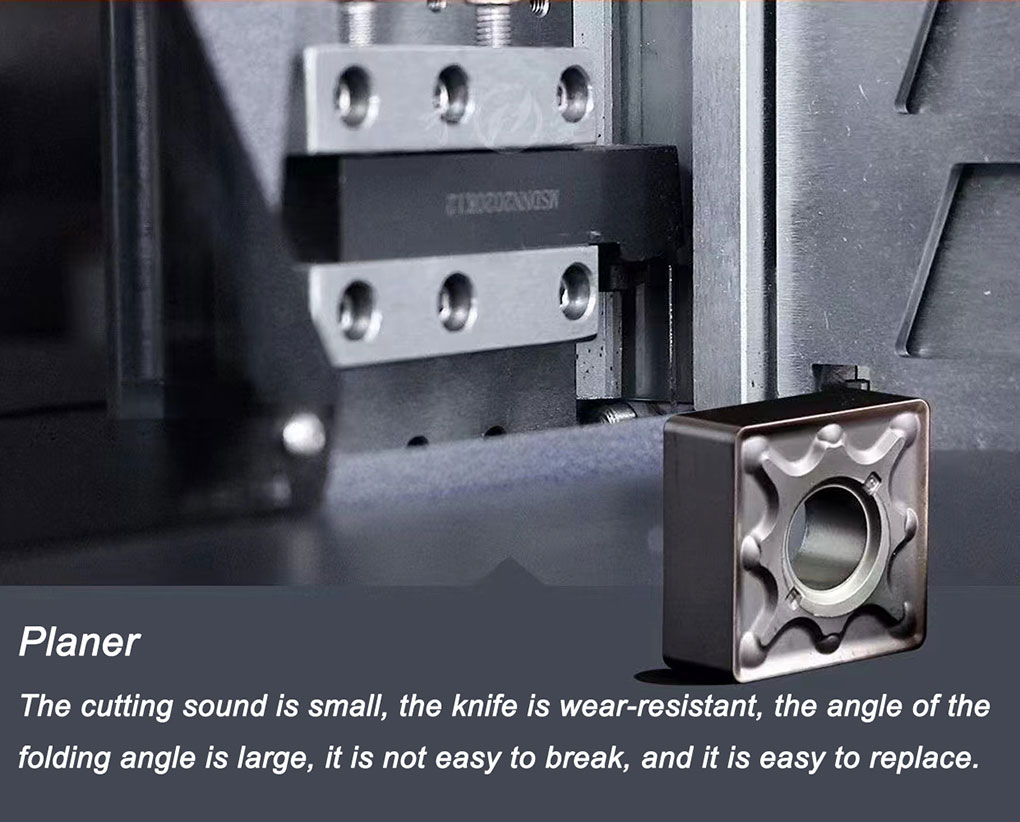

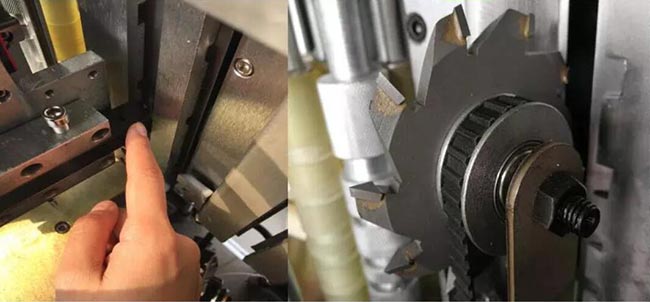

1)Two Cutters: One is for Stainless Steel and the other is for Aluminum. While working, these two are always on the machine together, just no need to change. When making Stainless Steel, just use the Stainless Steel cutter; when making aluminum, just use the aluminum one.

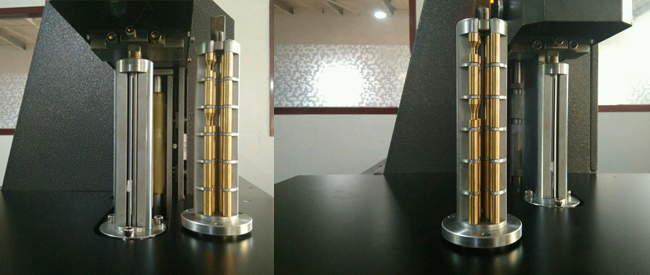

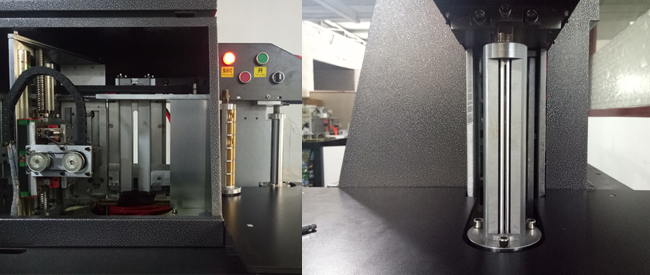

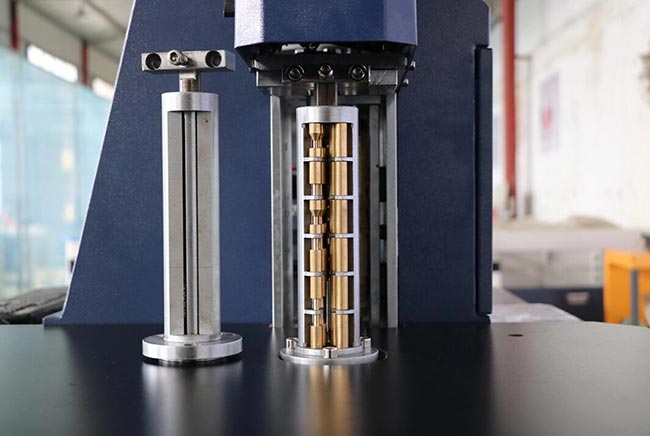

2)Two Benders: Just like the two cutters above, One is for Stainless Steel and the other is for Aluminum. The difference is these two benders are separate on the machine. When we make different materials, we need to change, just 2-3 minutes will be ok.

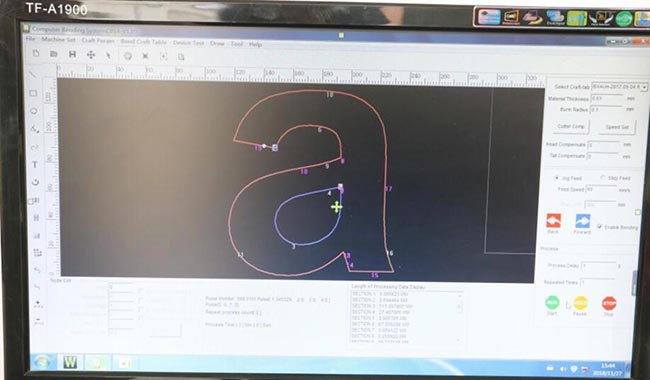

3) Software: Easy to study and operate.


1. Encoder control feeding length, Auto-Compensation on slipping.

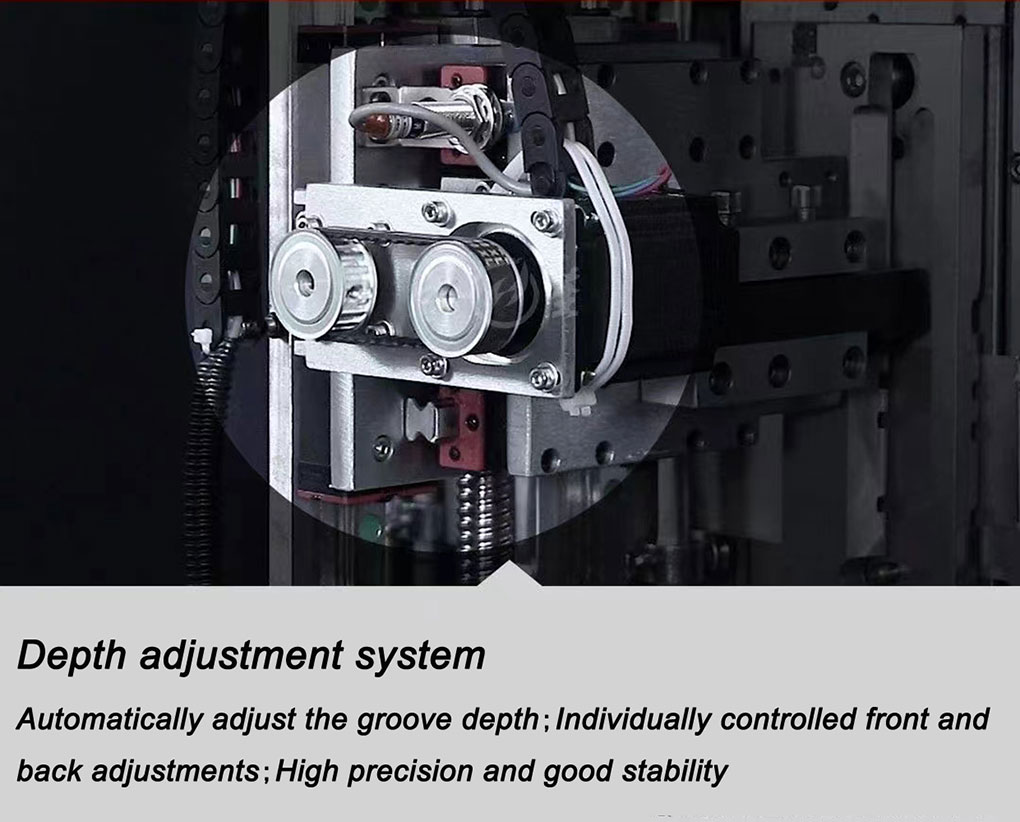

2. Adjust cutting depth automatically by software.
3. The whole machine is adjusted by software, no any working part adjusted by hand anymore.
4. Easy to Adjust. With more functional software, one software setting could work on different materials.
5. Bender Device(Head) adopt Steel Structure:
As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of the motion card, we use high-class CPU. Its cost comes up to 2-3 times than other machine suppliers.
7. The software is more functional: compensation on the straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI, DXF, and PLT format. Perfect match CNC Router.

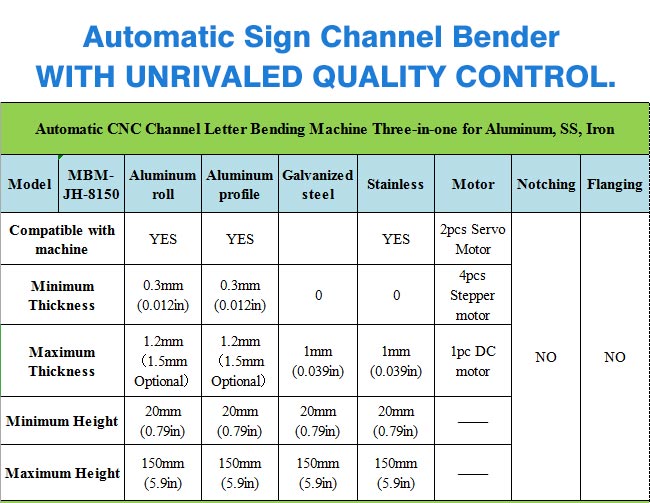

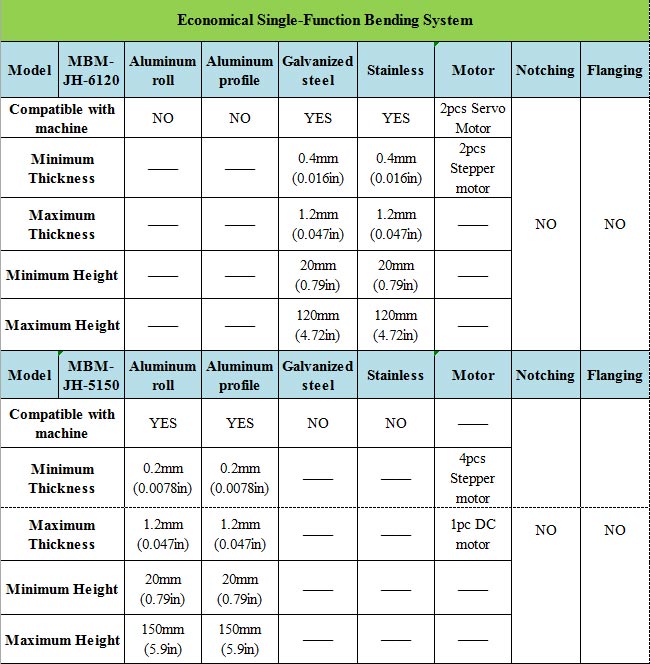

TECHNICAL SPECIFICATIONS:

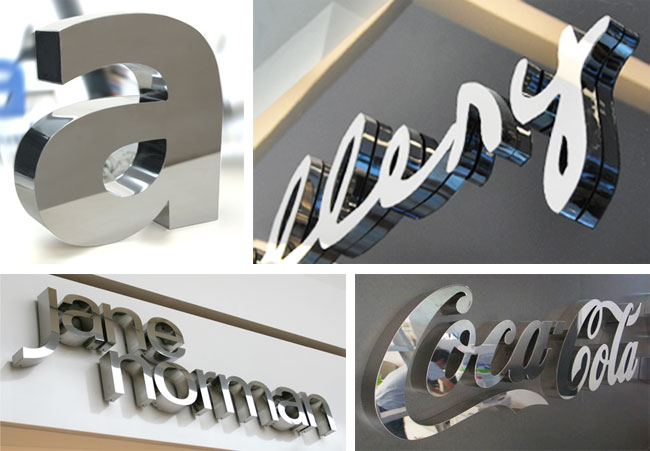

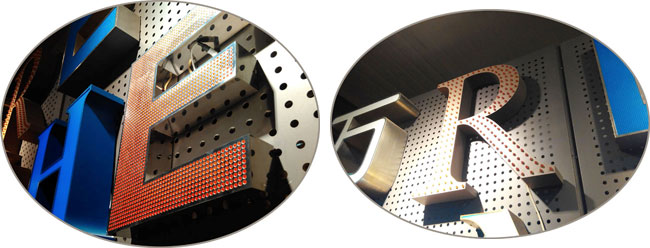

Samples:

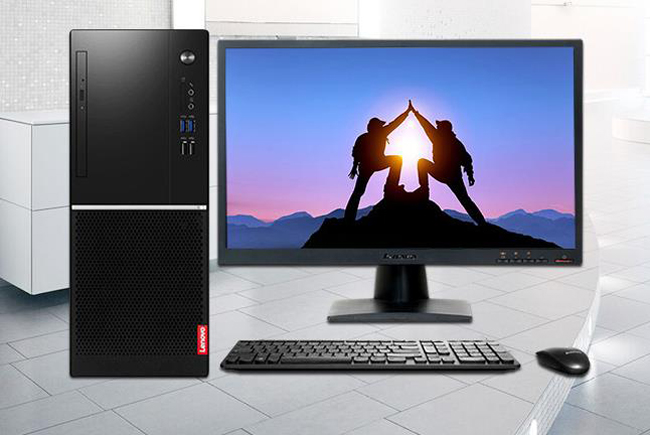

If you choose the option with computer, computer pictures as follows

Package:

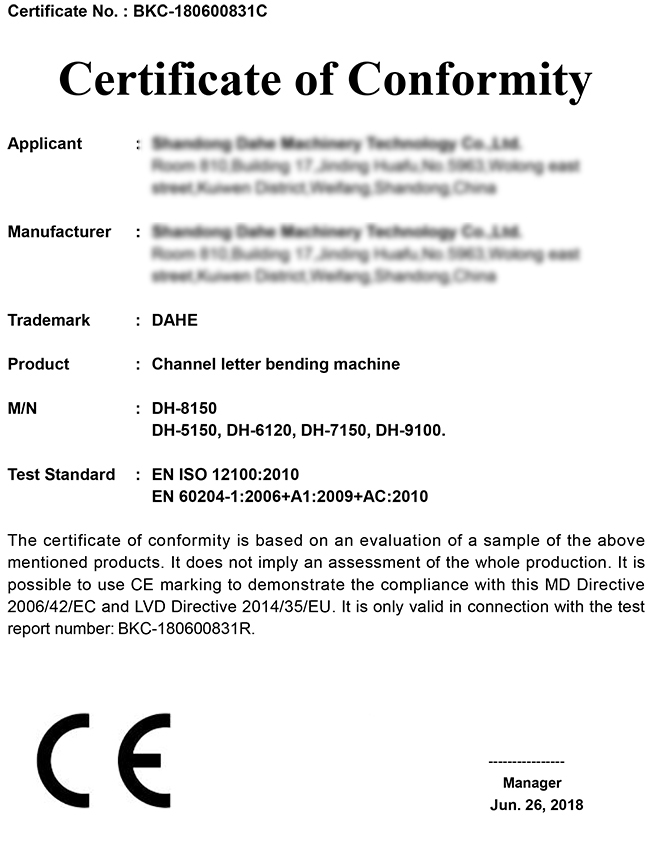

Quality report:
Customer Case:

Exhibition Gallery:
