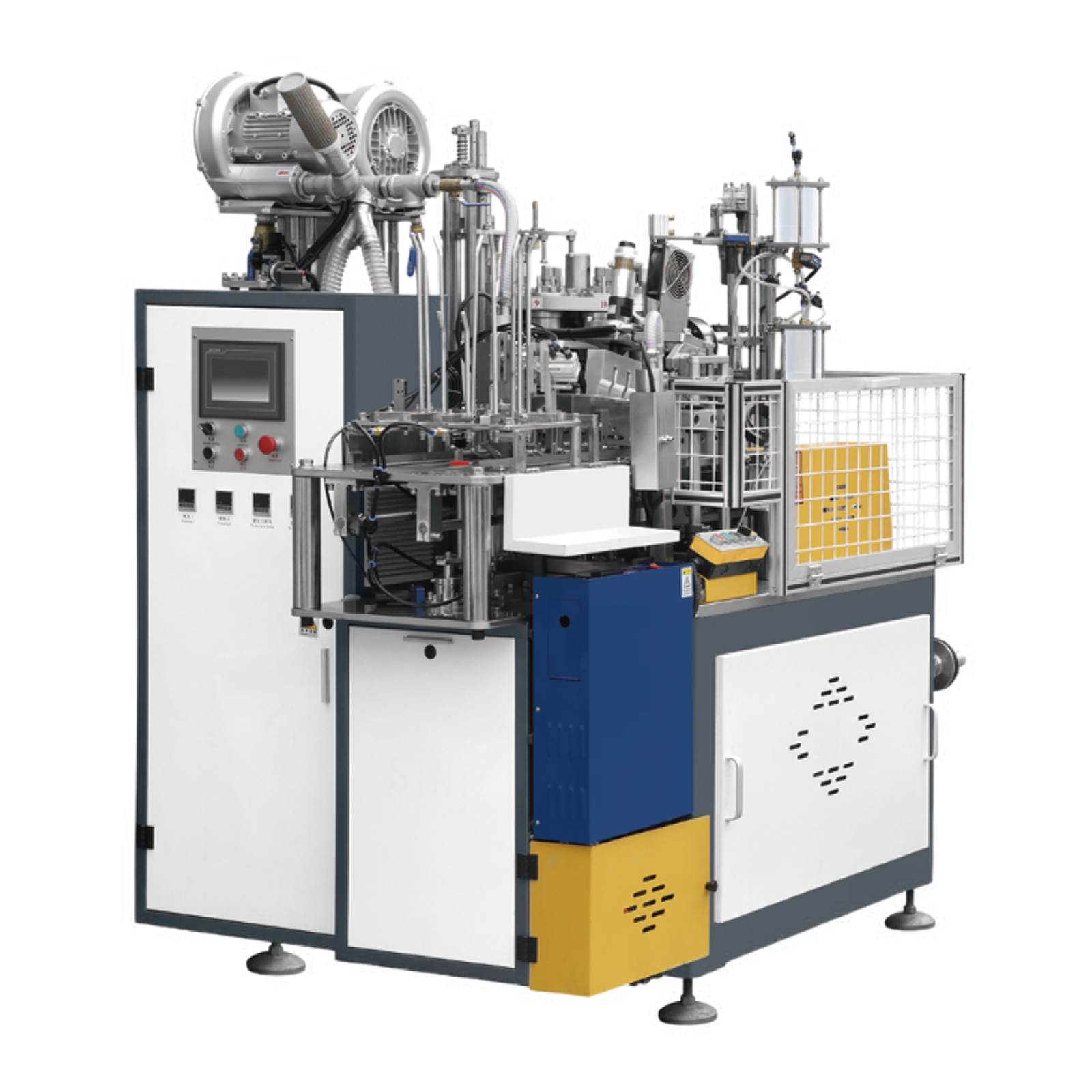

Single Plate Middle Speed Paper Cup Machine 4-16oz 120pcs/min
  • Single Plate Middle Speed Paper Cup Machine 4-16oz 120pcs/min
  • Single Plate Middle Speed Paper Cup Machine 4-16oz 120pcs/min
  • Single Plate Middle Speed Paper Cup Machine 4-16oz 120pcs/min
  • Single Plate Middle Speed Paper Cup Machine 4-16oz 120pcs/min

Увеличить изображение

Single Plate Middle Speed Paper Cup Machine 4-16oz 120pcs/min

Код товара:SIT-XXL-JBZ120

  • Цена : 2 863 804 руб./комплект (Срок поставки 75-90 дней)


  • Мин. заказ : 1 комплект

  • Вес брутто : 2200кг

  • Количество: комплект(s) Общая стоимость : 2,863,804 руб.
  • Добавить в корзину
Single Plate Paper Cup Machine
- The high-speed single plate paper cup machine is mainly used for producing disposable paper cups. It is suitable for both cold and hot drinks. The machine has several advantages, including an open cam drive system, a continuous integrated spray lubrication system, a modular die frame, and a PLC control system. It also features a three-station mechanical arm to hold the cups.
- The open cam drive system ensures that the paper cups are made efficiently without any interruptions. The continuous integrated spray lubrication system ensures that the machine runs smoothly with no downtime. The modular die frame allows for easy maintenance and adjustments, making the machine user-friendly. The PLC control system ensures that the machine runs efficiently and accurately. The three-hole mechanical arm holds the cups securely, preventing them from falling or getting stuck.
- One of the biggest advantages of this machine is its energy efficiency. It uses minimal electricity and does not require a lot of maintenance, which helps to keep operating costs low. Additionally, the machine's compact size takes up less space, making it an excellent choice for smaller production facilities.
Overall, the high-speed single paper cup machine is an excellent investment for businesses that require a fast, reliable, and cost-effective way to produce disposable paper cups efficiently. Its features and benefits make it an excellent choice for companies in the food and beverage industry, and we highly recommend it to anyone looking for a reliable and efficient paper cup making machine.
Specification:
Model JBZ120
Cup size 6oz-16oz
Raw material Single and double PE coating paper, PE more than 15g/m²
Paper thickness 160-320gsm
Bottom paper thickness 150-230gsm
Top mouth diameter 60mm-90mm
Bottom diameter 40mm-70mm
Bottom depth 5mm-8mm
Height 54mm-135mm
Angle 3-8 degree
Capacity 80-120 cups per minute
Main motor power 1.5kw
Total power 16kw
Energy consumption 7-7.5 kw/ hour
Air consumption 0.4m3/min, 0.5-0.8Mpa
Weight 2200kg
Dimension 1900x1350x2000mm
  1220x950x2080mm
Details:

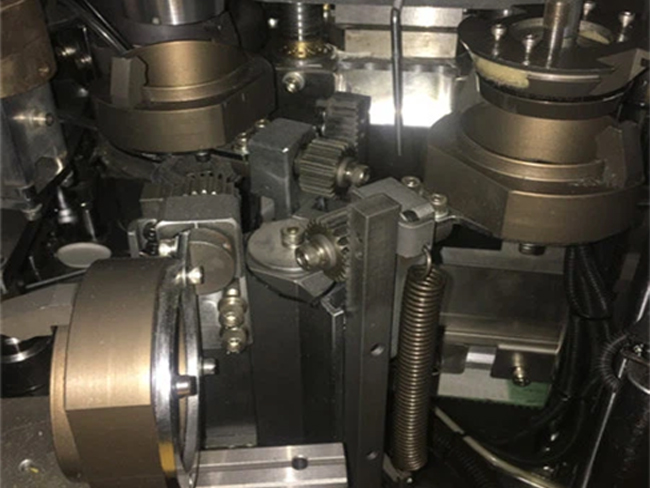

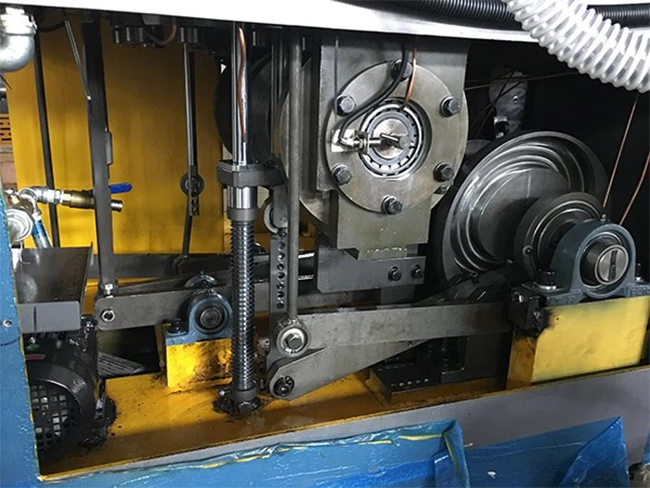

1. Open cam transmission system. Unique hanging cam design to reduce pollution.
2. Automatic lubrication system. Save your labor and easier your daily work.

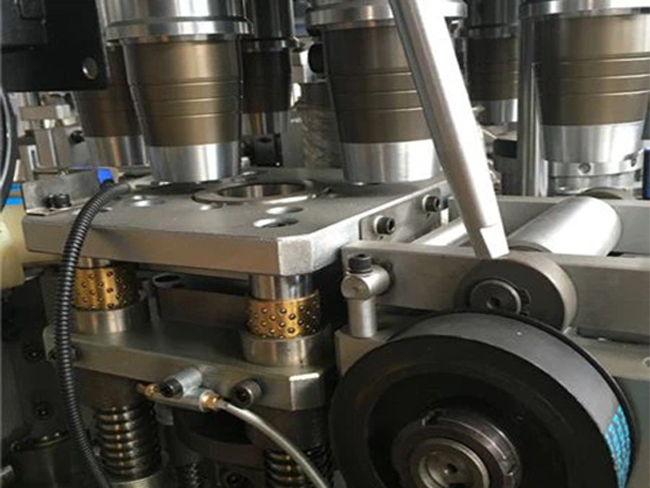

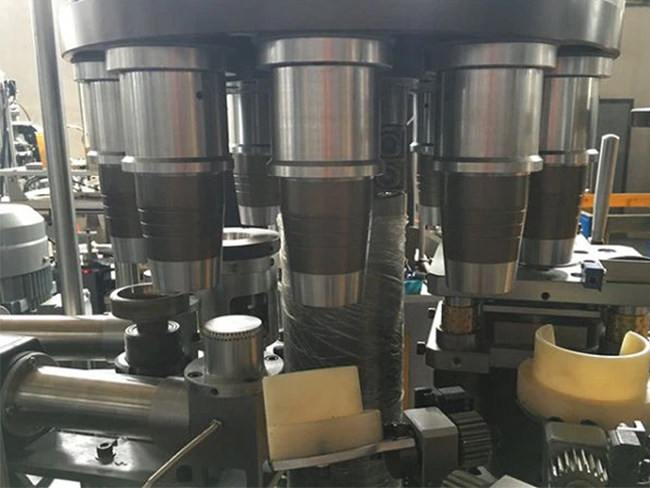

3. Aluminum Mold, longer using life with less abrasion.

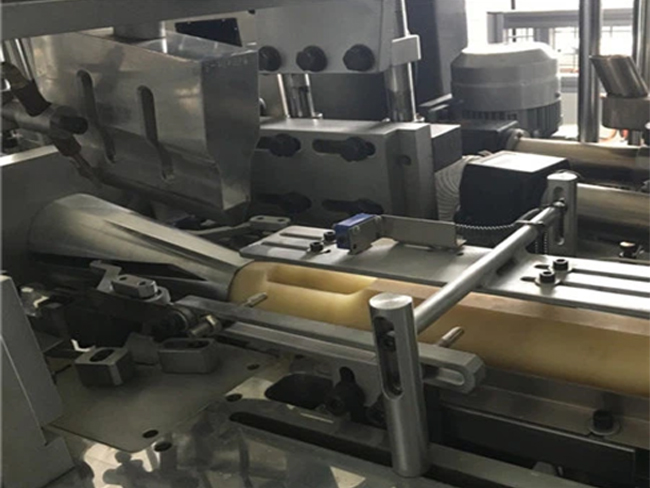

4. Ultrasonic unit guarantee fast and good quality sealing.
5. Unique robot hand design. Make sure no transformer of cup body.

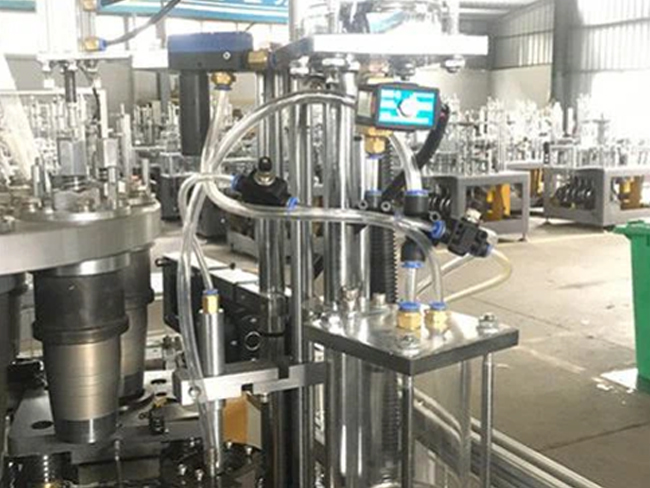

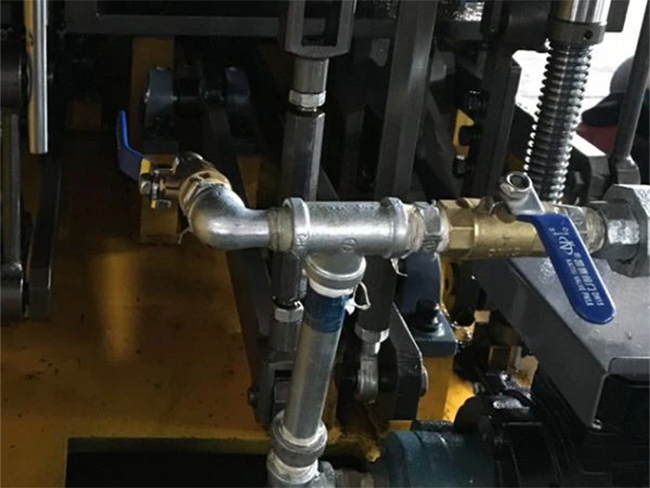

6. Circulatory silicon oil lubrication system. Save the usage of silicon oil and keep machine and cups clean.
7. Bottom paper feeding uses servo motor.
8. Using two heaters to heat up the bottom, ensure the bottom sealing and guarantee high speed production.
9. PLC control system
Application:
