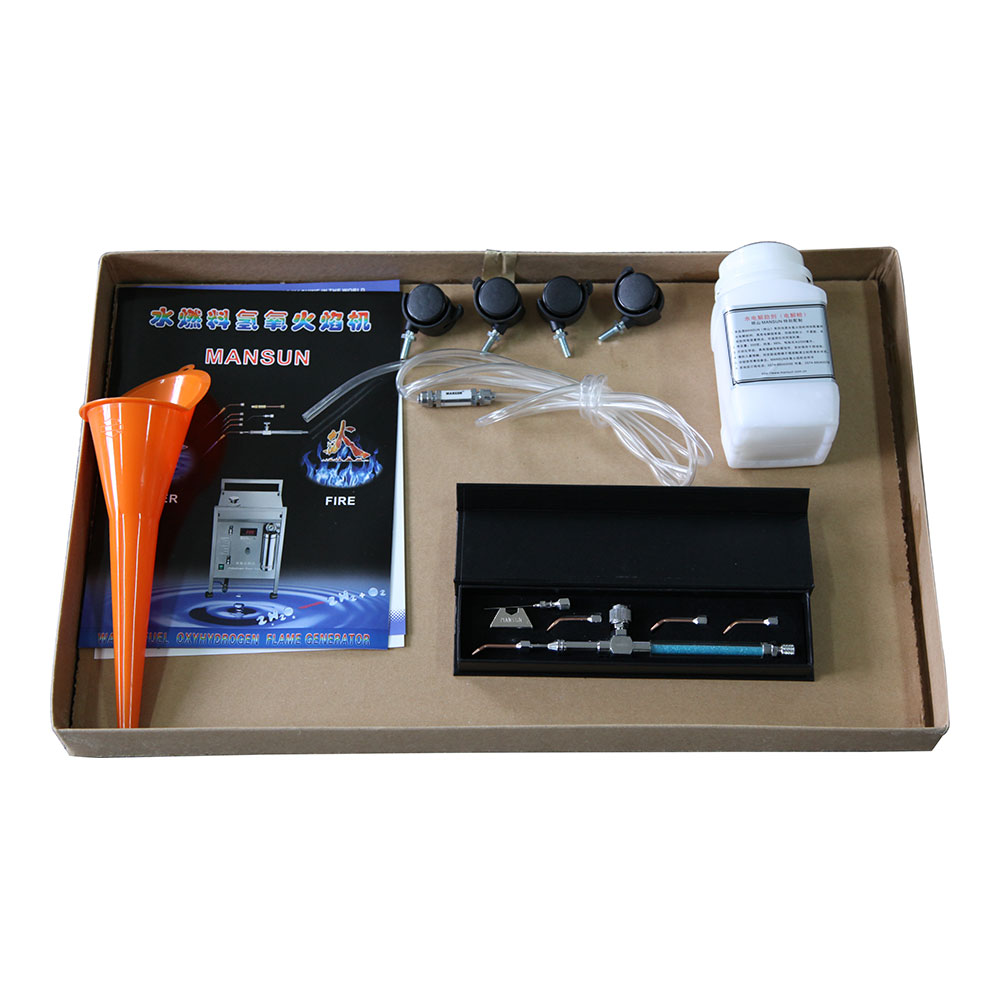

Упаковочный лист

	Аппарат	1
	Горелка	1
	Пластиковая воронка	1
	Приспособление, задерживающее проскок пламени	1
	Электролит (порошок)	1 бутыль (исключительно морская грузоперевозка)
	Инструкция	1

P. S.: Порошок электролита (NaOH or KOH) запрещен к доставке курьерскими компаниями. Вы можете приобрести электролит в местном магазине.
Бутыли в 500г хватит на использование в течение 3 - 4 месяцев.

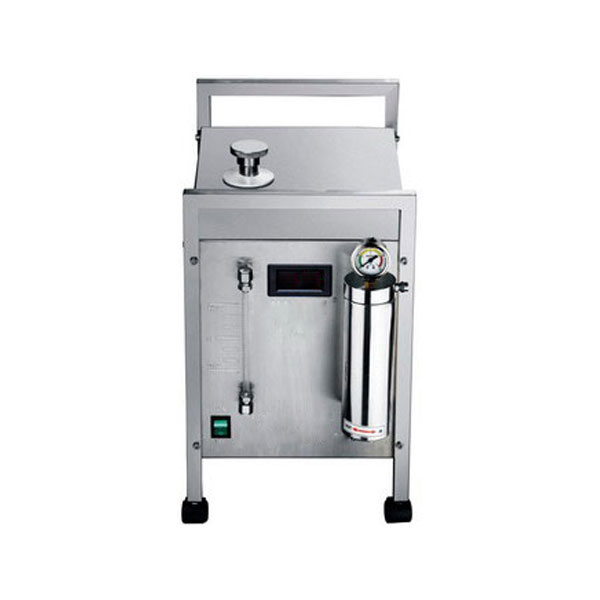

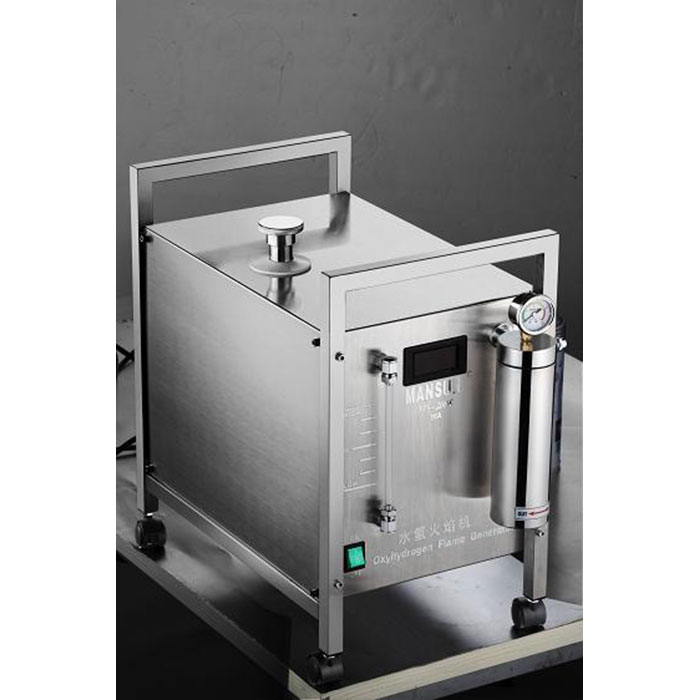

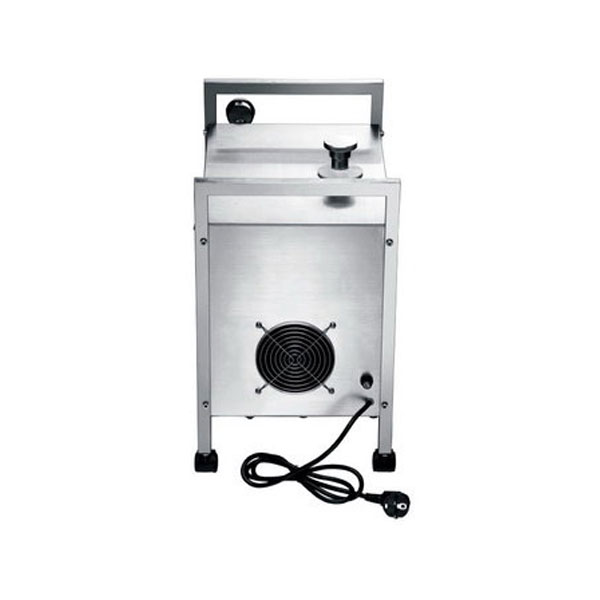

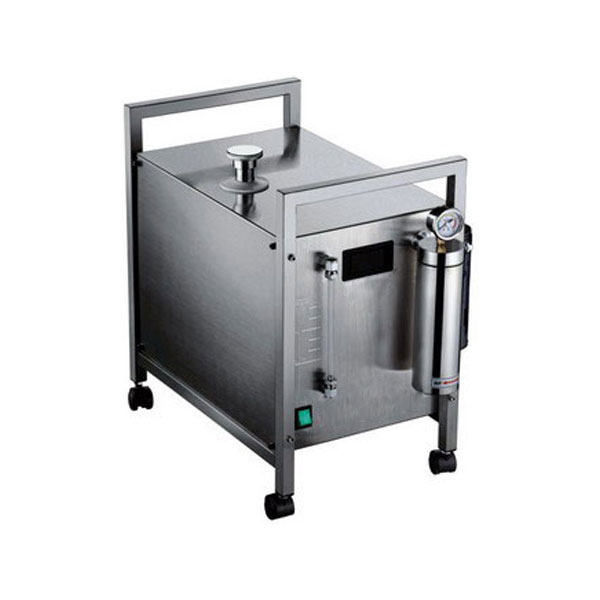

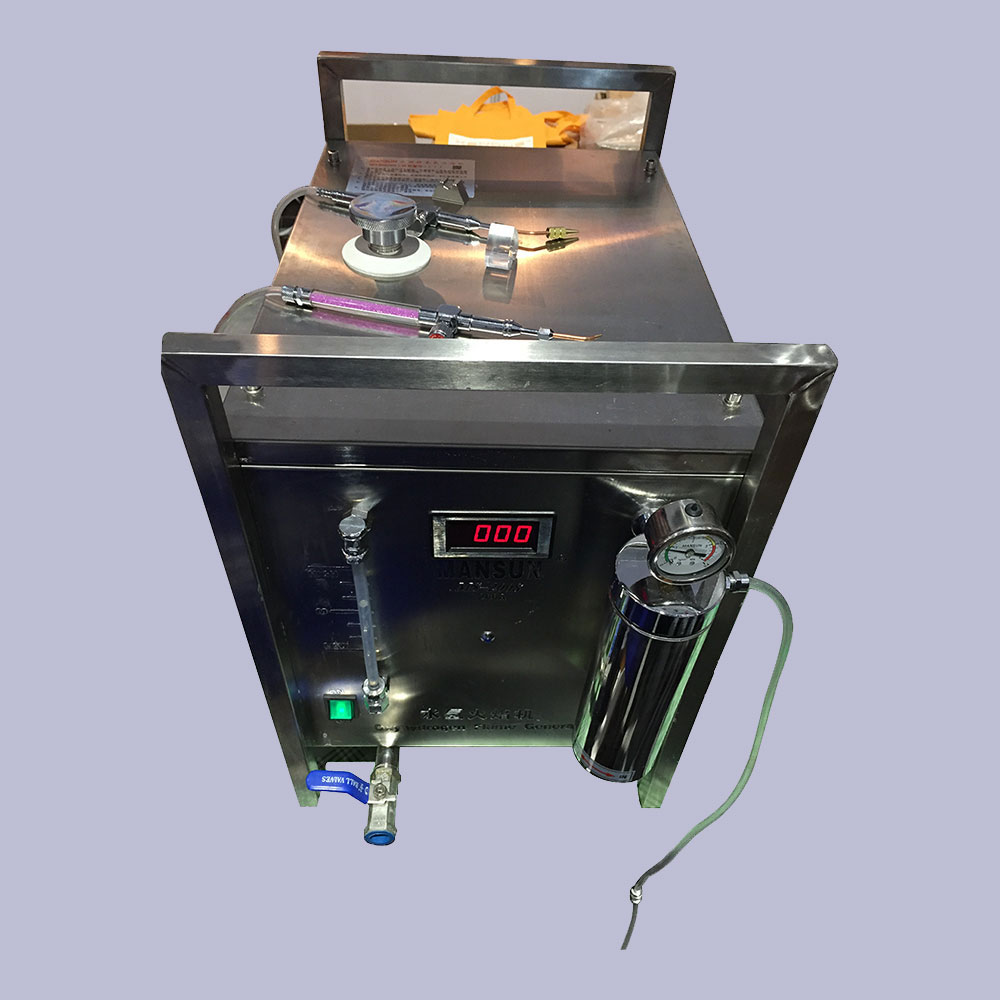

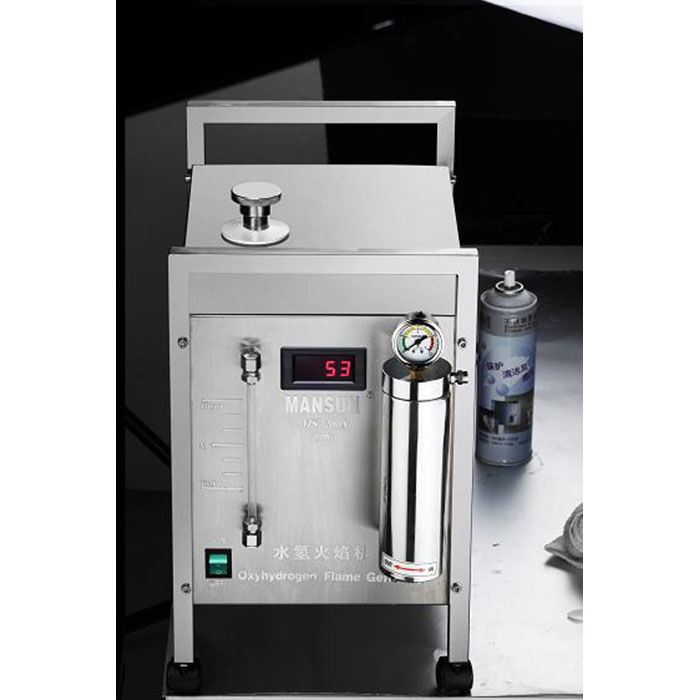

60A 300W Stainless Steel Made Oxygen Hydrogen Flame Generator Acrylic Polishing Machine, 55-60L with 1 Gas Torch free

60A 300W Stainless Steel Made Oxygen Hydrogen Flame Generator Acrylic Polishing Machine, 55-60L with 1 Gas Torch free
2 year warranty, Portable, exceptional durability, the design life of electrolytic container is up to 10 years, and Electrical parts can be used within 5 years.
With CE Certificate, Have been applied the design patent of appearance. The Application No. of Appearance Patent: 201003061013.X

Used for:
The small 60A 300W HHO gas flame generators are used for wide use, such as jewelry welding, acrylic polishing, and ampoule bottle sealing etc. to replace use of LPG or other gas for fuel.In jewelry industry, it is called “water welding machine” or “hydrogen & oxygen melting / welding machine”, while in organic glass industry, it is called “fire-Polishing Machine”.
For welding, it featured low cost, welding fact, safety and low energy consumption.

What is the Oxyhydrogen Generator Principle?
Oxy-hydrogen generator is also called brown gas generator, Acrylic Polishing Machine, Water Welding Machine, or HHO gas generator, which is an integrated machine of utilizing the principle of electrolytic water to generate oxyhydrogen and ignite the mixed gas of oxyhydrogen to produce high temperature open fire. The surface of plexiglass gets melted meeting the fire then becomes smooth like polished. Hence, it is called the flame polishing machine. The precise and safe oxyhydrogen flame solves the difficulty of impossible polishing concave surface.


Advantages:
APM-MS Series Water Hydrogen Flame Machine possesses the following leading key technologies:
High Energy Conversion Ratio: The HHO gas generator polishing welding machine has high performance and high energy conversion ratio on the technology of special electrolysis power supply for large current. Can continuously run long time (it is allowed to add water on the way)
Super Long Lifespan: The technology of special anode material on anti-corrosion and anti-electro oxidation. The cathode stainless steel in resistance of electrochemical corrosion; the high efficiency electrolysis gas, heat emission, integration, long lifespan electrolysis tank processing technology. (The lifespan of anode is designed for 25000 hours, if we calculate by 8 hours a day and 300 days of working each year, the using lifespan will be more than 10 years.)
Operation is Safe Absolutely: The technologies of pressure sealing on oxyhydrogen mixed gas less than 0.3PA, anti-explosion and entire machine safety. The oxyhydrogen mixed gas is very flammable and explosive gas hence it easily causes internal explosion. It is required to ensure human safety in all the unexpected situations. With the leading technology backfire-proof oxyhydrogen flame gun, exquisite and precise in full brass quality.

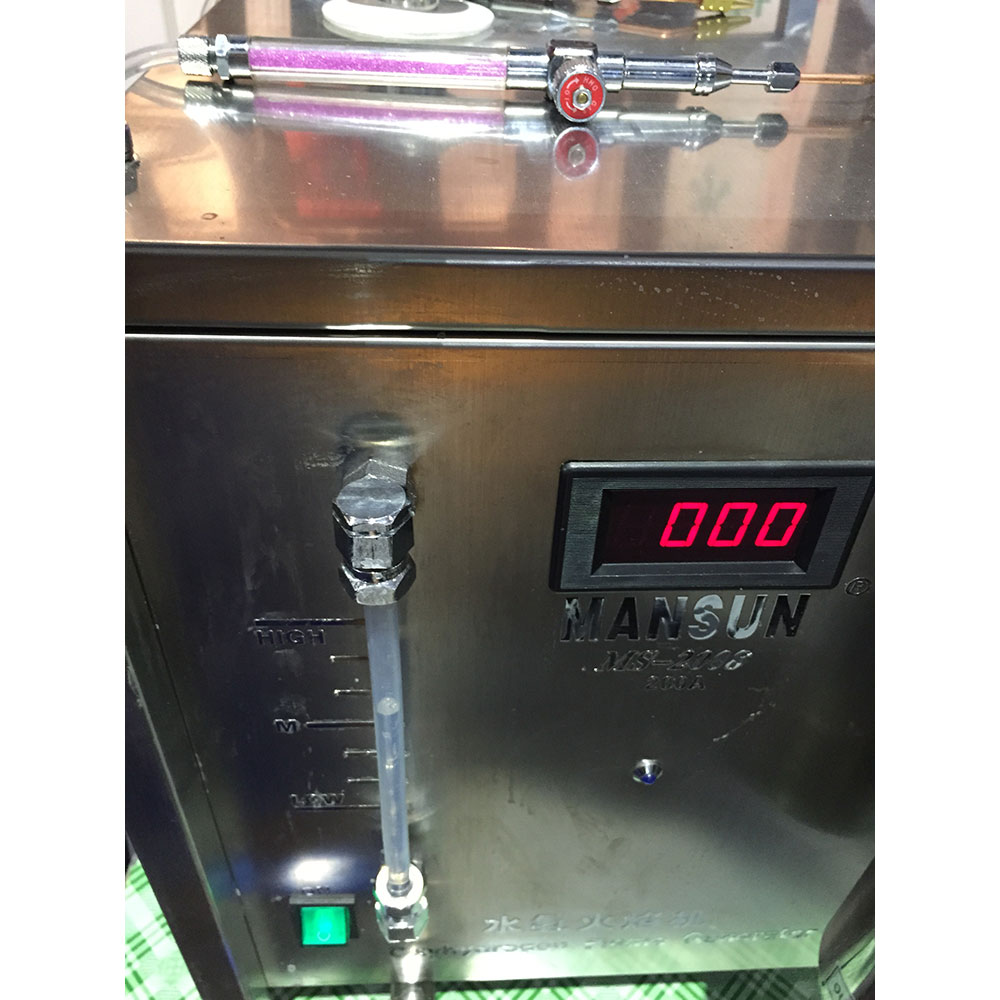

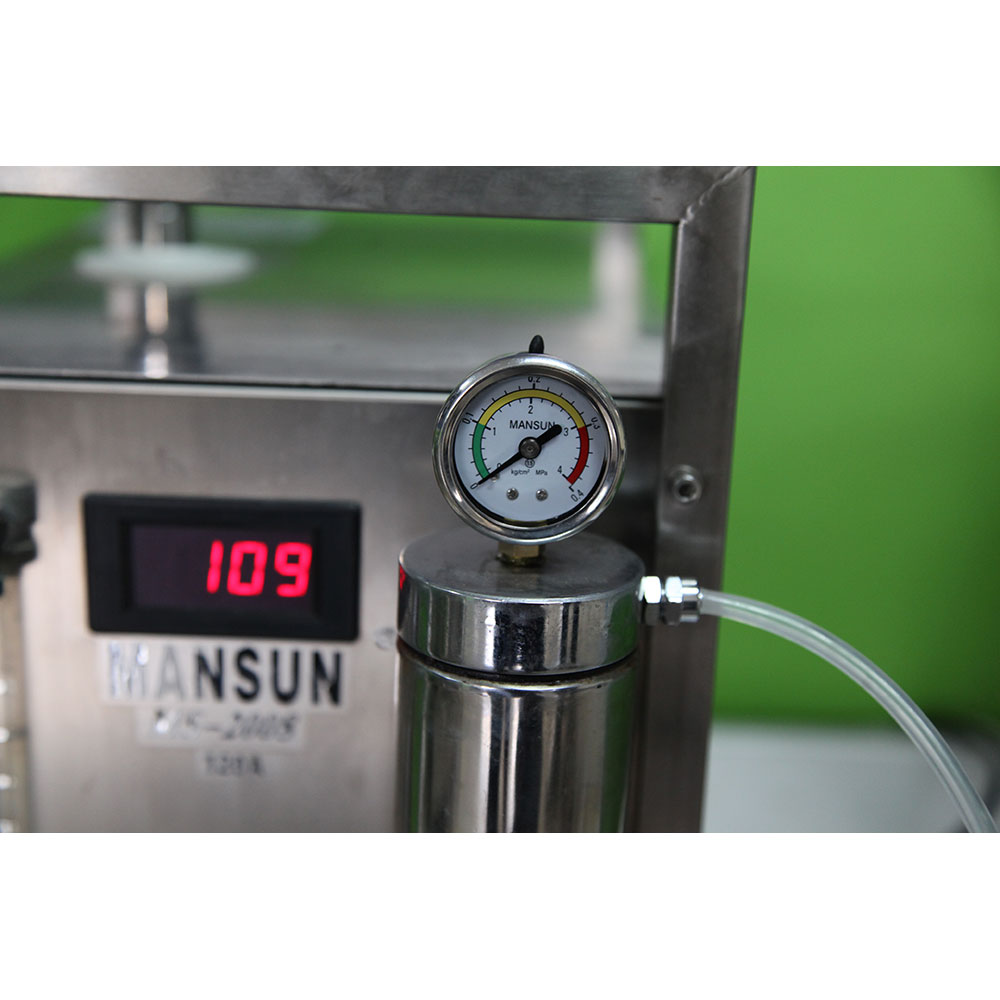

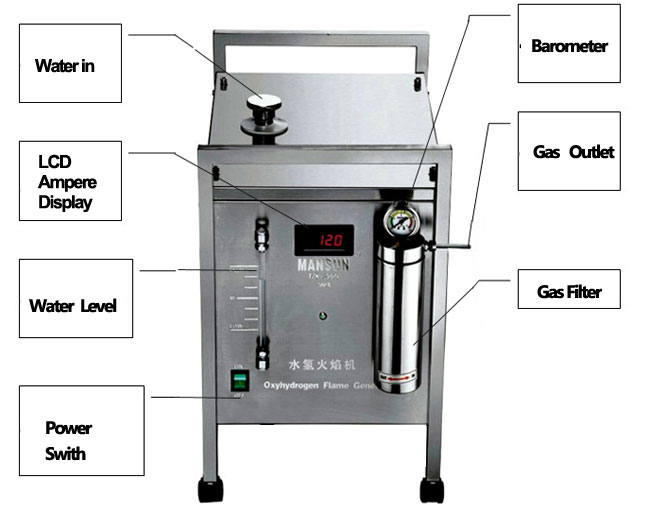

Easy Operation: The mechatronic auto control system utilizes digital indicative application for which it selects digital ammeter, stainless steel pressure gage of oil-injection quakeproof, and stainless steel diaphragm pressure controller.
Appearance Patent: It is beautiful and durable. The appearance made of not only the stainless steel but also a protective structure of welded square tube. The precise shell made and formed by CNC equipment. The Application No. of Appearance Patent: 201003061013.X
Energy Saving: Because the combustion of the oxyhydrogen gas generated by the electrolyte is the water vapour, and the oxyhydrogen gas has no toxicity and smell to human, and no harm to the environment too.

Remarks:
* The longer sized flame signifies sufficient fire it gives, and the higher polishing efficiency it provides. This is suitable for larger area polishing with high efficiency. If the flame is thin and shorter, it means there is not enough fire, the flame will scan smaller area and leave tack and result low efficiency which is generally attributed by the small machine with less power and gas. Normally, the flame can reach 5 cm long that satisfies common requirements. For different work pieces, the user shall choose related machines with correspondent power and flame. As for the very thin acrylic, please don’t use bigger fire.
*According to the thick or thin edge, choose the nozzle type and fire it with the lighter.
*The flame tilts 45 degree toward the edge. Keep a proper distance to scan it evenly.
*According to the practical experience, you should adjust the flame’s scanning distance, speed or change the nozzle. After a few rounds, you can skillfully operate the machine.

Details:

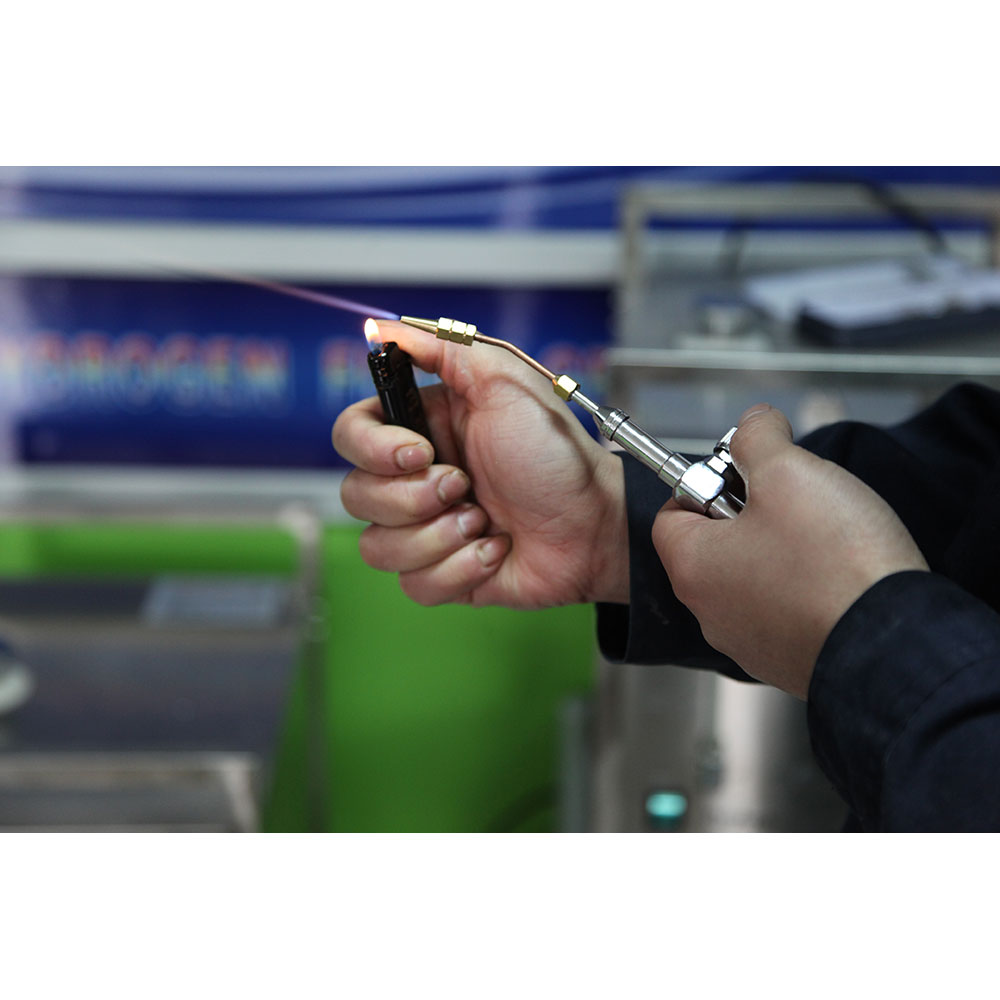

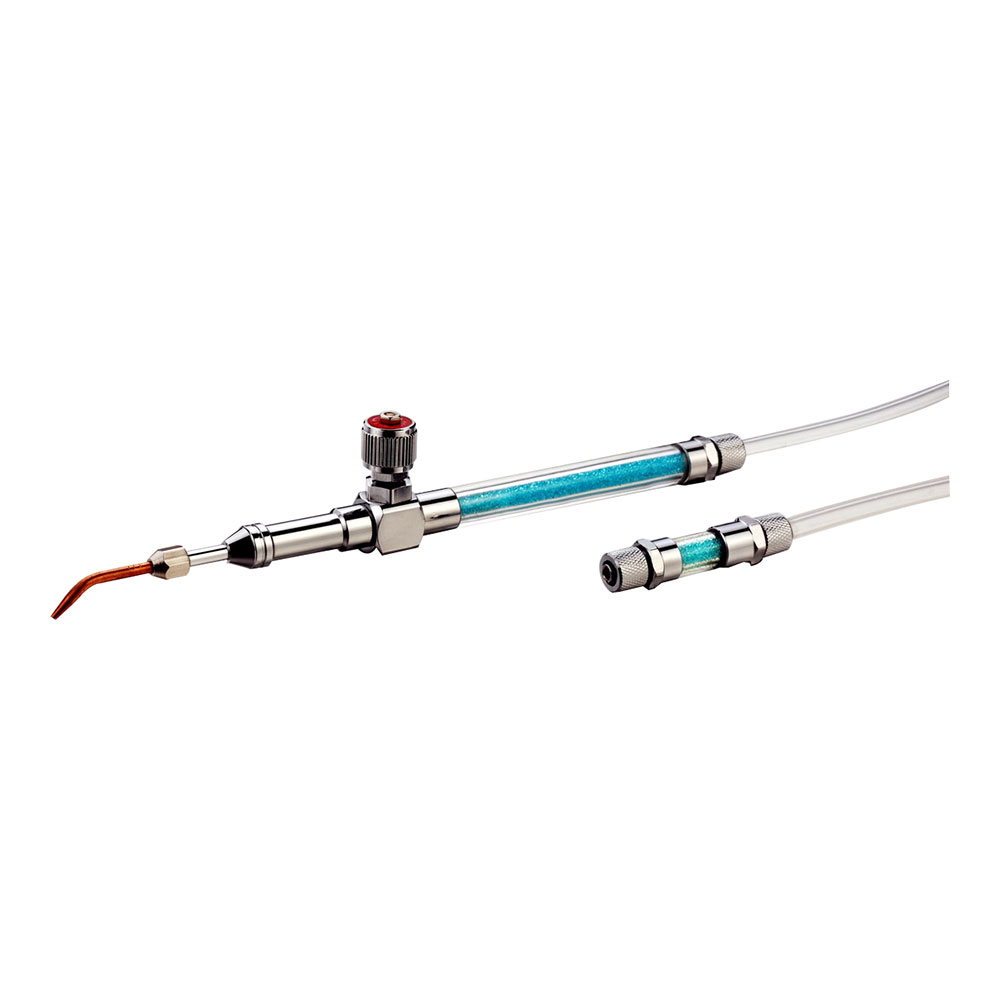

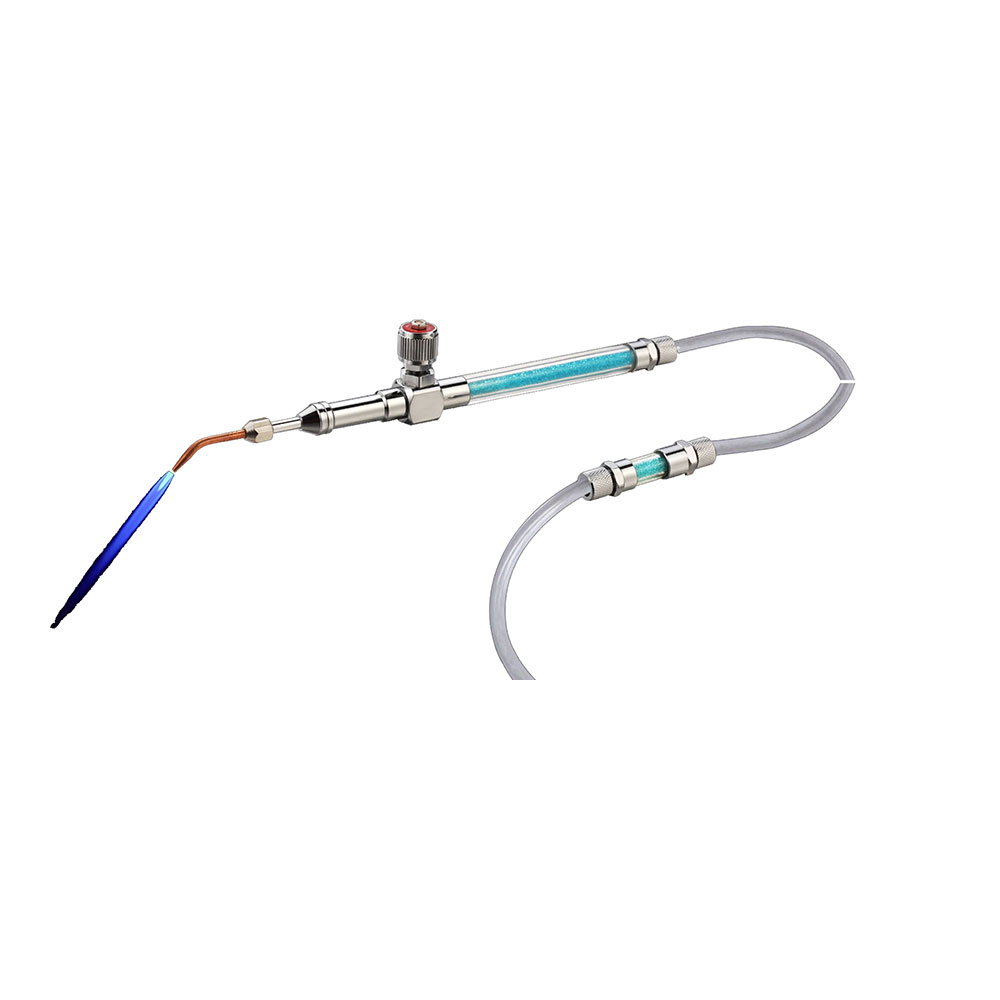

Fabrication of Special Flame Gun Gas Torch: With the leading technology backfire-proof oxyhydrogen flame gun, exquisite and precise in full brass quality. Torch body: Adjust the flow and flame by controlling valve (turn clockwise to close down). Copper nozzle: Copper nozzle is durable and can be used for a long time. Different model of nozzle gives off different size of flame; from small to big are pinhead, model A, model B, model C, model D, extra-long big nozzle and special nozzle. For acryl polishing, choose nozzle according to the thickness of the material. Generally, we recommend model 0.3mm, 0.4mm nozzle for 60A 300W generator, model 0.4mm, 0.5mm nozzle for 70A 350W generator and model 0.5mm above for 120A 600W generator. If using multi-torch, choose nozzles by experience.

Technology of Electrolytic Cylinder Tank

The stainless steel structure of electrolytic cylinder tank is single or double. Commonly, the bigger volume in size, the thicker stainless steel cylinder tank in thickness and heavier in weight, and naturally the cost is higher as well; hence the double electrolytic tank is obviously bigger in volume of gas generation.	The technology of special anode material on anti-corrosion and anti-electro oxidation. The cathode stainless steel in resistance of electrochemical corrosion; The high efficiency electrolysis gas, heat emission, integration, long lifespan electrolysis tank processing technology.

Application:
1. Polish irregular acrylic surface. After polish, the work piece will be smooth and shiny.
Acrylic flame polishing: HHO gas acrylic flame polishing machine combusts the hydrogen gas and oxygen gas produced through water electrolysis as the fuel, and polishes the rough edges of the acrylic products with the high temperature generated by the flame. The polished edges with the high temperature will be glittery and bright.
The HHO gas acrylic flame polishing machine is suitable for all kinds of thick, thin and irregular shape (curved edge, edge angle, sunken face) acrylic (plexiglass) polishing. It can also solve something work like making crystal word in advertising industry that ordinary polishing machine cannot do.

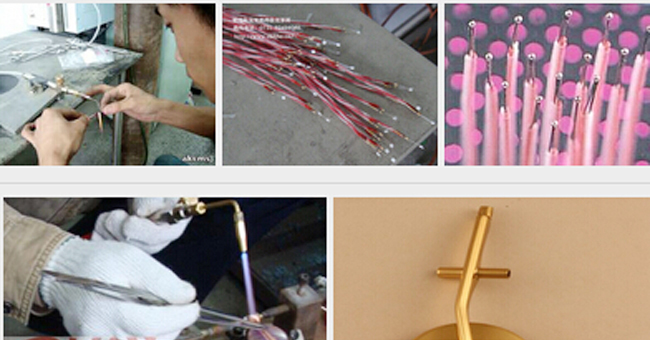

2. Jewelry Welding
For welding kinds of chain and string made of platinum, gold, silver, copper, stainless steel, etc.
For mending tiny sand holes on jewelry casting
For jewelry repairing (reforming, casting, welding)

APM-MS Series HHO Water Jewelry Welding Machine-Jewelry Tools and Supplies
When people buy jewelry, they mainly care about its fineness and craftwork. Welding technology is one of important process in the jewelry welding. And jewelry welding machine will be applied for the jewelry parts connection, jewelry inlaid, jewelry repair etc. HHO water jewelry welding machine is widely used in jewelry manufactures, stores or repairs. Today we mainly introduce you HHO oxy-hydrogen jewelry welding machine in the gold jewelry welding.

HHO oxyhydrogen jewelry welding machine’s features:
1. Hydrogen and oxygen is in the proportion of 2:1 after water electrolysis, which is also same combustion rate of hygrogen in oxygen gas. Compared with other gas fuels, it is not requied to add extra mixed oxygen gas when burning.
2. Oxyhydrogen gas is blue flame when burning. And there is no carbon dioxide emissions producing. Compared with oxygen acetylene, oxyhygrogen flame is concentrated, its burning fast, low flame temperature and the combustion heat value.
3. Water and some electric as fuels, it is low ciost, eco-friendly energy saving devices and safety, convenient for operation.

How to Operate the HHO Jewelry Welder Machine?
As usual, the left hands the HHO torch, the right hand holds the forceps, because the right hand is more flexible, it can better pick up the smaller material, and adjust position of the components to be welded. The flame temperature of different materials is different, and it is necessary to adjust the flame continuously to ensure the welding part not to be deformed or melted.


If you are looking for jewelry tools and supplier, HHO welding machines will be your first consideration.

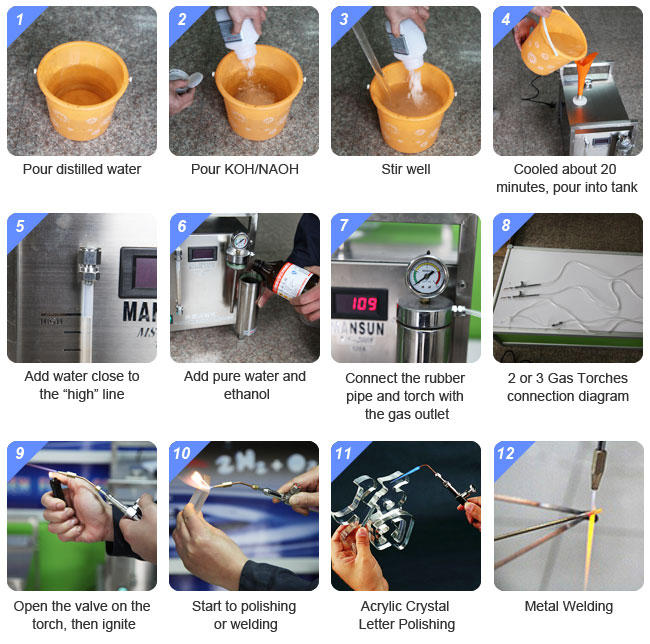

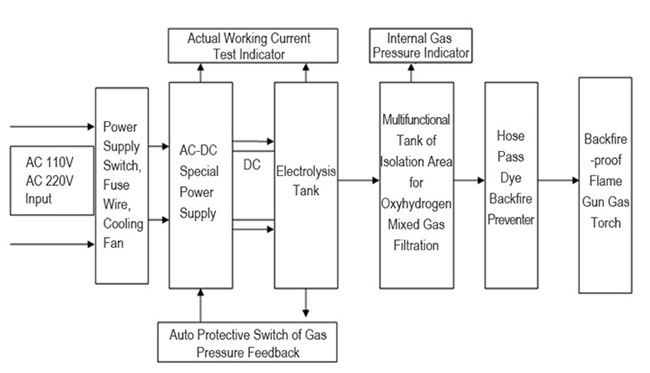

Process:

Quality Report:

Описание:
Плазменный полировщик с водородно-кислородной системой является высокотехнологичным продуктом водородной энергетики. Основываясь на принципе получения водорода из электролизованной воды, он сочетает в себе несколько изобретений и инновационную технологию. В ювелирной промышленности он известнен как "сварочный аппарат, работающий на воде" или "водородно-кислородный сварочный аппарат", в то время как в стекольной промышленности он известен как "огневой полировщик стекла".

Общий объём: 2000мл.
Прочность пламени: безостановочный  1 C = 0.5 мм сопло огня, или 1 Б = 0,4 мм, 1 А = 0.3 мм.


Преимущества:
• Нет копоти
• Небольшое пламя с высокой температурой
• Безопасный и простой в использовании
• Корпус из двойного стекла
, 3+3 слоя, нержавеющая сталь
• Привлекательная цена

Применение:
• Пайка ювелирных изделий из золота, серебра, меди, свинца, олова и т.д., например: шпильки, булавки, цепочки и пр.
• Полировка акрила. После полировки заготовка становится гладкой и блестящей.
